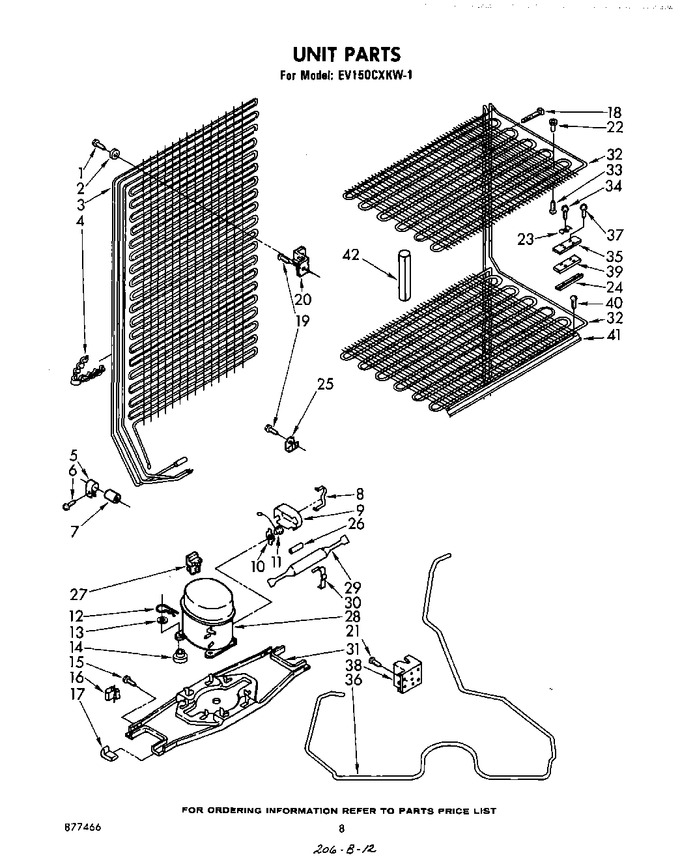

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	487888		Screw, 8 X 7/8 (2)		Appelez-nous	-
2	204349		Bumper (2)		Appelez-nous	-
3	940191		Condenser & Precooler Assembly		Appelez-nous	-
4	938232		Clip, Tube (2)		Appelez-nous	-
5	510716		Tube Clamp		Appelez-nous	-
6	WPW10141625		Screw, 8-32 X 1/2   (Replaces: 488197)				$ 19.04
7	938368		Dampener		Appelez-nous	-
8	549342		Strap		Appelez-nous	-
9	549336		Terminal Cover		Appelez-nous	-
10	549086		Overload Spring		Appelez-nous	-
11	941778		Overload		Appelez-nous	-
12	596712		Clip (4)		Appelez-nous	-
13	992950		Slotted Washer (4)		Appelez-nous	-
14	646499		Grommet (4)		Appelez-nous	-
15	489340		Screw, 5/16-18 X 5/8 (2)   (Replaces: 488683)		Appelez-nous	-
16	W10812038		Clip, Wire   (Replaces: 939054)		Appelez-nous	-
17	937000		Support Grommet (2)		Appelez-nous	-
18	851095		Strap (2)		Appelez-nous	-
19	WP489069		Screw, 8 X 1/2a   (Replaces: 488480)			Immediately	$ 7.07
20	937066		Bracket, Condenser (2)		Appelez-nous	-
21	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 12.62
22	941842		Spacer (3)		Appelez-nous	-
23	510614		Header Clamp Plate (2)		Appelez-nous	-
24	510754		Clip, Thermostat		Appelez-nous	-
25	935788		Clip, Condenser Mounting (2)		Appelez-nous	-
26	510446		Restrictor Sleeve		Appelez-nous	-
27	989646		Relay		Appelez-nous	-
27	989647		Relay (alternate)		Appelez-nous	-
28	482736		Compressor		Appelez-nous	-
29	W10843121		Drier   (Replaces: 978246)			Immediately	$ 47.31
30	547637		Clamp		Appelez-nous	-
31	935779		Unit, Frame		Appelez-nous	-
32	940179		Evaporator Assembly (shelf, 2nd)		Appelez-nous	-
32	940175		Evaporator Assembly (shelf, Top)		Appelez-nous	-
32	940184		Evaporator Assembly (shelf, 3rd)		Appelez-nous	-
32	940187		Evaporator Assembly (shelf, Bottom)		Appelez-nous	-
33	WP488163		Screw, 8 X 1a   (Replaces: 488163)				$ 6.79
34	488054		Screw, 8-32 X 7/16		Appelez-nous	-
35	987316		Shim, Thermostat Plate		Appelez-nous	-
36	940195		Heat Exchanger		Appelez-nous	-
37	488436		Screw, 8-32 X 5/8		Appelez-nous	-
38	937068		Box, Junction		Appelez-nous	-
39	851289		Plate, Thermostat		Appelez-nous	-
40	WP308685		Screw, 10-16 X 1/2 (6)   (Replaces: 487942)			Immediately	$ 7.08
40	489036		Screw (repair)		Appelez-nous	-
41	941795		Trim, Shelf		Appelez-nous	-
42	978030		Valve, Access (3/4``)				$ 117.64
42	978026		Valve, Access (5/16``)			Immediately	$ 115.28
42	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 19.48
42	978028		Valve, Access (1/2)		Appelez-nous	-
42	978029		Valve Access (5/8``)				$ 93.85
42	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 94.73
42	941384		Cover, Connecting Lines (top)		Appelez-nous	-
42	941447		Cover, Connecting Lines (center)		Appelez-nous	-
42	941448		Cover, Connecting Lines (bottom)		Appelez-nous	-
