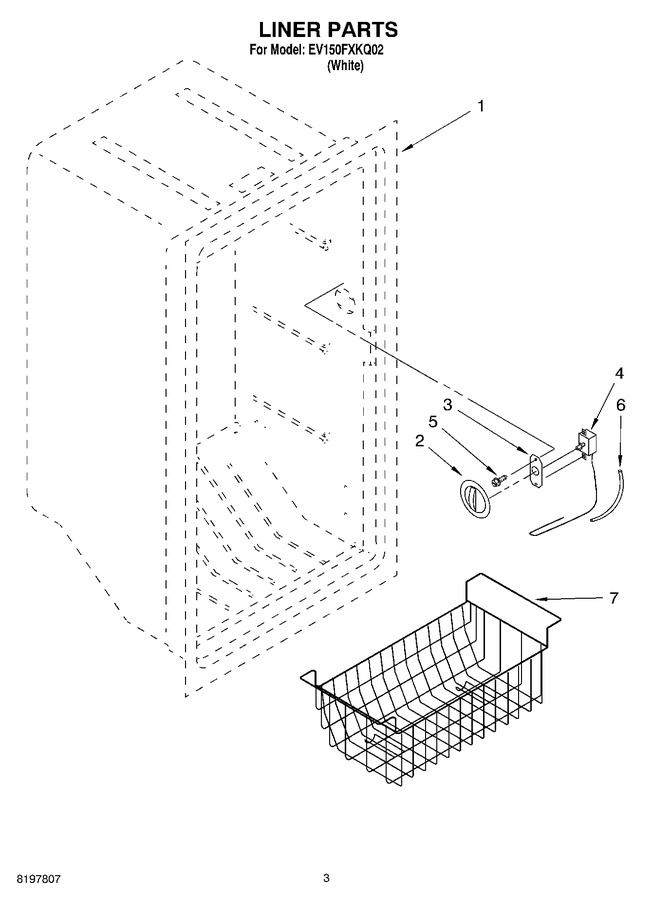

02 - Liner
03 - Unit
04 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | 4390619 | Control Knob |
|
- | |||||
| 3 | 1-81154 | Control Plate (Replaces: 4357041) |
|
$ 12.86 | |||||
| 4 | 4390620 | Thermostat |
|
- | |||||
| 5 | WPW10068250 | Screw (Replaces: 4357042) |
|
$ 3.66 | |||||
| 6 | WP2196003 | Tubing, Thermostat (Replaces: 4356800) |
|
$ 7.16 | |||||
| 7 | 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | |||||
| 7 | WP505587 | Sealer, Master (1 Qt.) (Replaces: 505587) |
|
Immediately | $ 156.56 | ||||
| 7 | 876370 | Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``) (Replaces: 978941) |
|
$ 208.40 | |||||
| 7 | WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 16.12 | |||||
| 7 | 4390621 | Basket, Wire |
|
- | |||||
| 7 | 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 34.39 | ||||
| 7 | 212643 | Sealer, Gum (4 Feet) |
|
Immediately | $ 73.92 | ||||
| 7 | WP503695 | Cork, Sealer 1/4 Pound) (Replaces: 503695) |
|
$ 106.15 | |||||
| 7 | 479502 | Tape, Vinyl 3/4 X 108``) |
|
$ 66.77 |
