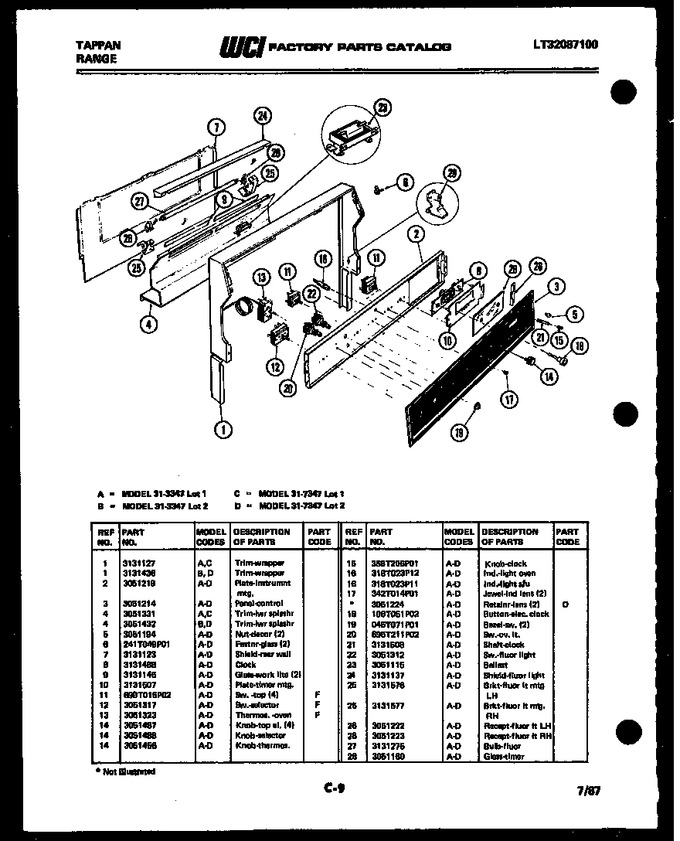

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3131127		Trim-wrapper		Appelez-nous	-
2	3051219		Plate-instrumnt Mtg.		Appelez-nous	-
3	3051214		Panel-control		Appelez-nous	-
4	3051331		Trim-lwr Splashr		Appelez-nous	-
4	3051432		Trim-lwr Splashr		Appelez-nous	-
5	3051194		Nut - Decor (2)		Appelez-nous	-
6	241T049P01		Fastnr-glass (2)		Appelez-nous	-
7	3131123		Shield, Rear Wall		Appelez-nous	-
8	3131488		Clock		Appelez-nous	-
9	3131145		Glass-work Lite (2)		Appelez-nous	-
10	3131507		Plate - Timer Mtg		Appelez-nous	-
11	699T015P02		Sw.-top (4)		Appelez-nous	-
12	3051317		Sw.-selector		Appelez-nous	-
13	3051323		Thermos.-oven		Appelez-nous	-
14	3051487		Knob-top El, (4)		Appelez-nous	-
14	3051488		Knob-selector		Appelez-nous	-
14	3051456		Knob-thermos.		Appelez-nous	-
15	358T206P01		Knob, Clock		Appelez-nous	-
16	318T023P12		Ind.-light Oven		Appelez-nous	-
16	318T023P11		Ind.-light S/u		Appelez-nous	-
17	342T014P01		Jewel-ind Lens (2)		Appelez-nous	-
18	106T051P02		Button-elec. Clock		Appelez-nous	-
19	045T071P01		Bezel, Switch		Appelez-nous	-
20	695T211P02		Sw.-ov. Lt.		Appelez-nous	-
21	3131508		Shaft-clock		Appelez-nous	-
22	3051312		Sw-fluor Light		Appelez-nous	-
23	3051115		Ballast		Appelez-nous	-
24	3131137		Shield - Fluor Light		Appelez-nous	-
25	3131576		Brkt-fluor Lt Mtg Lh		Appelez-nous	-
25	3131577		Brkt-fluor Lt Mtg Rh		Appelez-nous	-
26	3051222		Recept.-fluor Lt Lh		Appelez-nous	-
26	3051223		Recept.-fluor Lt Rh		Appelez-nous	-
27	3131275		Bulb-fluor				$ 49.40
28	3051160		Glass-timer		Appelez-nous	-
17A	3051224		Retainer-lens (2) (non-illustrated)		Appelez-nous	-
