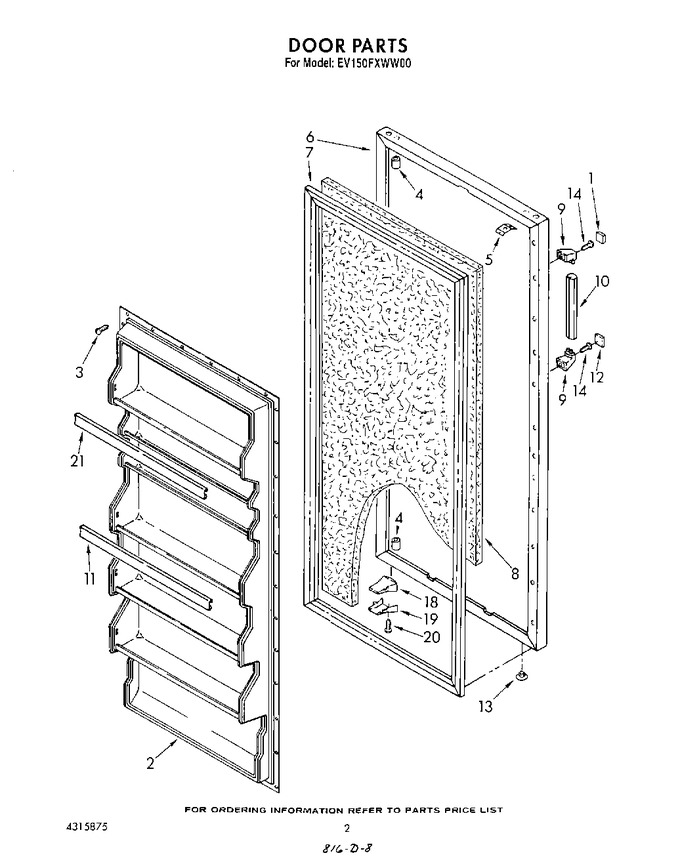

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1124593		Cover, Screw		Appelez-nous	-
2	1114885		Panel, Interior		Appelez-nous	-
3	WP489069		Screw, 7 X 1/2   (Replaces: 489101)			Immediately	$ 7.07
3	WPW10141645		Screw (repair)   (Replaces: 489084)				$ 6.90
4	509929		Cap, Hinge Sleeve (2)		Appelez-nous	-
5	WP939101		Anchor, Screw   (Replaces: 939101)				$ 6.75
6	1114884		Door, Exterior (almond (also Order Item 8))		Appelez-nous	-
6	1114883		Door, Exterior (white)		Appelez-nous	-
7	2188436A		Gasket, Magnetic   (Replaces: 1103561)				$ 310.54
8	876029		Foam Insulation (required When Replacing Exterior Door Panel)		Appelez-nous	-
9	1124591		End, Handle		Appelez-nous	-
10	1114871		Handle, Center		Appelez-nous	-
11	1104177		Trim, Door (3)		Appelez-nous	-
12	1106095		Cover, End		Appelez-nous	-
13	534927		Hole Plug		Appelez-nous	-
14	00489246		Screw, Torx (2)   (Replaces: 489246)				$ 36.28
18	1103638		Transmitter, Light		Appelez-nous	-
19	1103726		Cover, Light Transmitter		Appelez-nous	-
20	489132		Screw		Appelez-nous	-
21	WP279368		Cement, Insulation (1 Oz.)   (Replaces: 797403)			Immediately	$ 99.82
21	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 156.56
21	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.12
21	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
21	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
21	515393		Transformer, Stepdown (230-115 Volt)		Appelez-nous	-
21	1104176		Trim, Door Top		Appelez-nous	-
21	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
21	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
21	833938		Kit, Terminal Connector				$ 7.26
21	212643		Sealer, Gum (22 Pcs. 3/16`` X 7``)			Immediately	$ 73.92
21	876370		Kit, Insulation (5 Pcs. 3`` X 24`` X 48)   (Replaces: 479976)				$ 208.40
21	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
21	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 44.36
21	606755		Bag, Insulation (36-5/8`` X 46``)				$ 70.61
21	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
21	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
	511881		Xlacquer, Bright Aluminum (12 Oz. Spray Can)				$ 278.35
	LIT1127740		Tech Sheet		Appelez-nous	-
	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 799339)			Immediately	$ 51.34
	LIT1114904		Energy Guide		Appelez-nous	-
	LIT1114873		Guide, Use & Care		Appelez-nous	-
	1117510		Torx Key				$ 5.84
	350930		Xenamel, White (13 Oz. Spray Can)   (Replaces: 799343)			Immediately	$ 34.39
	LIT4315875		List, Parts		Appelez-nous	-
	350942		Xprimer, White (13 Oz. Spray Can)   (Replaces: 206922)				$ 80.69
	206925		Xleveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-
	LIT656493		Booklet, How To Freeze		Appelez-nous	-
	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 46.30

    View Diagram in Separate Window       Print Part List
