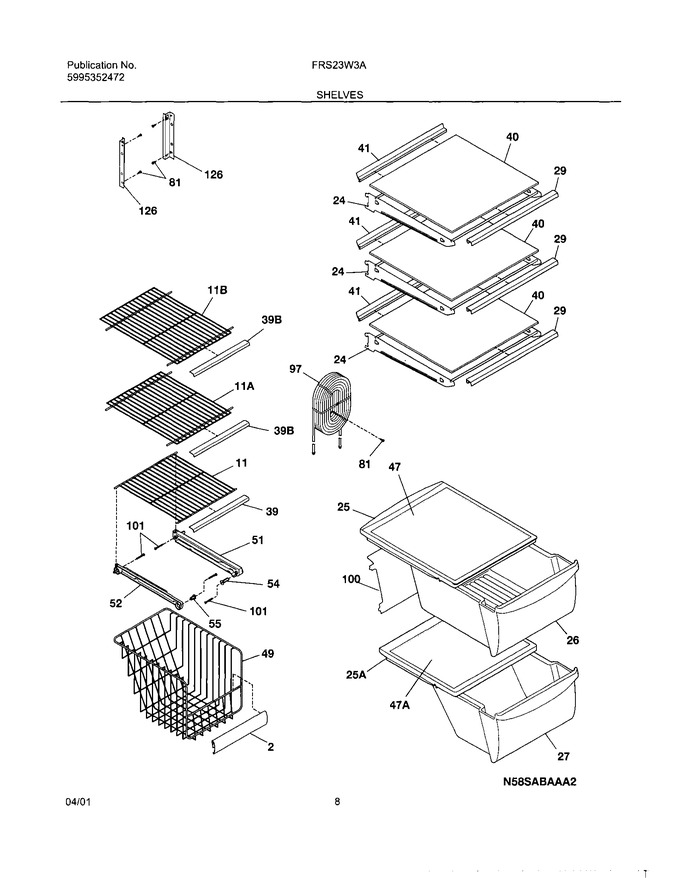

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	240434601		Trim-basket		Appelez-nous	-
11	241657601		Shelf-freezer,flip-up   (Replaces: 240338801)				$ 79.48
11	5304532465		Shelf-freezer,fixed Wire   (Replaces: 240338701)				$ 54.10
11	240338703		Shelf-freezer,fixed Wire		Appelez-nous	-
24	240373107		Frame-refr Shelf,cantilever				$ 156.71
25	240354602		Cover-crisper Pan,lower   (Replaces: 240354601)			Immediately	$ 88.46
25	240354502		Cover-crisper Pan,upper   (Replaces: 240354501)			Immediately	$ 100.02
26	240354723		Pan-crisper,upper   (Replaces: 240354706)			Immediately	$ 164.31
27	240354805		Pan-crisper,lower   (Replaces: 240354806)				$ 167.69
29	240357705		Trim-shelf,front				$ 54.81
39	240430701		Trim-shelf,front				$ 69.30
39	240430705		Trim-shelf,front				$ 60.43
40	240350622		Glass-shelf,refr Shelf ,(3)				$ 112.60
41	240357805		Trim-shelf,rear				$ 35.28
47	240350613		Insert-pan Cover,glass   (Replaces: 240350631)				$ 123.62
47	240350614		Insert-pan Cover,glass				$ 145.60
49	240338401		Basket-sliding		Appelez-nous	-
51	240343001		Hanger-basket,rh		Appelez-nous	-
52	240343101		Hanger-basket,lh		Appelez-nous	-
54	240351901		Plug-hanger,right Hand		Appelez-nous	-
55	240352001		Plug-hanger,left Hand		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
97	240453001		Water Tank Assy,with Tubes		Appelez-nous	-
100	240326303		Cover-water Tank   (Replaces: 240326301)				$ 61.28
101	218493101		Screw,hex Washer Head `8-18ab X 1-3/4   (Replaces: 218493100)				$ 13.46
126	218867401		Channel,auger Mtg ,lh		Appelez-nous	-
126	218867402		Channel`auger Mtg ,rh		Appelez-nous	-
NI	215328300		Clip-shelf				$ 14.02
