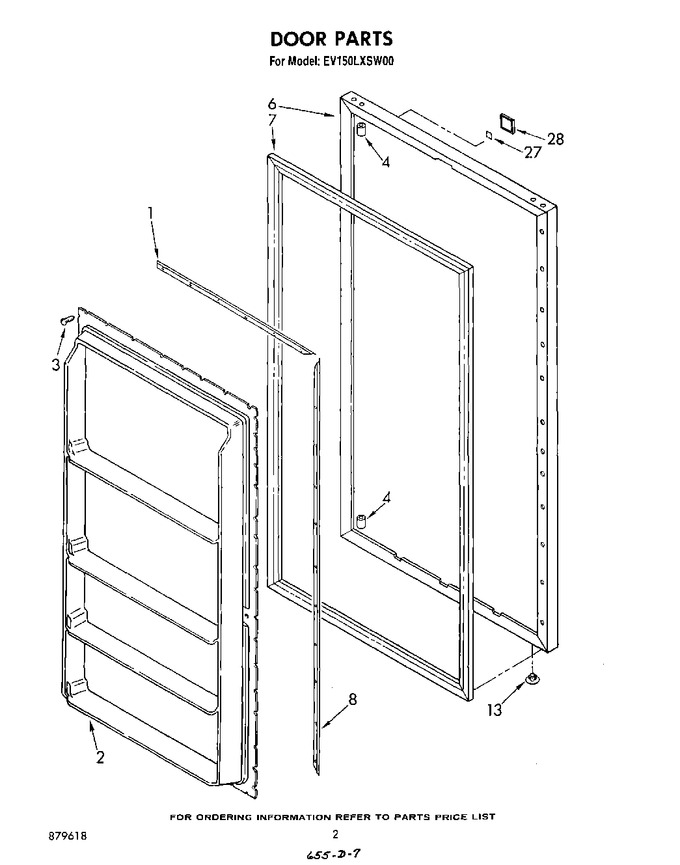

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 935759 | Retainer, Door Gasket (2) |
|
- | |||||
| 2 | 941790 | Panel, Interior |
|
- | |||||
| 3 | WP489069 | Screw, 7 X 1/2 (Replaces: 489101) |
|
Immediately | $ 7.07 | ||||
| 3 | WP681414 | Screw ((repair)) (Replaces: 488552) |
|
Immediately | $ 7.07 | ||||
| 4 | 509929 | Cap, Hinge Sleeve (2) |
|
- | |||||
| 6 | 941788 | Door, Exterior (white) |
|
- | |||||
| 7 | 2188436A | Gasket, Magnetic (Replaces: 1104154) |
|
$ 310.54 | |||||
| 8 | 940161 | Retainer, Door Gasket Side (2) |
|
- | |||||
| 13 | 534927 | Hole Plug (white) |
|
- | |||||
| 27 | 991259 | Tape Strip |
|
- | |||||
| 28 | 799832 | Kit, Porcelain Repair |
|
- | |||||
| 28 | WP505587 | Sealer, Mastic (1 Qt.). (Replaces: 505587) |
|
Immediately | $ 156.56 | ||||
| 28 | 799340 | Enamel, Black (1 Qt. Uncut) |
|
- | |||||
| 28 | 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | |||||
| 28 | 833938 | Kit, Terminal Connector |
|
$ 7.26 | |||||
| 28 | 212643 | Sealer, Gum (22 Pcs. 3/16`` X 7``) |
|
Immediately | $ 73.92 | ||||
| 28 | 876370 | Kit, Insulation (5 Pcs. 3`` X 24`` X 48) (Replaces: 479976) |
|
$ 208.40 | |||||
| 28 | 876029 | Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``) |
|
- | |||||
| 28 | 511873 | Paint, Touch-up 1/2 Oz. (white Porcelain) |
|
$ 44.36 | |||||
| 28 | 606755 | Bag, Insulation (36-5/8`` X 46``) |
|
$ 70.61 | |||||
| 28 | 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | ||||
| 28 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | ||||
| 28 | 515393 | Transformer, Stepdown (230-115 Volt) |
|
- | |||||
| 28 | 942669 | Nameplate |
|
- | |||||
| 28 | WP279368 | Cement, Insulation (1 Oz.) (Replaces: 797403) |
|
Immediately | $ 99.82 | ||||
| 28 | 799833 | Kit, Evaporator Repair (aluminum Epoxy) |
|
- | |||||
| LIT879618 | List, Parts |
|
- | ||||||
| 350942 | Xprimer, White (12 Oz. Spray Can) (Replaces: 206922) |
|
$ 80.69 | ||||||
| 206925 | Xleveler, Enamel (12 Oz. Spray Can) |
|
- | ||||||
| 285006 | Enamel, Black (12 Oz. Spray Can) (Replaces: 799339) |
|
Immediately | $ 51.34 | |||||
| 350930 | Xenamel, White (12 Oz. Spray Can) (Replaces: 799343) |
|
Immediately | $ 34.39 | |||||
| LIT1104169 | Energy Guide |
|
- | ||||||
| LIT1104167 | Guide, Use & Care |
|
- | ||||||
| LIT946601 | Tech Sheet |
|
- | ||||||
| LIT656493 | Booklet, How To Freeze |
|
- |
