SELECT A DIAGRAM

01 - Door, Lit/optional


02 - Cabinet


03 - Liner

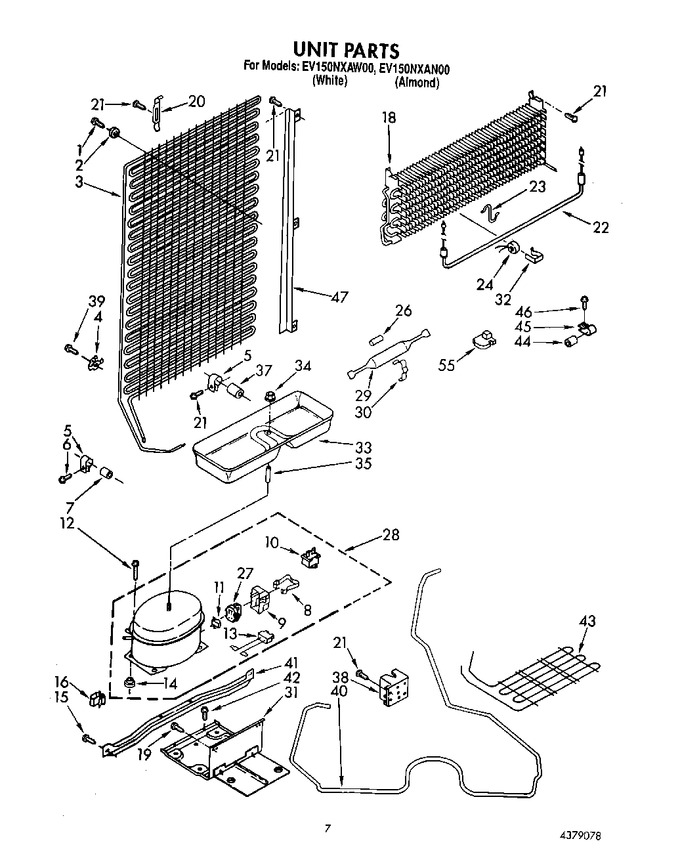

04 - Shelf


05 - Unit


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	487888		Screw, 8 X 7/8 (2)		Appelez-nous	-
2	204349		Bumper (2)		Appelez-nous	-
3	2151126		Condenser Assembly		Appelez-nous	-
4	510414		Tube Clip (2)		Appelez-nous	-
5	510716		Tube Clamp		Appelez-nous	-
6	WPW10141625		Screw, 8-32 X 1/2   (Replaces: 488197)				$ 19.04
7	1108064		Dampener		Appelez-nous	-
8	938384		Strap		Appelez-nous	-
9	1108115		Terminal Cover		Appelez-nous	-
10	2154565		Running Capacitor		Appelez-nous	-
11	4388953		Overload   (Replaces: 2154761)				$ 149.41
12	876811		Screw, 1/4-28 (4)   (Replaces: 489373)				$ 6.68
13	WP2172890		Wire Asm   (Replaces: 1127675)				$ 7.29
14	876811		Grommet (4)   (Replaces: 1100826)				$ 6.68
15	489340		Screw, 5/16-18 X 5/8 (2)   (Replaces: 488683)		Appelez-nous	-
16	W10812038		Clip, Wire   (Replaces: 939054)		Appelez-nous	-
18	1100424		Evaporator		Appelez-nous	-
19	WP965173		Screw   (Replaces: 487248)			Immediately	$ 9.65
20	2150664		Condenser Bracket (6)		Appelez-nous	-
21	WP489478		Screw, 8 X 1/2   (Replaces: 489242)				$ 6.98
22	1100434		Heater, Defrost		Appelez-nous	-
23	851358		Support, Heater		Appelez-nous	-
24	WP4387499		Defrost, Bi-metal   (Replaces: 1100435)				$ 108.77
26	510446		Restrictor Sleeve		Appelez-nous	-
27	WP2262181		Relay   (Replaces: 1108143)				$ 110.39
28	2154803		Compressor, (includes Items 8, 9, 10, 11, 13, 14, & 27)		Appelez-nous	-
28	876765		Tube Kit			Immediately	$ 77.70
28	482801		Mounting Kit				$ 119.50
29	W10843121		Drier   (Replaces: 850037)			Immediately	$ 47.31
30	1127590		Clamp, Dryer		Appelez-nous	-
31	1118879		Plate Assembly, Unit Mounting		Appelez-nous	-
32	513584		Clamp		Appelez-nous	-
33	935781		Tray, Evaporator		Appelez-nous	-
34	285002		Nut   (Replaces: 489153)				$ 11.02
35	938275		Spacer		Appelez-nous	-
37	1118888		Dampener		Appelez-nous	-
38	1108078		Junction Box		Appelez-nous	-
39	WP965173		Screw 8 X 3/8   (Replaces: 487415)			Immediately	$ 9.65
40	1127737		Heat Exchanger		Appelez-nous	-
41	945448		Mounting Rail		Appelez-nous	-
42	WP965173		Screw   (Replaces: 487248)			Immediately	$ 9.65
43	2151191		Precooler		Appelez-nous	-
44	1118889		Dampener (2)		Appelez-nous	-
45	1115557		Clamp (2)		Appelez-nous	-
46	WP489128		Screw, 8-32 X 3/4   (Replaces: 488500)				$ 9.79
47	2150554		Channel, Condenser (left)		Appelez-nous	-
47	2150553		Channel, Condenser (right)		Appelez-nous	-
55	978030		Valve, Access (3/4``)				$ 117.64
55	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 19.48
55	978028		Valve, Access (1/2)		Appelez-nous	-
55	978029		Valve Access (5/8``)				$ 93.85
55	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 94.73
55	2150621		Side Block, Evaporator (right)		Appelez-nous	-
55	2150618		Side Block, Evaporator (left)		Appelez-nous	-
55	876764		Valve, Access(3/16``)			Immediately	$ 82.22
55	978026		Valve, Access (5/16``)			Immediately	$ 115.28

    View Diagram in Separate Window       Print Part List
