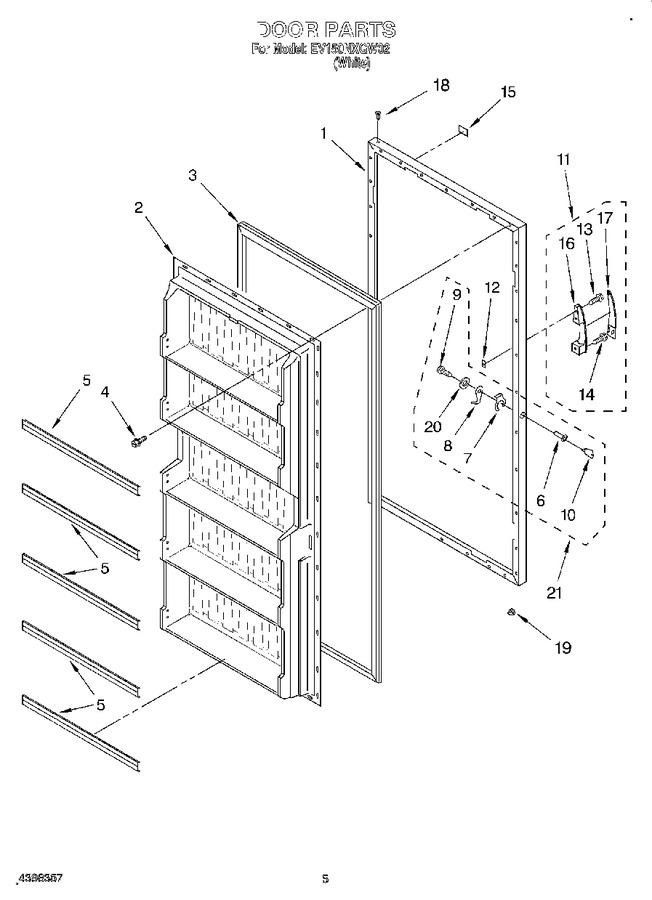

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4357249		Exterior Door (includes Insulation)		Appelez-nous	-
2	4390609		Interior Panel		Appelez-nous	-
3	WP4357099		Door Gasket   (Replaces: 4357099)				$ 290.47
4	4390598		Screw   (Replaces: 4357290)				$ 18.89
5	4390608		Trim Shelf				$ 45.37
6	4357145		Lock, Body   (Replaces: 4356839)				$ 23.82
7	4356842		Spring, Clip Mounting				$ 12.24
8	4357289		Lock, Bolt				$ 22.23
9	WP489478		Screw, Lock Bolt   (Replaces: 4356843)				$ 6.98
10	WP4356840		Key   (Replaces: 4356840)				$ 9.67
11	4390551		Handle Kit (includes Items 13, 14, 16 & 17)		Appelez-nous	-
12	4356812		Anchor, Screw		Appelez-nous	-
13	W10709795		Screw   (Replaces: 4390511)				$ 11.82
14	WP3-24004-109		Screw   (Replaces: 4357223)				$ 7.25
15	4356940		Nameplate		Appelez-nous	-
16	4356895		Handle		Appelez-nous	-
17	4357036		Insert, Handle		Appelez-nous	-
18	4356811		Bushing, Hinge		Appelez-nous	-
19	3-24898-007		Vent Plug   (Replaces: 4357067)				$ 9.72
20	4356992		Washer		Appelez-nous	-
21	4357145		Lock Assembly (includes Items 6, 7, 8, 9, 10 & 20)				$ 23.82
