SELECT A DIAGRAM

02 - Door , Lit/optional


03 - Cabinet


04 - Liner


05 - Shelf


06 - Unit


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	487888		Screw, 8 X 7/8 (2)		Appelez-nous	-
2	204349		Bumper (2)		Appelez-nous	-
3	1100420		Condenser & Precooler Assembly		Appelez-nous	-
4	938232		Clip, Tube (2)		Appelez-nous	-
5	510716		Tube Clamp		Appelez-nous	-
6	WPW10141625		Screw, 8-32 X 1/2   (Replaces: 488197)				$ 19.04
7	1108064		Dampener		Appelez-nous	-
8	938384		Strap (used W/original Compressor)		Appelez-nous	-
9	1108144		Terminal Cover (used W/original Compressor)		Appelez-nous	-
11	1105163		Overload (used W/original Compressor)		Appelez-nous	-
12	876811		Screw, 1/4-28 (4)   (Replaces: 489116)				$ 6.68
14	876811		Grommet (4)   (Replaces: 1100826)				$ 6.68
15	489340		Screw, 5/16-18 X 5/8 (2)   (Replaces: 488683)		Appelez-nous	-
16	W10812038		Clip, Wire   (Replaces: 939054)		Appelez-nous	-
18	1100424		Evaporator		Appelez-nous	-
19	WP489069		Screw, 8 X 1/2a   (Replaces: 488480)			Immediately	$ 7.07
20	510721		Condenser Bracket (2)		Appelez-nous	-
21	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 12.62
22	1100434		Heater, Defrost		Appelez-nous	-
23	851358		Support, Heater		Appelez-nous	-
24	WP4387499		Defrost, Bi-metal   (Replaces: 1100435)				$ 108.77
25	935788		Clip, Condenser Mounting (2)		Appelez-nous	-
26	510446		Restrictor Sleeve		Appelez-nous	-
27	946615		Relay (used W/original Compressor)		Appelez-nous	-
28	482981		Compressor (includes Items 47, 48, 49, 50, 51, 52 & 53) (also Order 876765 Tube Kit) (also Order 4828		Appelez-nous	-
29	W10843121		Drier   (Replaces: 850037)			Immediately	$ 47.31
30	547637		Clamp		Appelez-nous	-
31	942860		Unit Mounting Plate		Appelez-nous	-
32	513584		Clamp		Appelez-nous	-
33	935781		Tray, Evaporator		Appelez-nous	-
34	285002		Nut   (Replaces: 489153)				$ 11.02
35	938275		Spacer		Appelez-nous	-
37	945593		Dampener		Appelez-nous	-
38	1108078		Junction Box		Appelez-nous	-
40	1100429		Heat Exchanger		Appelez-nous	-
41	945448		Mounting Rail		Appelez-nous	-
42	WP965173		Screw   (Replaces: 487248)			Immediately	$ 9.65
42	487883		Repair		Appelez-nous	-
47	938384		Strap (used W/service Compressor)		Appelez-nous	-
48	1105015		Cover, Terminal (used On Service Compressor)		Appelez-nous	-
49	482996		Capacitor (used W/service Compressor)		Appelez-nous	-
50	1105077		Overload (used W/service Compressor)		Appelez-nous	-
51	1100806		Relay (used W/service Compressor)		Appelez-nous	-
52	489142		Nut		Appelez-nous	-
53	978030		Valve, Access (3/4``)				$ 117.64
53	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 19.48
53	978028		Valve, Access (1/2)		Appelez-nous	-
53	978029		Valve Access (5/8``)				$ 93.85
53	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 94.73
53	489143		Washer		Appelez-nous	-
53	876764		Valve, Access(3/16``)			Immediately	$ 82.22
53	978026		Valve, Access (5/16``)			Immediately	$ 115.28

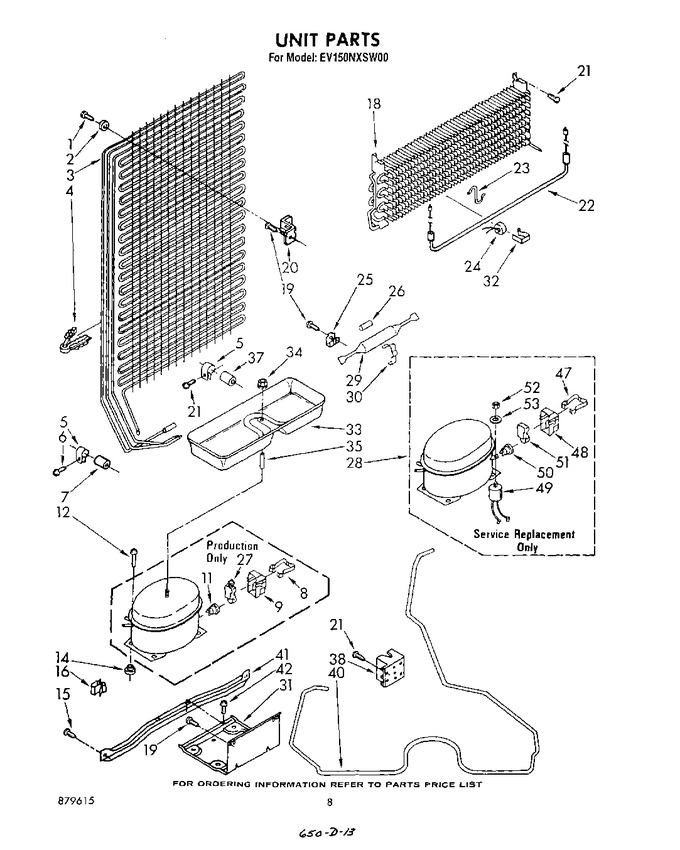

    View Diagram in Separate Window       Print Part List
