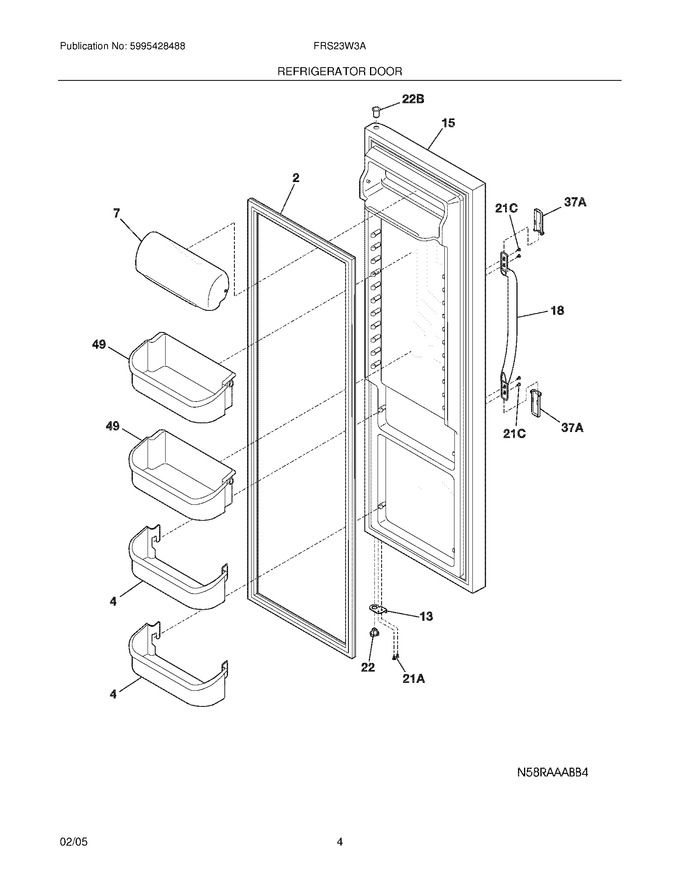

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	240363701		Bin-door,2-liter			Immediately	$ 59.42
7	240338313		Door,dairy ,clear   (Replaces: 240338303)			Immediately	$ 80.80
13	5303918455		Door Stop,bisque,ref   (Replaces: 240537103)				$ 142.04
15	240451915		Door-refr,bisque ,complete Assy		Appelez-nous	-
18	218762706		Handle-door,bisque				$ 158.76
22	240328201		Bearing-hinge(ref),closer			Immediately	$ 17.72
49	240324501		Bin-door,gallon			Immediately	$ 69.06
21A	5304455650		Screw,hex Washer Head ,8-15a X 0.625 ,low Profile   (Replaces: 5308016566)				$ 14.18
21C	218781101		Screw,pan Head ,8-18 X 0.625   (Replaces: 218781100)				$ 15.60
22B	240328401		Bearing-hinge(ref),natural ,upper				$ 12.97
37A	218676004		Band-decorative,satin Aluminum ,handle Trim				$ 57.60
37A	215870633		Trim-handle,2.47`` ,bisque ,w/satin Al Band				$ 56.81
F2	241786015		Gasket-refr Door,white ,magnetic   (Replaces: 240390603)			Immediately	$ 94.66

    View Diagram in Separate Window       Print Part List
