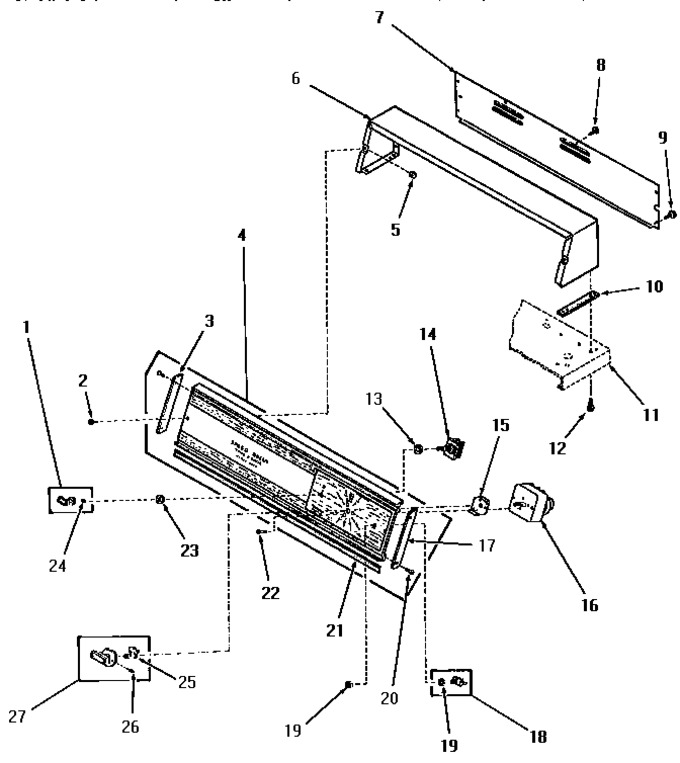

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 24291 | Assy,knob |
|
- | |||||
| 2 | 25232 | Screw,8ab-18x7/8 Oval |
|
- | |||||
| 3 | 25072 | End Cap, Left |
|
$ 32.09 | |||||
| 4 | Y54971 | Control Panel |
|
- | |||||
| 5 | 54038 | Nut,speed U-type |
|
- | |||||
| 6 | 52530W | Control Hood, White |
|
- | |||||
| 6 | 52530A | Control Hood, Avocado |
|
- | |||||
| 6 | 52530H | Control Hood, Harvest Gold |
|
- | |||||
| 7 | 52539GR | Control Hood Rear Cover, Gray |
|
- | |||||
| 8 | WP3177991 | Screw, 8b-18 X 1/4 He (Replaces: 23222) |
|
Immediately | $ 6.47 | ||||
| 9 | 25724 | Hex Head Screw |
|
- | |||||
| 10 | 23028 | Gasket,control Box End |
|
- | |||||
| 11 | Y00000000 | See Note Cabinet Top |
|
- | |||||
| 12 | WP90767 | Screw,8b-18 X 3/8 Ind (Replaces: 23962) |
|
Immediately | $ 7.04 | ||||
| 13 | 91176 | Lockwasher,3/8 Intshkp |
|
$ 1.44 | |||||
| 14 | 53380 | Temperature Selector Switch |
|
- | |||||
| 15 | 25966 | Spacer,timer |
|
- | |||||
| 16 | 52594 | Timer |
|
- | |||||
| 17 | 25073 | End Cap, Right |
|
$ 38.89 | |||||
| 18 | 55882 | Assy, Switch (Replaces: 53768) |
|
Immediately | $ 61.79 | ||||
| 19 | Sub. To D513506 | Nut,hex 15/32-32 (Replaces: 52947) |
|
- | |||||
| 20 | Sub. To D512973 | Screw, 8b-16x5/8 Tap (Replaces: 52864) |
|
- | |||||
| 21 | Y0053880 | Actuator, Water |
|
- | |||||
| 22 | Y0054441 | Nameplate, Handle |
|
- | |||||
| 23 | 24205 | Nut,knurled 3/8-24 |
|
$ 244.00 | |||||
| 24 | 23392 | Clip For 26816 Knob |
|
- | |||||
| 25 | 24283 | Indicator,timer Knob |
|
- | |||||
| 26 | 20310 | Screw,8-32 X 1/4 Hex S |
|
- | |||||
| 27 | 24290 | Assy,knob-timer |
|
- |
