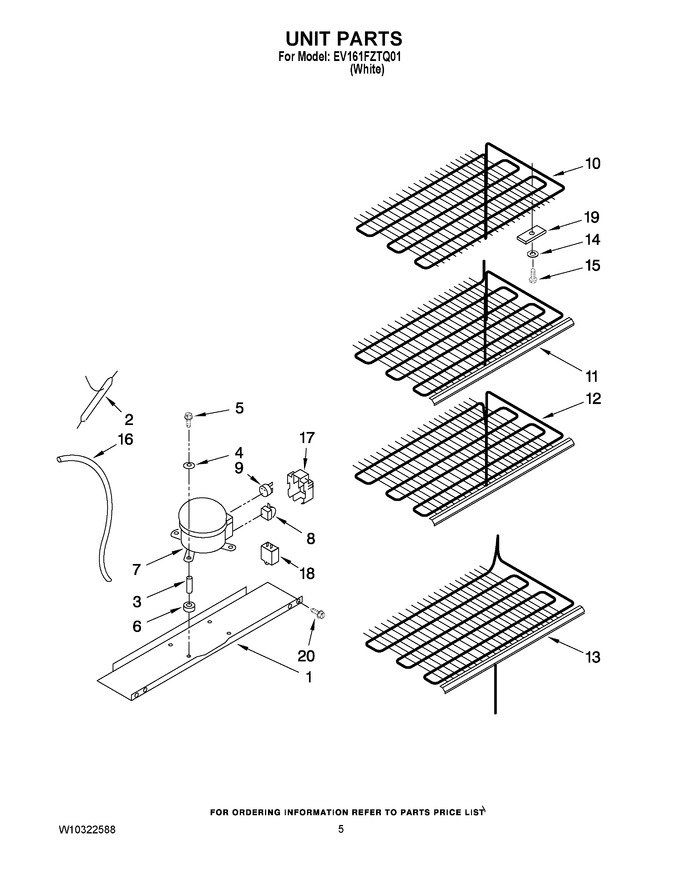

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10260544		Pan, Compressor Mounting		Appelez-nous	-
2	4001		Drier   (Replaces: 4357299)			Immediately	$ 9.64
3	4356846		Sleeve, Grommet				$ 12.86
4	4356847		Washer		Appelez-nous	-
5	8210220		Screw, Compressor Mounting		Appelez-nous	-
6	4356335		Grommet		Appelez-nous	-
7	W10309989		Compressor (includes Items 6, 8, 9, & 17)   (Replaces: 4-32972-141)			Immediately	$ 591.26
8	WPW10189190		Relay   (Replaces: 4357156)			Immediately	$ 118.16
9	2-34286-039		Overload				$ 155.37
10	8210398		Evaporator, Top		Appelez-nous	-
11	8210304		Evaporator Shelf		Appelez-nous	-
12	8210305		Evaporator Shelf		Appelez-nous	-
13	4-82197-002		Evaporator Shelf   (Replaces: 8210306)		Appelez-nous	-
14	4357057		Washer		Appelez-nous	-
15	WP3-24004-109		Screw, Evaporator Mounting   (Replaces: 4357223)				$ 7.25
16	4390881		Heat Exchanger		Appelez-nous	-
17	4356777		Cover		Appelez-nous	-
18	8210273		Capacitor				$ 55.86
19	4356854		Clamp		Appelez-nous	-
20	WP3-24838-048		Screw   (Replaces: 4356820)				$ 7.00
NI	N/P		Refrigerant Charge (6.9 Oz. R-134a))		Appelez-nous	-
