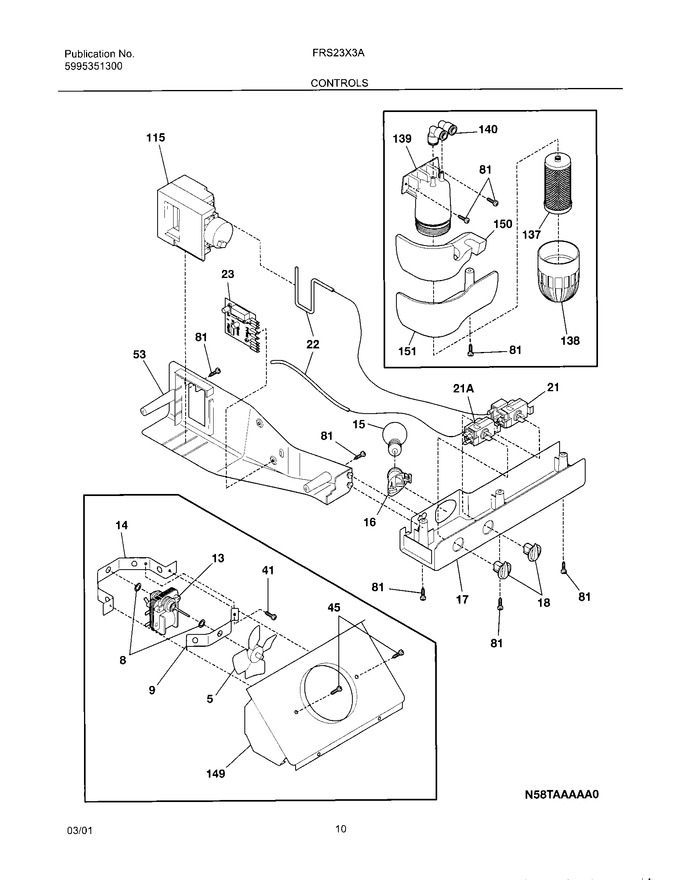

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 5 | 5308000010 | Fan Blade,red ,evaporator Fan |
|
Immediately | $ 49.03 | ||||
| 8 | 5300157666 | Bushing - Motor Mtg, (2) |
|
- | |||||
| 9 | 5303292396 | Bracket-motor Mtg,front |
|
$ 72.30 | |||||
| 13 | 5303918549 | Motor-evap Fan (Replaces: 240315801) |
|
Immediately | $ 88.16 | ||||
| 14 | 240438003 | Bracket-motor Mtg,rear (Replaces: 5303292397) |
|
$ 17.44 | |||||
| 15 | 5303001179 | Light Bulb/lamp,40 W |
|
- | |||||
| 16 | 218906802 | Socket-light/lamp (Replaces: 218906801) |
|
$ 17.72 | |||||
| 17 | 240374001 | Control Box |
|
- | |||||
| 18 | 240360801 | Knob-control |
|
$ 43.95 | |||||
| 21 | 5304496561 | Control-temperature,frzr Section (Replaces: 5304421067) |
|
Immediately | $ 141.37 | ||||
| 21 | 240375902 | Control-temperature,refr Section |
|
- | |||||
| 22 | 218660702 | Tube-insulator |
|
- | |||||
| 23 | 215846602 | Timer-defrost,60 Hz ,120 V ,8 Hour/30 Min |
|
Immediately | $ 28.20 | ||||
| 41 | 5308000039 | Screw |
|
- | |||||
| 45 | 5304455651 | Screw (Replaces: 5303001343) |
|
$ 14.41 | |||||
| 53 | 240369501 | Box-control |
|
$ 78.37 | |||||
| 81 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 115 | 240347901 | Damper Assy,w/seal |
|
- | |||||
| 115 | 5304421593 | Switch-micro,single Pole ,double Throw ,damper Assy |
|
- | |||||
| 137 | WFCB | Filter-water, Carbon With O-ring (Replaces: 218904602) |
|
Immediately | $ 66.15 | ||||
| 138 | 240370201 | Cup-water Filter |
|
- | |||||
| 139 | 240369901 | Housing-wtr Filter |
|
- | |||||
| 140 | 240545201 | Elbow-water Tube (Replaces: 240388601) |
|
$ 73.71 | |||||
| 149 | 240331601 | Shroud-fan Orfice |
|
- | |||||
| 150 | 240394102 | Insulation-water Filter Cover |
|
$ 51.40 | |||||
| 151 | 240376002 | Cover-water Filter |
|
$ 55.91 | |||||
| NI | 3205266 | Edge Protector, Wiring Harness |
|
$ 80.09 | |||||
| NI | 215474201 | Washer,``slinger`` ,nylon ,evap Fan Shaft |
|
Immediately | $ 18.43 | ||||
| NI | 5304455649 | Screw (Replaces: 5303001259) |
|
$ 17.01 | |||||
| NI | 5303209814 | Nut,``u`` Type ,8-15(a) ,fan Mtr Mtg |
|
- | |||||
| NI | 218904301 | O-ring,wtr Filter Cup |
|
$ 13.46 | |||||
| NI | 5308002748 | Screw |
|
- | |||||
| NI | 240425701 | Harness-wiring,control Box |
|
- |
