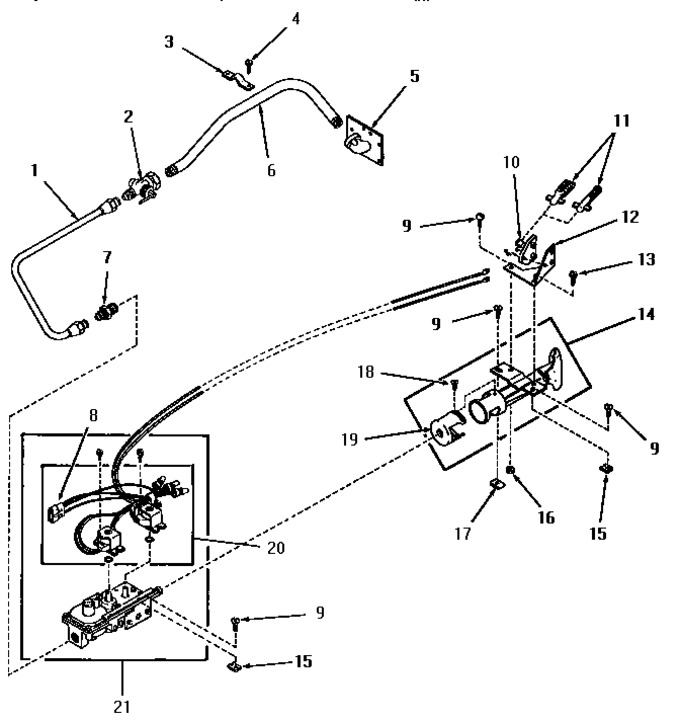

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	54407		Assy,inlet Gas Tube		Appelez-nous	-
2	Y51058		Valve		Appelez-nous	-
3	51828		Gas Pipe Clamp		Appelez-nous	-
4	WP27001200		Hex Head Scrw   (Replaces: 25723)				$ 6.91
5	51842		Pipe Support		Appelez-nous	-
6	51775		Inlet Gas Pipe		Appelez-nous	-
7	54408		Connector,male		Appelez-nous	-
8	55452		Plug		Appelez-nous	-
9	20267		Screw,10-24 X 3/8 Round		Appelez-nous	-
10	55435		Bracket,igniter		Appelez-nous	-
11	D510099		Igniter,80 Volt   (Replaces: 55438)				$ 45.40
12	55434		Bracket		Appelez-nous	-
13	51784		Screw,10b-16 X 1/2 Hex		Appelez-nous	-
14	53011		Tube,burner		Appelez-nous	-
15	21747		Nut,speed		Appelez-nous	-
16	03673		Nut		Appelez-nous	-
17	20249		Nut,speed 10-24		Appelez-nous	-
18	53006		Round Head Screw		Appelez-nous	-
19	53007		Shutter,air		Appelez-nous	-
20	55971A		Coil,burner		Appelez-nous	-
21	55971		Valve,gas		Appelez-nous	-
NI	52893		Sticker		Appelez-nous	-
NI	53255		Assy,conversion Kit		Appelez-nous	-
NI	53408		Label,change-over		Appelez-nous	-
NI	56327		Sticker		Appelez-nous	-
NI	56326		Assy,conversion Kit		Appelez-nous	-
NI	53556		Sticker,conversion		Appelez-nous	-
NI	51211		Orifice,lp No.55 Drill		Appelez-nous	-
NI	53390		Plug,block-open		Appelez-nous	-
NI	55753		Valve Converted Sticker		Appelez-nous	-
NI	50326		Orifice,ng		Appelez-nous	-
NI	52894		Sticker		Appelez-nous	-
NI	53952		Screw,vent		Appelez-nous	-
