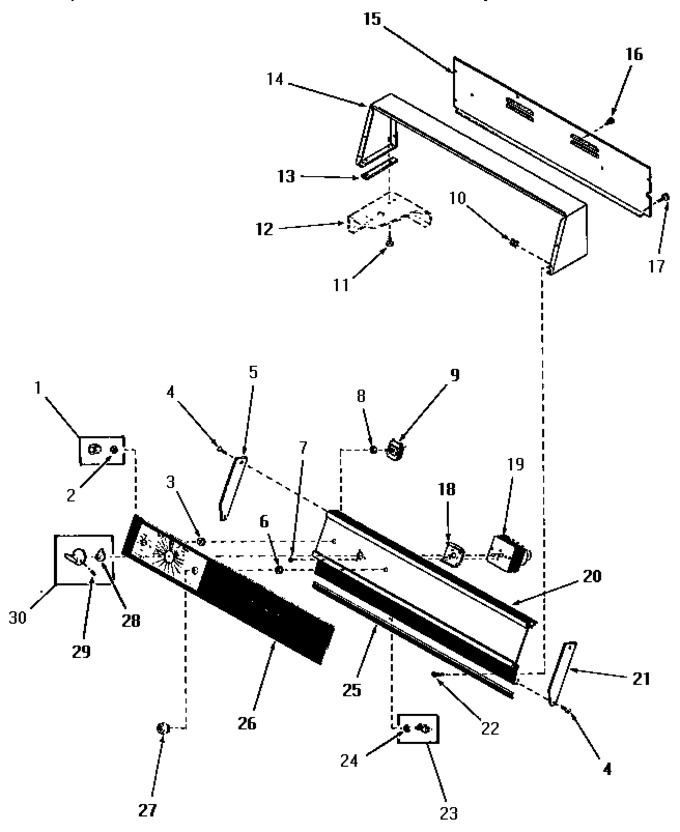

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 23128 | Knob,control |
|
- | |||||
| 2 | 22244 | Clip,c Xreplace |
|
- | |||||
| 3 | 24391 | Knurled Nut |
|
- | |||||
| 4 | Sub. To D512973 | Screw, 8b-16x5/8 Tap (Replaces: 52864) |
|
- | |||||
| 5 | 26339 | End Cap, Left |
|
- | |||||
| 6 | 23406 | Knurled Nut |
|
- | |||||
| 7 | 20272 | Phillips Head Screw |
|
- | |||||
| 8 | 91176 | Lockwasher,3/8 Intshkp |
|
$ 1.44 | |||||
| 9 | 52623 | Switch,fabric Selector |
|
- | |||||
| 10 | 54038 | Nut,speed U-type |
|
- | |||||
| 11 | WP90767 | Screw,8b-18 X 3/8 Ind (Replaces: 23962) |
|
Immediately | $ 7.04 | ||||
| 12 | Y00000000 | See Note Cabinet Top |
|
- | |||||
| 13 | 23028 | Gasket,control Box End |
|
- | |||||
| 14 | 54526A | Control Hood, Avocado |
|
- | |||||
| 14 | 54526W | Control Hood, White |
|
- | |||||
| 14 | 54526H | Control Hood, Harvest Gold |
|
- | |||||
| 15 | 54530GR | Control Hood Rear Cover, Gray |
|
- | |||||
| 16 | WP3177991 | Screw, 8b-18 X 1/4 He (Replaces: 23222) |
|
Immediately | $ 6.47 | ||||
| 17 | 25724 | Hex Head Screw |
|
- | |||||
| 18 | 26345 | Spacer |
|
- | |||||
| 19 | 52610 | Timer |
|
- | |||||
| 20 | Y0055283 | Button, Door |
|
- | |||||
| 21 | 26338 | End Cap, Right |
|
- | |||||
| 22 | 25232 | Screw,8ab-18x7/8 Oval |
|
- | |||||
| 23 | 53563 | Switch,door Release |
|
- | |||||
| 24 | Sub. To D513506 | Nut,hex 15/32-32 (Replaces: 52947) |
|
- | |||||
| 25 | 55287 | Gasket |
|
- | |||||
| 26 | 0055282 | Block, Fuse |
|
- | |||||
| 27 | 23130 | Switch Collar |
|
- | |||||
| 28 | 24857 | Indicator |
|
- | |||||
| 29 | 25285 | Setscrew |
|
- | |||||
| 30 | 24858 | Assy,knob-timer |
|
- |
