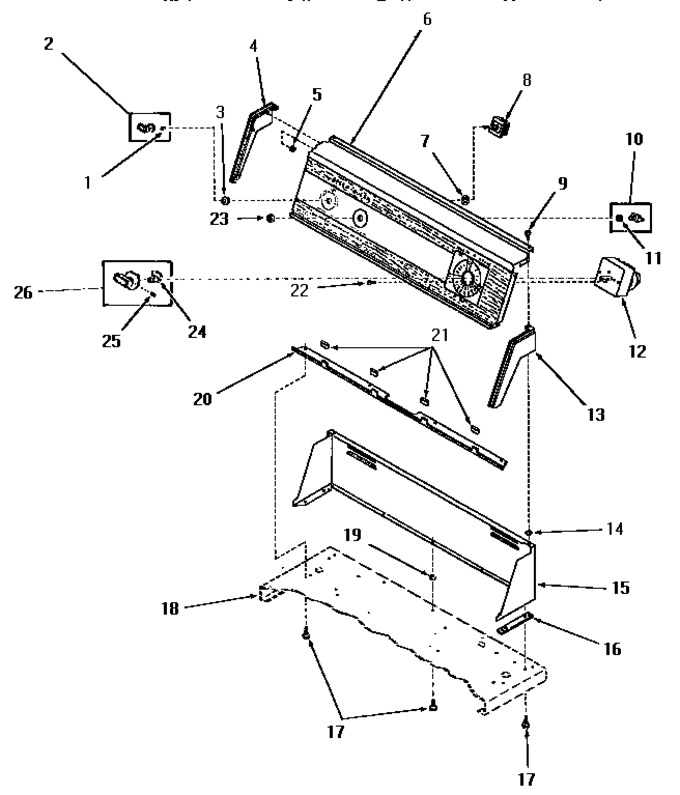

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	23392		Clip For 26816 Knob		Appelez-nous	-
2	24291		Assy,knob		Appelez-nous	-
3	24205		Nut,knurled 3/8-24				$ 244.00
4	25124		Control Hood End, Left		Appelez-nous	-
5	25126		Palnut,3/16 Sf188		Appelez-nous	-
6	54985		Control Panel		Appelez-nous	-
7	91176		Lockwasher,3/8 Intshkp				$ 1.44
8	52623		Switch,fabric Selector		Appelez-nous	-
9	25232		Screw,8ab-18x7/8 Oval		Appelez-nous	-
10	55882		Assy, Switch   (Replaces: 53768)			Immediately	$ 61.79
11	Sub. To D513506		Nut,hex 15/32-32   (Replaces: 52947)		Appelez-nous	-
12	52610		Timer		Appelez-nous	-
13	25123		Control Hood End, Right		Appelez-nous	-
14	24522		Nut,speed-8ab-18 C1995		Appelez-nous	-
15	53446A		Control Hood, Avocado		Appelez-nous	-
15	53446W		Control Hood, White		Appelez-nous	-
15	53446H		Control Hood, Harvest Gold		Appelez-nous	-
16	23028		Gasket,control Box End		Appelez-nous	-
17	WP90767		Screw,8b-18 X 3/8 Ind   (Replaces: 23962)			Immediately	$ 7.04
18	Y00000000		See Note Cabinet Top		Appelez-nous	-
19	23425		Washer,7/32idx7/16odx.		Appelez-nous	-
20	52912		Panel Support Bracket		Appelez-nous	-
21	24859		Sleeve,support Angle		Appelez-nous	-
22	70212		Screw,8-32 X 5/32 Rd H		Appelez-nous	-
23	Sub. To D513506		Nut,hex 15/32-32   (Replaces: 52947)		Appelez-nous	-
24	24283		Indicator,timer Knob		Appelez-nous	-
25	20310		Screw,8-32 X 1/4 Hex S		Appelez-nous	-
26	24290		Assy,knob-timer		Appelez-nous	-
