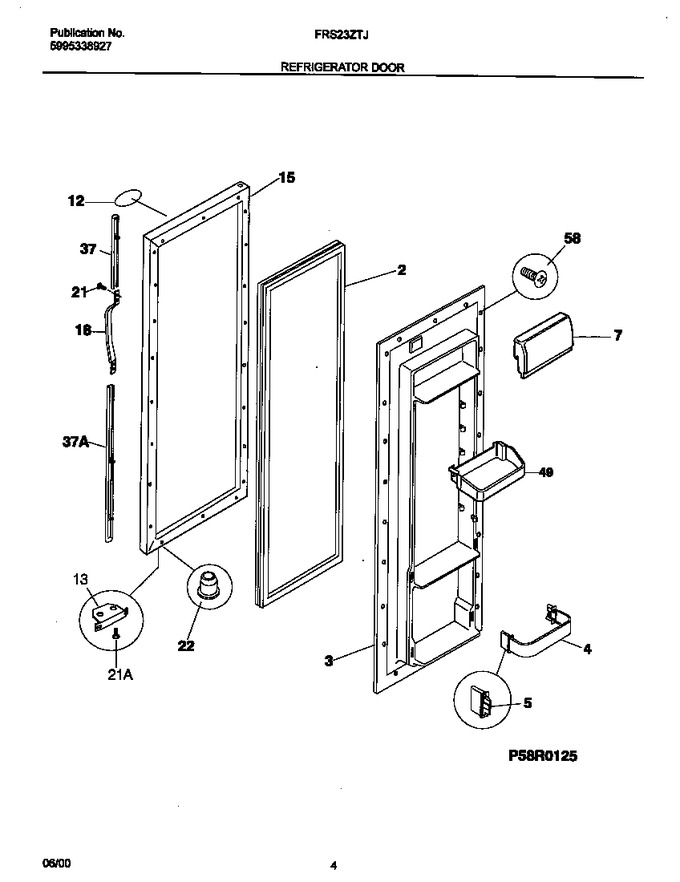

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	215734314		Gasket-refr Door, White, Magnetic				$ 243.34
3	215390401		Panel-inner Door,refr		Appelez-nous	-
4	218807029		Rack-door,w/end Caps		Appelez-nous	-
5	5303288950		Support-door Rack, Rh/lh				$ 51.19
7	5303304563		Door-dairy		Appelez-nous	-
12	218364008		Frame-nameplate,bisque		Appelez-nous	-
13	5303289522		Door Stop				$ 40.17
15	5303918194		Panel-ext Ref Door,bisque ,w/foam Insulatn		Appelez-nous	-
18	218762706		Handle-door,bisque				$ 158.76
21	218252201		Screw,8 Truss Hd ,10-32ca X 0.500   (Replaces: 218252200)			Immediately	$ 14.18
21	218578600		Screw-door Stop Mtg, Phl Truss Hd, 10-16 X 3/4				$ 8.08
22	5303289320		Bearing-hinge				$ 19.69
37	218811643		Trim-handle,bisque ,upper		Appelez-nous	-
37	218811642		Trim-handle,bisque ,lower		Appelez-nous	-
49	218592327		Bin-door,gallon		Appelez-nous	-
58	218781101		Screw,pan Head ,8-18 X 0.625   (Replaces: 218781100)				$ 15.60
*83243	215008629		Label-nameplate,bisque		Appelez-nous	-
*83245	5315340712		Tape,adhesive ,12`` Long ,foam ,double-faced		Appelez-nous	-
*83246	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
37A	215782300		Lock-handle Trim,snap-in				$ 34.49
37B	218676003		Band-decorative, Gold				$ 47.11
