01 - Automatic Ignition Burner


02 - Cabinet Top


03 - Clothes Drum


04 - Control Hood


05 - Control Panel And Controls


06 - Door Release


07 - Exhaust Fan


08 - Front Frame And Air Shroud


09 - Gas Valve


10 - Heater Box


11 - Loading Door


12 - Motor, Idler And Belt


13 - Panel Support Plate And Fluorescent Tube


14 - Panels


15 - Rear Frame And Frame Base


16 - Wire And Terminals

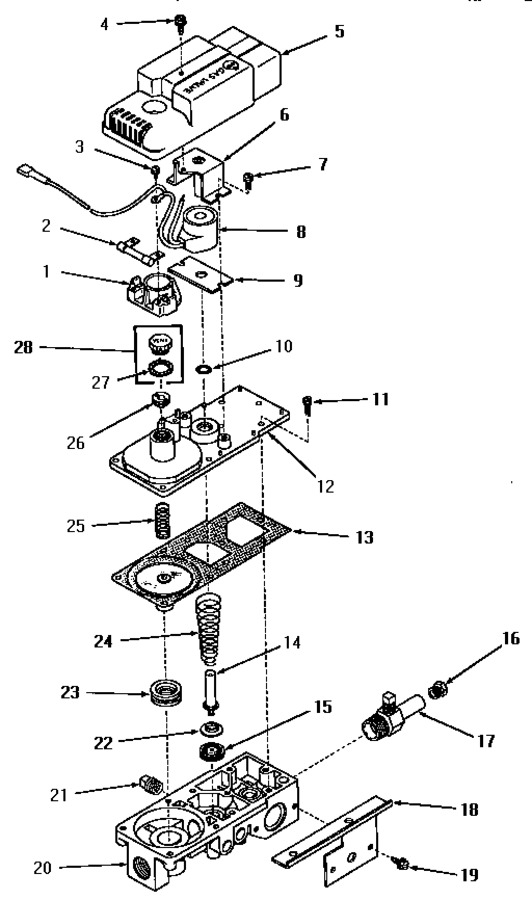

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	53428M		Mount,resistor		Appelez-nous	-
2	52966B		Resistor		Appelez-nous	-
3	53428K		Hex Head Screw		Appelez-nous	-
4	Sub. To D510151W		Screw, 6b-20x5/16   (Replaces: 51782)		Appelez-nous	-
5	53428N		Valve Housing		Appelez-nous	-
6	53377B		Plunger Guide And Bracket		Appelez-nous	-
7	53428J		Hex Head Screw		Appelez-nous	-
8	53428A		Coil,burner		Appelez-nous	-
9	53377C		Plate		Appelez-nous	-
10	53377D		O-ring		Appelez-nous	-
11	53379E		Hex Head Screw		Appelez-nous	-
12	53428E		Valve Cover		Appelez-nous	-
13	53428F		Diaphragm And Gasket		Appelez-nous	-
14	53428D		Plunger Shaft		Appelez-nous	-
15	53428H		Plunger Seat		Appelez-nous	-
16	51209		Orifice,ng		Appelez-nous	-
17	53377W		Burner Orifice Adapter		Appelez-nous	-
18	53377Q		Mounting Bracket		Appelez-nous	-
19	53379D		Hex Head Screw		Appelez-nous	-
20	53428L		Valve Body		Appelez-nous	-
21	20247		Plug,pipe		Appelez-nous	-
22	53377L		Stiffener		Appelez-nous	-
23	52966R		Regulator Seat		Appelez-nous	-
24	53428G		Valve Spring		Appelez-nous	-
25	53377X		Regulator Spring		Appelez-nous	-
26	52966M		Regualtor Screw		Appelez-nous	-
27	52966L		Gasket		Appelez-nous	-
28	53952		Screw,vent		Appelez-nous	-
