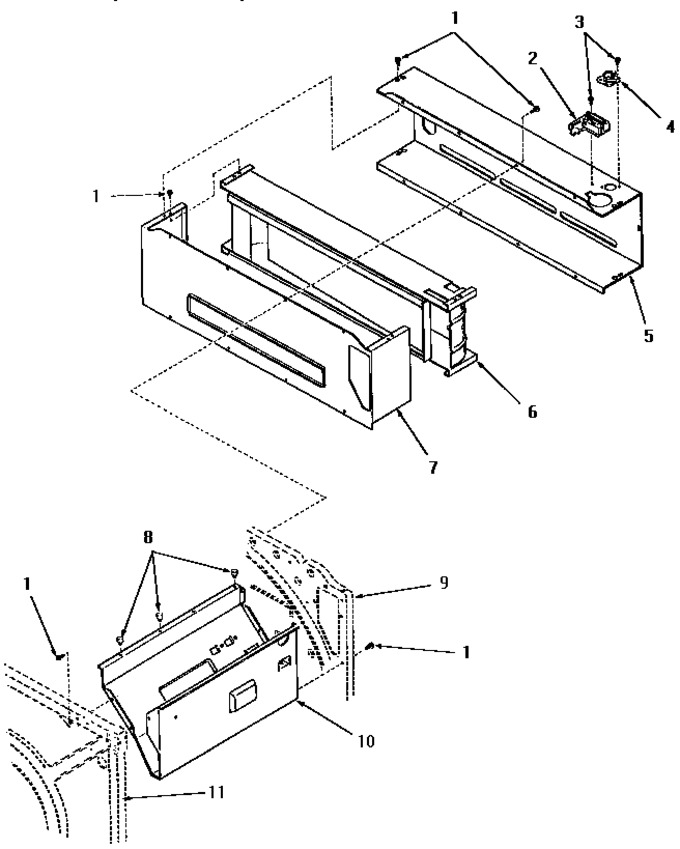

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP27001200		Hex Head Scrw   (Replaces: 25723)				$ 6.91
2	WP338906		Sensor   (Replaces: 55428)			Immediately	$ 46.72
3	WP3177991		Screw, 8b-18 X 1/4 He   (Replaces: 23222)			Immediately	$ 6.47
4	Y55742		Thermostat		Appelez-nous	-
5	0055427		Use B5716202		Appelez-nous	-
6	55426		Assy,heater Box Liner		Appelez-nous	-
7	Y0051866		Sub 58627cg, Oven Bottom		Appelez-nous	-
8	52552		Bumper, Oven Door		Appelez-nous	-
9	Y00000000		See Note Rear Frame		Appelez-nous	-
10	Y52584		Burner Shield		Appelez-nous	-
11	Y00000000		See Note Front Frame And Air Shroud		Appelez-nous	-
