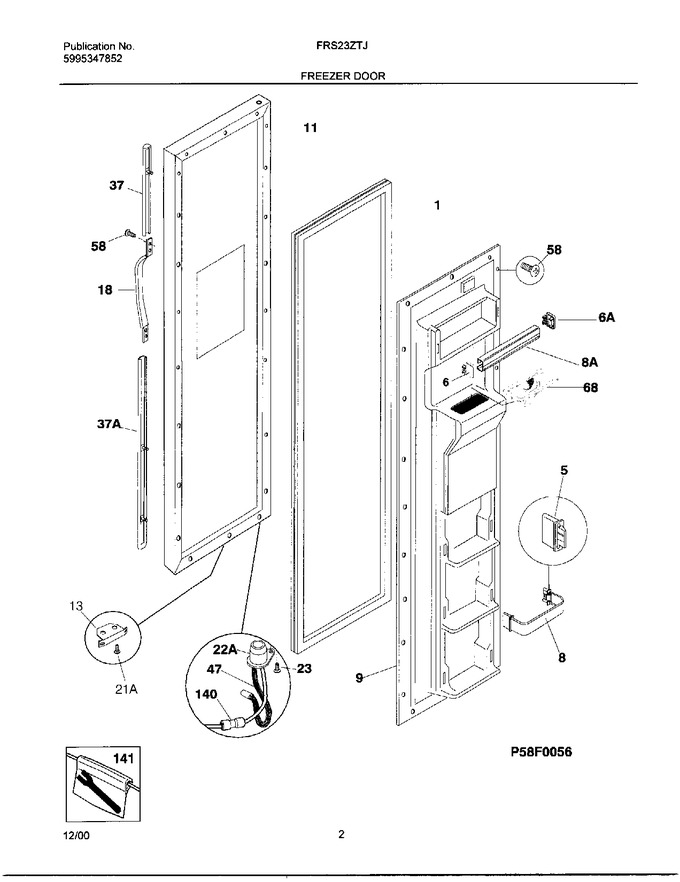

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	5303288950		Support-door Rack, Rh/lh				$ 51.19
6	5303323484		Support-door Rack, White, Lh		Appelez-nous	-
8	218807030		Rack-door,w/end Caps		Appelez-nous	-
9	218510601		Panel-inner Door, Frzr		Appelez-nous	-
11	5303918190		Panel-ext Frzr Door,black ,w/foam Insulatn		Appelez-nous	-
11	5303918189		Panel-ext Frzr Door,white ,w/foam Insulatn		Appelez-nous	-
11	5303918191		Panel-ext Frzr Door,bisque ,w/foam Insulatn		Appelez-nous	-
13	5303289522		Door Stop				$ 40.17
18	297311201		Handle-door, White   (Replaces: 218762701)			Immediately	$ 80.60
18	218762703		Handle-door,black				$ 67.04
18	218762706		Handle-door,bisque				$ 158.76
23	218958100		Screw,flat Hd ,8-32d X 1/2		Appelez-nous	-
37	215867064		Trim-handle,white ,upper ,w/dec Gold Band,and Snap Lock				$ 11.39
37	218811643		Trim-handle,bisque ,upper		Appelez-nous	-
37	218811628		Trim-handle,black ,upper ,w/gold Band ,and Snap Lock		Appelez-nous	-
47	218922901		Wiring Harness,frzr Door		Appelez-nous	-
58	218781101		Screw,pan Head ,8-18 X 0.625   (Replaces: 218781100)				$ 15.60
68	218020600		Chute-ice		Appelez-nous	-
140	218922801		Elbow-water Tube				$ 55.28
141	218929601		Tool-push Connector		Appelez-nous	-
21A	218578600		Screw-door Stop Mtg, Phl Truss Hd, 10-16 X 3/4				$ 8.08
22A	215615300		Bushing-door,bronze		Appelez-nous	-
37A	218676003		Band-decorative, Gold				$ 47.11
37A	218811627		Trim-handle,black ,lower ,w/gold Band ,and Snap Lock		Appelez-nous	-
37A	218811642		Trim-handle,bisque ,lower		Appelez-nous	-
37A	215867061		Trim-handle,white ,lower ,w/dec Gold Band,and Snap Locks		Appelez-nous	-
37A	215782300		Lock-handle Trim,snap-in				$ 34.49
6A	5303323485		Support-door Rack, White, Rh		Appelez-nous	-
8A	215474054		Rack-door		Appelez-nous	-
F1	215734323		Gasket-frzr Door, Black, Magnetic				$ 215.25
F1	215734313		Gasket-frzr Door, White, Magnetic				$ 244.78
NI	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
