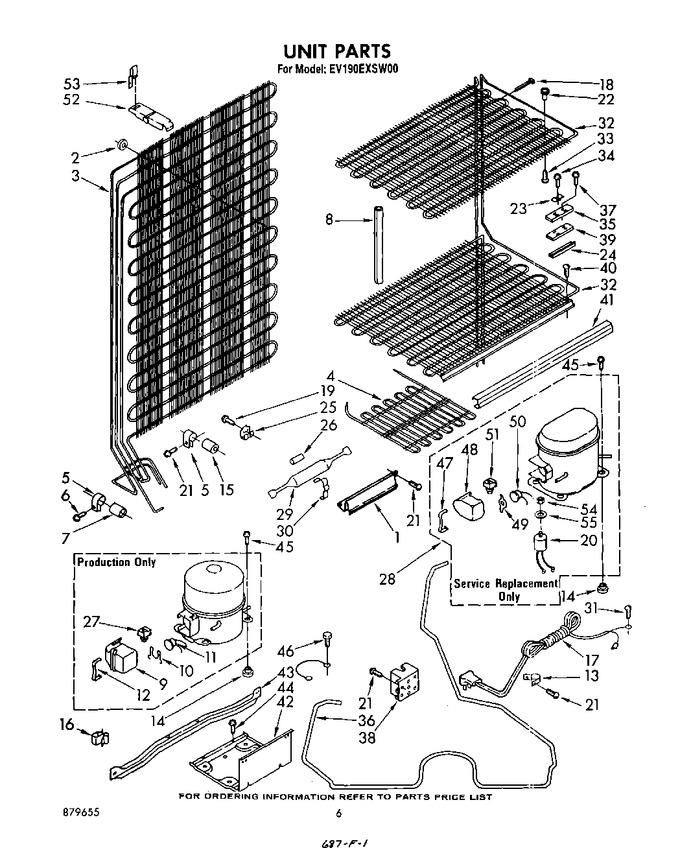

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1105630		Mounting Bracket (precooler)		Appelez-nous	-
2	1103640		Bumper (2)		Appelez-nous	-
3	1100568		Condenser Assembly		Appelez-nous	-
4	1105403		Precooler, Assembly		Appelez-nous	-
5	510716		Tube Clamp		Appelez-nous	-
6	WPW10141625		Screw, 8-32 X 1/2   (Replaces: 488197)				$ 19.04
7	WP2158826		Dampener   (Replaces: 836075)				$ 1.56
8	1103817		Cover, Connecting Lines (11.5 Inches)		Appelez-nous	-
8	941447		Cover, Connecting Lines (10 Inches)		Appelez-nous	-
8	1103818		Cover, Connecting Lines (15 Inches)		Appelez-nous	-
9	943496		Cover, Terminal (used W/original Compressor)		Appelez-nous	-
10	943494		Spring, Overload (used W/original Compressor)		Appelez-nous	-
11	1100642		Overload (used W/original Compressor)		Appelez-nous	-
12	943497		Strap, Cover (used W/original Compressor)		Appelez-nous	-
13	549193		Clamp				$ 12.05
14	876811		Grommet (4)   (Replaces: 1100826)				$ 6.68
15	945593		Dampener		Appelez-nous	-
16	W10812038		Clip, Wire   (Replaces: 939054)		Appelez-nous	-
17	1100646		Cord, Service		Appelez-nous	-
18	851095		Strap (2)		Appelez-nous	-
19	WP489069		Screw, 8 X 1/2   (Replaces: 488480)			Immediately	$ 7.07
20	482996		Capacitor, Start		Appelez-nous	-
21	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 12.62
22	1103816		Spacer (3)				$ 0.12
23	510614		Header Clamp Plate (2)		Appelez-nous	-
24	510754		Clip, Thermostat		Appelez-nous	-
25	4386951		Clip, Condenser Mounting (2)   (Replaces: 942852)		Appelez-nous	-
26	510446		Restrictor Sleeve		Appelez-nous	-
27	945431		Relay (used W/original Compressor)		Appelez-nous	-
28	482981		Compressor		Appelez-nous	-
29	W10843121		Dryer   (Replaces: 945424)			Immediately	$ 47.31
30	547637		Clamp		Appelez-nous	-
31	488474		Screw, 8-32 X 3/8		Appelez-nous	-
32	1100560		Evaporator Assembly (shelf, 3rd)		Appelez-nous	-
32	1100554		Evaporator Assembly (shelf, Top)		Appelez-nous	-
32	1100557		Evaporator Assembly (shelf, 2nd)		Appelez-nous	-
32	1100563		Evaporator Assembly (shelf, Bottom)		Appelez-nous	-
33	488748		Screw, 6 X 1-1/2		Appelez-nous	-
34	488054		Screw, 8-32 X 7/16		Appelez-nous	-
35	987316		Shim, Thermostat Plate		Appelez-nous	-
36	1100572		Heat Exchanger		Appelez-nous	-
37	488436		Screw, 8-32 X 5/8		Appelez-nous	-
38	1100606		Junction Box		Appelez-nous	-
39	851289		Plate, Thermostat		Appelez-nous	-
40	WP308685		Screw, 10-16 X 1/2 (6)   (Replaces: 487942)			Immediately	$ 7.08
40	489036		Screw (repair)		Appelez-nous	-
41	1103653		Trim, Shelf		Appelez-nous	-
42	942860		Plate, Unit Mounting		Appelez-nous	-
43	943755		Rail, Unit Mounting		Appelez-nous	-
44	WP965173		Screw   (Replaces: 487248)			Immediately	$ 9.65
44	487883		Repair		Appelez-nous	-
45	876811		Screw, 1/4-28 X 1 (4)   (Replaces: 489116)				$ 6.68
46	303776		Screw, 8-32 X .312   (Replaces: 488879)		Appelez-nous	-
47	938384		Strap (used W/service Compressor)		Appelez-nous	-
48	1108115		Cover (used W/service Compressor)		Appelez-nous	-
49	1114190		Spring, Overload (used W/service Compressor)		Appelez-nous	-
50	483037		Overload (used W/service Compressor)		Appelez-nous	-
51	WP2262181		Relay (used W/service Compressor)   (Replaces: 1108143)				$ 110.39
52	1100636		Stand-off, Cord		Appelez-nous	-
53	1100707		Clip, Mounting		Appelez-nous	-
54	488748		Nut		Appelez-nous	-
55	978030		Valve, Access (3/4``)				$ 117.64
55	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 94.73
55	489143		Washer		Appelez-nous	-
55	978026		Valve, Access (5/16``)			Immediately	$ 115.28
55	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 19.48
55	978028		Valve, Access (1/2)		Appelez-nous	-
55	978029		Valve Access (5/8``)				$ 93.85
