SELECT A DIAGRAM

02 - Door , Lit/optional


03 - Cabinet


04 - Unit


05 - Liner


06 - Shelf And Basket

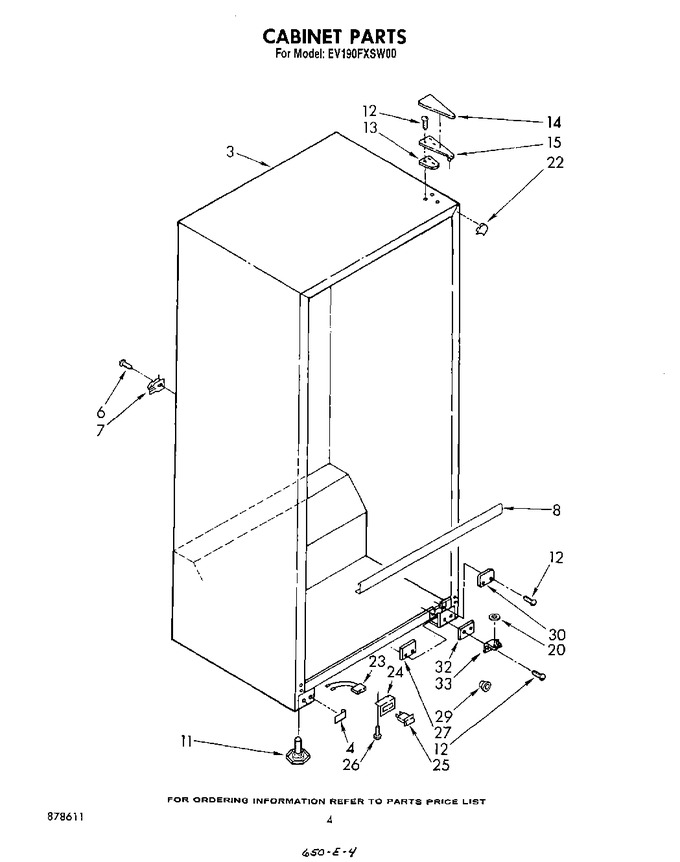

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
4	943552		Cover, Glider Rail (white)		Appelez-nous	-
4	944831		Cover, Glider Rail (almond)		Appelez-nous	-
6	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 12.62
7	939009		Clamp		Appelez-nous	-
8	1109368		Cover, Deck Rail (almond)		Appelez-nous	-
8	1109364		Cover, Deck Rail (white)		Appelez-nous	-
11	944766		Leveler (2)		Appelez-nous	-
12	WP999367		Screw, 10-32 X 23/16   (Replaces: 489105)				$ 7.07
12	488949		Screw (repair)		Appelez-nous	-
13	1100509		Shim, Top Hinge		Appelez-nous	-
14	989194		Hinge Cover (almond)		Appelez-nous	-
14	842010		Hinge Cover (white)		Appelez-nous	-
15	1100513		Shim, Hinge Top		Appelez-nous	-
20	WP487576		1/16 Repair   (Replaces: 487576)			Immediately	$ 8.89
20	WP487802		Washer (7/64 Nylon)   (Replaces: 487802)			Immediately	$ 7.12
20	WP487802		7/32 Repair   (Replaces: 488184)			Immediately	$ 7.12
22	1110684		Filler, Corner Wrap (white)		Appelez-nous	-
22	1110685		Filler, Corner Wrap (almond)		Appelez-nous	-
23	1114708		Wire Assembly, Signal Light		Appelez-nous	-
24	1103637		Bracket, Signal Light		Appelez-nous	-
25	1103639		Light, Signal		Appelez-nous	-
26	WP965173		Screw   (Replaces: 487869)			Immediately	$ 9.65
27	944813		Tap Plate		Appelez-nous	-
29	940172		Grommet		Appelez-nous	-
30	942818		Cover, Glider Rail (white)		Appelez-nous	-
30	942822		Cover, Glider Rail (almond)		Appelez-nous	-
32	942812		Shim, Bottom Hinge		Appelez-nous	-
33	944776		Butt, Hinge (bottom)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
