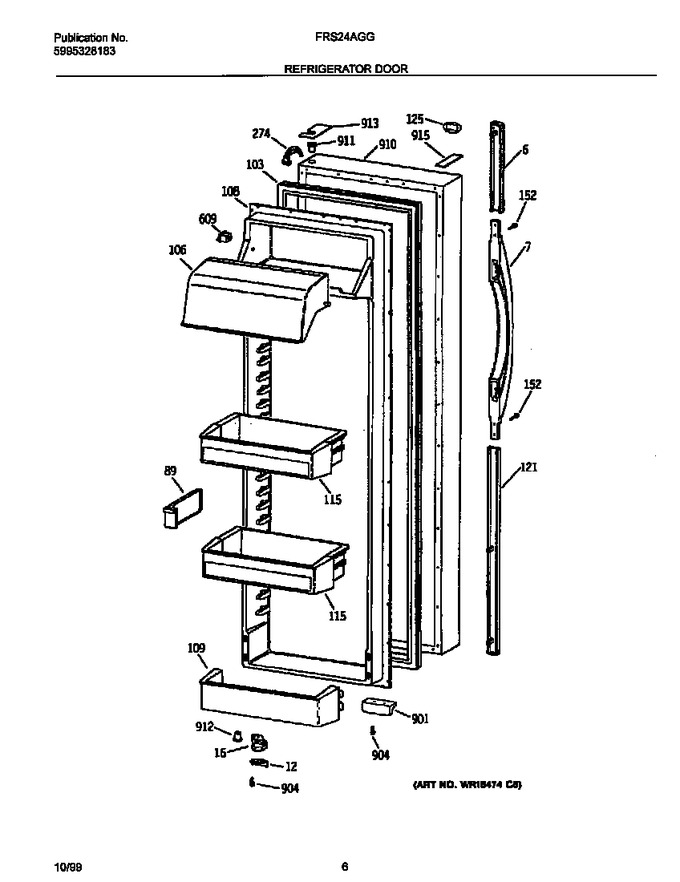

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	5304406663		Trim-handle,black ,upper ,(2)		Appelez-nous	-
7	5304406665		Handle-door,black ,(2)		Appelez-nous	-
12	5304406361		Door Stop,(2)		Appelez-nous	-
16	5304406432		Door Closer,cam ,black ,refr Section		Appelez-nous	-
89	5304406434		Retainer-bottle,(2)		Appelez-nous	-
103	5304406435		Gasket-refr Door,black ,magnetic		Appelez-nous	-
106	5304406437		Door-dairy,clear		Appelez-nous	-
108	5304406438		Panel-inner Door,refr Section		Appelez-nous	-
109	5304406439		Rack-door,bottom-refr ,(2) ,w/end Caps		Appelez-nous	-
115	5304406440		Bin-door,(2)		Appelez-nous	-
121	5304406669		Trim-handle,black ,lower ,(2)		Appelez-nous	-
125	5304406687		Nameplate,black		Appelez-nous	-
152	5304406671		Screw-handle Mtg,flat Head ,8-18ab X 5/8 S,(8)		Appelez-nous	-
274	5304406441		Wiring Harness,refr Light Sw		Appelez-nous	-
609	5304406442		Switch-light/lamp,refr Door		Appelez-nous	-
901	5304406379		Strike-door,black ,(2) ,magnetic		Appelez-nous	-
904	5304406383		Screw,10-32 X 1 ,(12)		Appelez-nous	-
910	5304406637		Panel-refr Door,black ,w/foam Insul		Appelez-nous	-
911	5304406385		Bearing-door Hinge,black ,top ,(2)		Appelez-nous	-
912	5304406445		Bearing-door Hinge,black ,bottom		Appelez-nous	-
913	5304406690		Corner Cover-door,black ,handle Side		Appelez-nous	-
915	5304406673		Corner Cover-door,black ,handle Side ,(2)		Appelez-nous	-
