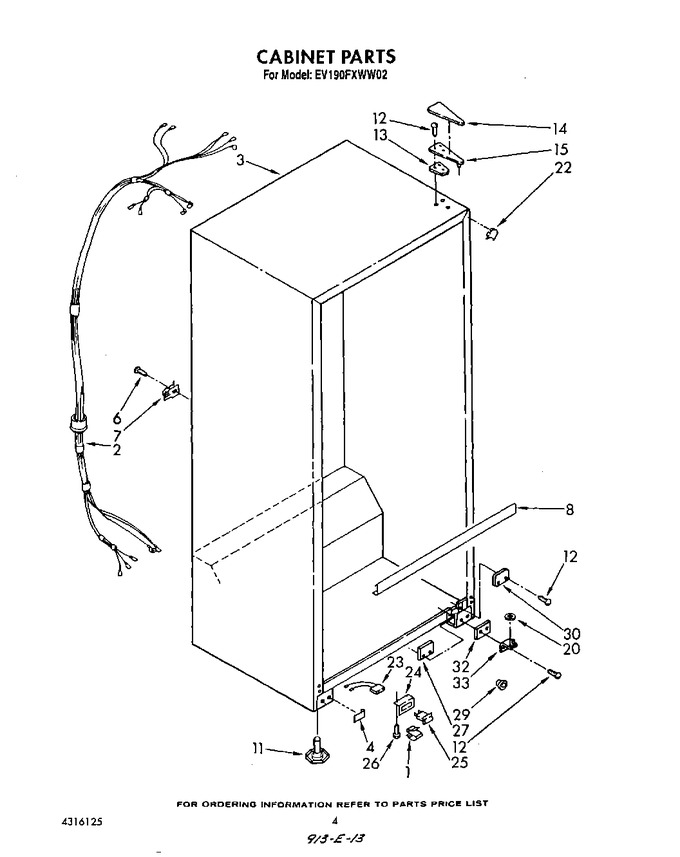

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11501419		Clip, Wiring   (Replaces: 1114718)			Immediately	$ 10.37
2	1118925		Harness, Cabinet		Appelez-nous	-
3	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
4	943552		Cover, Glider Rail (white)		Appelez-nous	-
4	944831		Cover, Glider Rail (almond)		Appelez-nous	-
6	WP489478		Screw   (Replaces: 489242)				$ 6.98
7	937357		Clamp		Appelez-nous	-
8	1119401		Cover, Deck Rail (almond)		Appelez-nous	-
8	1119399		Cover, Deck Rail (white)		Appelez-nous	-
11	944766		Leveler (2)		Appelez-nous	-
12	489327		Screw		Appelez-nous	-
13	1100511		Shim, Hinge Top		Appelez-nous	-
14	989194		Hinge Cover (almond)		Appelez-nous	-
14	842010		Hinge Cover (white)		Appelez-nous	-
15	1129045		Hinge, Top				$ 15.65
20	489201		Washer, 7/64		Appelez-nous	-
22	1118059		Filler, Corner Wrap (almond)		Appelez-nous	-
22	1118058		Filler, Corner Wrap (white)		Appelez-nous	-
23	1114708		Wire Assembly, Signal Light		Appelez-nous	-
24	1103637		Bracket, Signal Light		Appelez-nous	-
25	1103639		Light, Signal		Appelez-nous	-
26	WP965173		Screw   (Replaces: 487869)			Immediately	$ 9.65
27	2147312		Tap Plate		Appelez-nous	-
29	940172		Grommet		Appelez-nous	-
30	2151421		Cover, Glider Rail (white)		Appelez-nous	-
30	2151422		Cover, Glider Rail (almond)		Appelez-nous	-
32	943708		Shim, Bottom Hinge		Appelez-nous	-
33	1123880		Butt, Hinge (bottom)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
