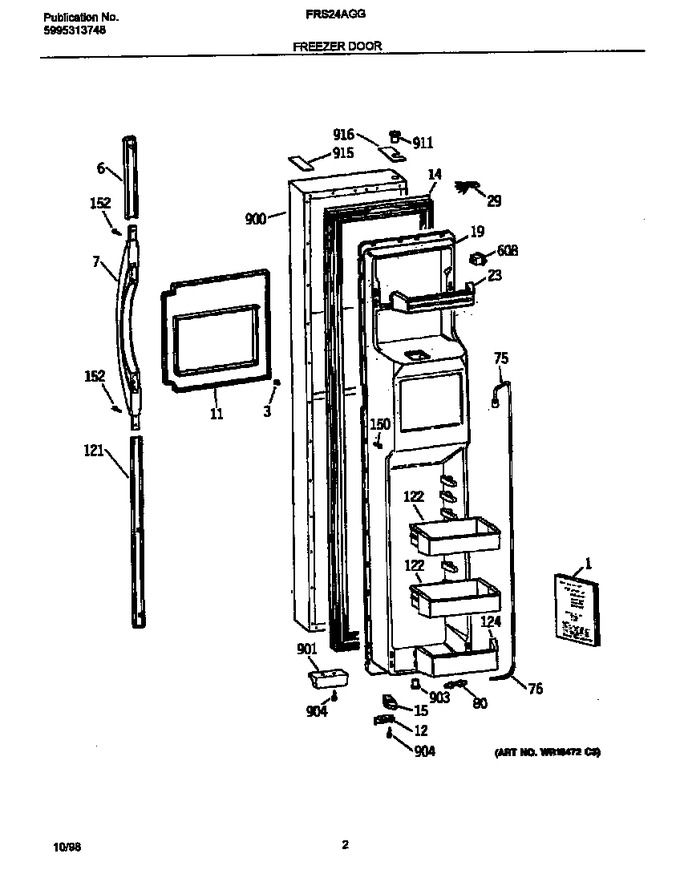

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 5304406358 | Fastener-tubular,(2) |
|
- | |||||
| 6 | 5304406664 | Trim-handle,white ,upper ,(2) |
|
- | |||||
| 7 | 5304406666 | Handle-door,white ,(2) |
|
- | |||||
| 11 | 5304406667 | Trim-disp Recess,white |
|
- | |||||
| 12 | 5304406361 | Door Stop,(2) |
|
- | |||||
| 14 | 5304406362 | Gasket-frzr Door,white ,magnetic |
|
- | |||||
| 15 | 5304406364 | Door Closer,cam ,white ,frzr Section |
|
- | |||||
| 19 | 5304406366 | Panel-inner Door,frzr Section |
|
- | |||||
| 23 | 5304406367 | Rack-door,top-frzr |
|
- | |||||
| 29 | 5304406368 | Harness-wiring,frzr Door |
|
- | |||||
| 75 | 5304406369 | Tube-water,frzr Door ,w/grommet |
|
- | |||||
| 76 | 5304406370 | Sleeve-water Tube |
|
- | |||||
| 80 | 5304406371 | Connector,water Tube |
|
- | |||||
| 121 | 5304406670 | Trim-handle,white ,lower ,(2) |
|
- | |||||
| 122 | 5304406372 | Bin-door,(2) |
|
- | |||||
| 124 | 5304406373 | Rack-door,bottom-frzr ,w/end Caps |
|
- | |||||
| 150 | 5304406374 | Screw-panel Mtg,8-15 ,(84) |
|
- | |||||
| 152 | 5304406671 | Screw-handle Mtg,flat Head ,8-18ab X 5/8 S,(8) |
|
- | |||||
| 608 | 5304406376 | Switch-light/lamp,frzr Door |
|
- | |||||
| 900 | 5304406631 | Panel-frzr Door,white ,w/foam Insul |
|
- | |||||
| 901 | 5304406380 | Strike-door,white ,(2) ,magnetic |
|
- | |||||
| 903 | 5304406381 | Bearing-door Hinge,white ,bottom |
|
- | |||||
| 904 | 5304406383 | Screw-door Strike,(8) |
|
- | |||||
| 911 | 5304406384 | Bearing-door Hinge,white ,top ,(2) |
|
- | |||||
| 915 | 5304406672 | Corner Cover-door,white ,handle Side ,(2) |
|
- | |||||
| 916 | 5304406675 | Corner Cover-door,white ,hinge Side |
|
- | |||||
| 1A | 5304406629 | Owner`s Guide |
|
- | |||||
| 1B | 5304406630 | Technical Guide,mini Manual ,wiring Diagram |
|
- |
