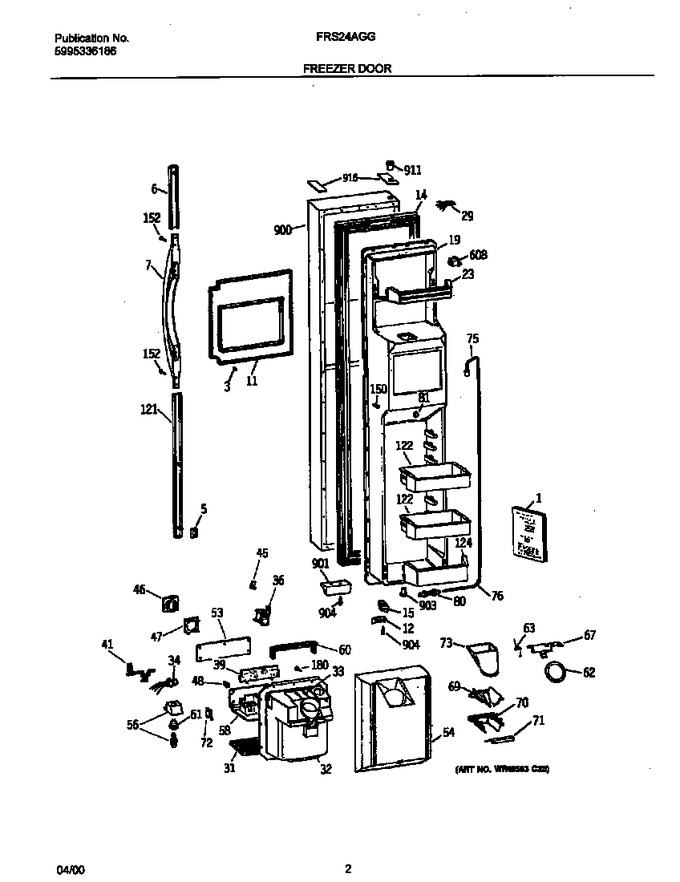

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 5304406358 | Fastener-tubular,(2) |
|
- | |||||
| 5 | 5304416766 | Clip-dart,handle Trim Mtg ,(2) |
|
- | |||||
| 6 | 5304406664 | Trim-handle,white ,upper ,(2) |
|
- | |||||
| 7 | 5304416767 | Handle-door,white ,(2) |
|
- | |||||
| 11 | 5304406667 | Trim-disp Recess,white |
|
- | |||||
| 12 | 5304406361 | Door Stop,(2) |
|
- | |||||
| 14 | 5304406362 | Gasket-frzr Door,white ,magnetic |
|
- | |||||
| 15 | 5304406364 | Door Closer,cam ,white ,frzr Section |
|
- | |||||
| 19 | 5304413798 | Panel-inner Door,frzr Section |
|
- | |||||
| 23 | 5304406367 | Rack-door,top-frzr |
|
- | |||||
| 29 | 5304415910 | Wiring Harness,frzr Door |
|
- | |||||
| 75 | 5304413799 | Tube-water,frzr Door ,w/grommet |
|
- | |||||
| 76 | 5304406370 | Sleeve-water Tube |
|
- | |||||
| 80 | 5304406353 | Nut-compression,5/16 ,union |
|
- | |||||
| 81 | 5304413800 | Plug Button,inner Dr Panel |
|
- | |||||
| 121 | 5304406670 | Trim-handle,white ,lower ,(2) |
|
- | |||||
| 122 | 5304406372 | Bin-door,(2) |
|
- | |||||
| 124 | 5304406373 | Rack-door,bottom-frzr ,w/end Caps |
|
- | |||||
| 150 | 5304406374 | Screw-panel Mtg,8-15 ,(84) |
|
- | |||||
| 152 | 5304406671 | Screw-handle Mtg,flat Head ,8-18ab X 5/8 S,(4) |
|
- | |||||
| 608 | 5304406376 | Switch-light/lamp,frzr Door |
|
- | |||||
| 900 | 5304406631 | Panel-frzr Door,white ,w/foam Insul |
|
- | |||||
| 901 | 5304406380 | Strike-door,white ,(2) ,magnetic |
|
- | |||||
| 903 | 5304406381 | Bearing-door Hinge,white ,bottom |
|
- | |||||
| 904 | 5304406383 | Screw,10-32 X 1 ,(8) |
|
- | |||||
| 911 | 5304406384 | Bearing-door Hinge,white ,top ,(2) |
|
- | |||||
| 916 | 5304406675 | Corner Cover-door,white ,hinge Side |
|
- | |||||
| 1A | 5304413776 | Plug Button,ice Maker Cover ,(2) |
|
- | |||||
| 1B | 5304416100 | Technical Guide,mini Manual ,wiring Diagram |
|
- |
