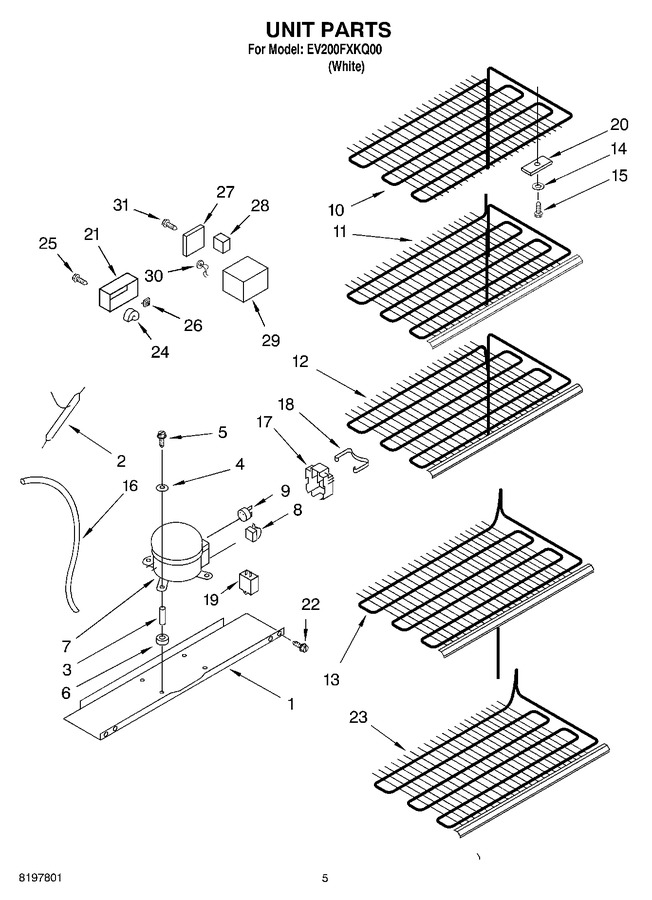

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4357095		Pan, Compressor Mounting		Appelez-nous	-
2	4001		Drier   (Replaces: 4357299)			Immediately	$ 9.64
3	4356846		Sleeve, Grommet				$ 12.86
4	4356847		Washer		Appelez-nous	-
5	4356852		Screw, Compressor Mounting				$ 6.57
6	4356335		Grommet		Appelez-nous	-
7	W10309994		Compressor (includes Items 6, 8, 9, 17 & 18)   (Replaces: 4390629)			Immediately	$ 551.61
8	4356730		Relay				$ 55.97
9	2183409		Overload   (Replaces: 4390576)				$ 111.81
10	4390703		Evaporator Top		Appelez-nous	-
11	4390704		Evaporator Shelf		Appelez-nous	-
12	4390705		Evaporator Shelf		Appelez-nous	-
13	4390706		Evaporator Shelf		Appelez-nous	-
14	4357057		Washer		Appelez-nous	-
15	WP3-24004-109		Evaporator, Mounting Screw   (Replaces: 4357223)				$ 7.25
16	4356956		Heat Exchanger		Appelez-nous	-
17	4390603		Cover		Appelez-nous	-
18	4390604		Clip		Appelez-nous	-
19	WPW10662129		Capacitor   (Replaces: 4357094)			Immediately	$ 52.97
20	4356854		Clamp		Appelez-nous	-
21	4390708		Box, Alarm		Appelez-nous	-
22	WP3-24838-048		Screw   (Replaces: 4356820)				$ 7.00
23	4390707		Evaporator Shelf, Bottom		Appelez-nous	-
24	4390709		Buzzer, Alarm		Appelez-nous	-
25	W10491985		Screw   (Replaces: 4390710)			Immediately	$ 6.47
26	4390711		Switch, Alarm		Appelez-nous	-
27	4390712		Lid, Thermostat Box		Appelez-nous	-
28	4390713		Block, Thermostat		Appelez-nous	-
29	4390714		Box, Thermostat		Appelez-nous	-
30	4390715		Thermodisc, Alarm		Appelez-nous	-
31	4390716		Screw		Appelez-nous	-
