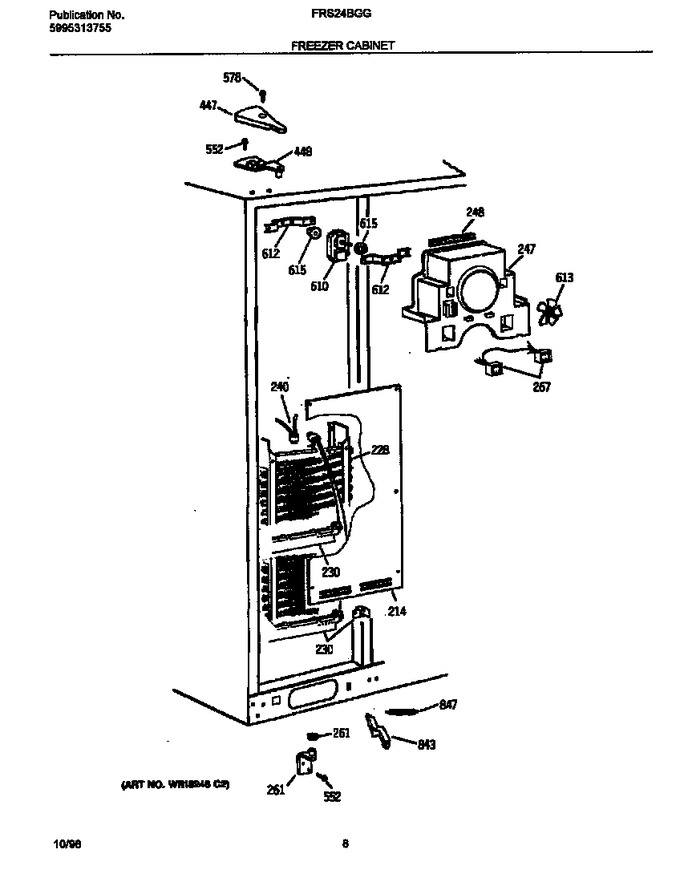

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 214 | 5304406460 | Cover-evaporator |
|
- | |||||
| 228 | 5304406461 | Evaporator |
|
- | |||||
| 240 | 5304406464 | Thermostat-defrost |
|
- | |||||
| 247 | 5304406465 | Housing-evap Fan |
|
- | |||||
| 248 | 5304406466 | Seal-fan Housing,foam Strip ,(3) |
|
- | |||||
| 261 | 5304406467 | Bracket-lower Hinge,black ,frzr ,w/hinge Pin |
|
- | |||||
| 261 | 5304406469 | Washer-thrust,hinge Bracket |
|
- | |||||
| 267 | 5304406470 | Harness-wiring,evaporator |
|
- | |||||
| 447 | 5304406474 | Cover-upper Hinge,black ,frzr Side |
|
- | |||||
| 448 | 5304406476 | Bracket-upper Hinge,frzr Side |
|
- | |||||
| 552 | 5304406375 | Screw-hinge Mtg,(12) |
|
- | |||||
| 578 | 5304406477 | Screw-hinge Cover,(2) |
|
- | |||||
| 610 | 5304406478 | Motor-evap Fan |
|
- | |||||
| 612 | 5304406479 | Bracket-evap Fan,(2) |
|
- | |||||
| 615 | 5304406481 | Grommet-evap Fan,spacer ,(2) |
|
- | |||||
| 843 | 5304406482 | Lever-door Closer,black ,frzr Side |
|
- | |||||
| 847 | 5304406484 | Spring-door Closer,(2) |
|
- | |||||
| 230A | 5304406462 | Bracket-dfr Heater,(2) |
|
- | |||||
| 230B | 5304406463 | Harness-wiring,defrost Heater |
|
- | |||||
| 613A | 5304406480 | Blade-evap Fan |
|
- | |||||
| 613B | 5308067917 | Ring-compression,fan Blade |
|
- |
