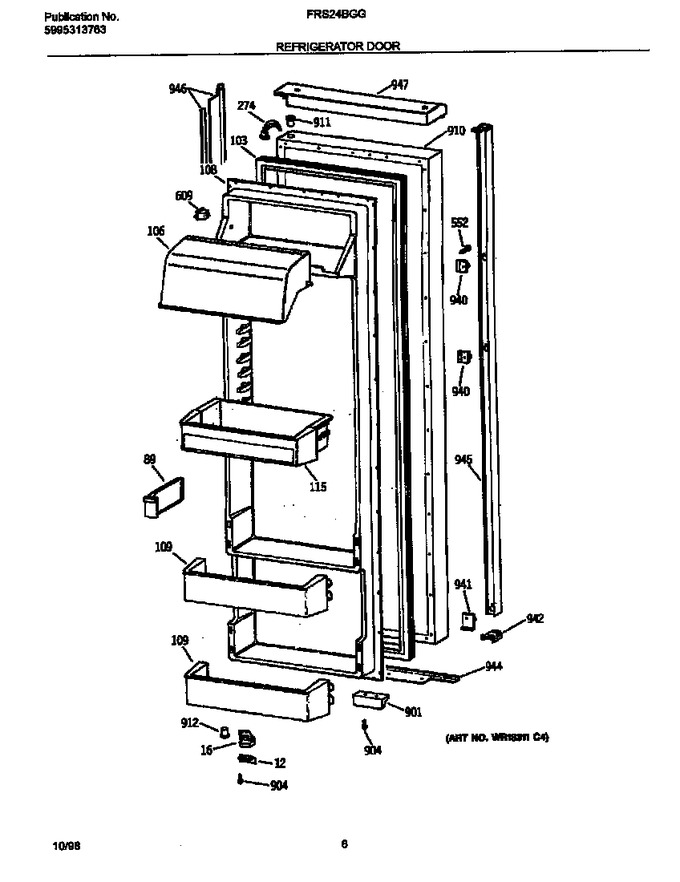

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	5304406361		Door Stop,(2)		Appelez-nous	-
16	5304406432		Door Closer,cam ,black ,refr Section		Appelez-nous	-
89	5304406434		Retainer-bottle,(2)		Appelez-nous	-
103	5304406435		Gasket-refr Door,black ,magnetic		Appelez-nous	-
106	5304406437		Door-dairy,clear		Appelez-nous	-
108	5304406438		Panel-inner Door,refr Section		Appelez-nous	-
109	5304406439		Rack-door,bottom-refr ,(2) ,w/end Caps		Appelez-nous	-
115	5304406440		Bin-door,(2)		Appelez-nous	-
274	5304406441		Harness-wiring,refr Light Sw		Appelez-nous	-
552	5304406375		Screw-hinge Mtg,(12)		Appelez-nous	-
609	5304406442		Switch-light/lamp,refr Door		Appelez-nous	-
901	5304406379		Strike-door,black ,(2) ,magnetic		Appelez-nous	-
904	5304406383		Screw-door Strike,(8)		Appelez-nous	-
910	5304406637		Panel-refr Door,black ,w/foam Insul		Appelez-nous	-
911	5304406385		Bearing-door Hinge,black ,top ,(2)		Appelez-nous	-
912	5304406445		Bearing-door Hinge,black ,bottom		Appelez-nous	-
940	5304406635		Brace-handle,center		Appelez-nous	-
942	5304406450		Trim-refr Handle,end Cap ,black ,bottom		Appelez-nous	-
944	5304406452		Trim-refr Door,black ,bottom		Appelez-nous	-
945	5304406639		Handle-refr Door,black		Appelez-nous	-
946	5304406456		Trim-refr Door,black ,side		Appelez-nous	-
947	5304406458		Trim-refr Door,black ,top		Appelez-nous	-
941A	5304406448		Connector-electric,6-pin		Appelez-nous	-
941B	5304406449		Brace-refr Handle,lower		Appelez-nous	-
