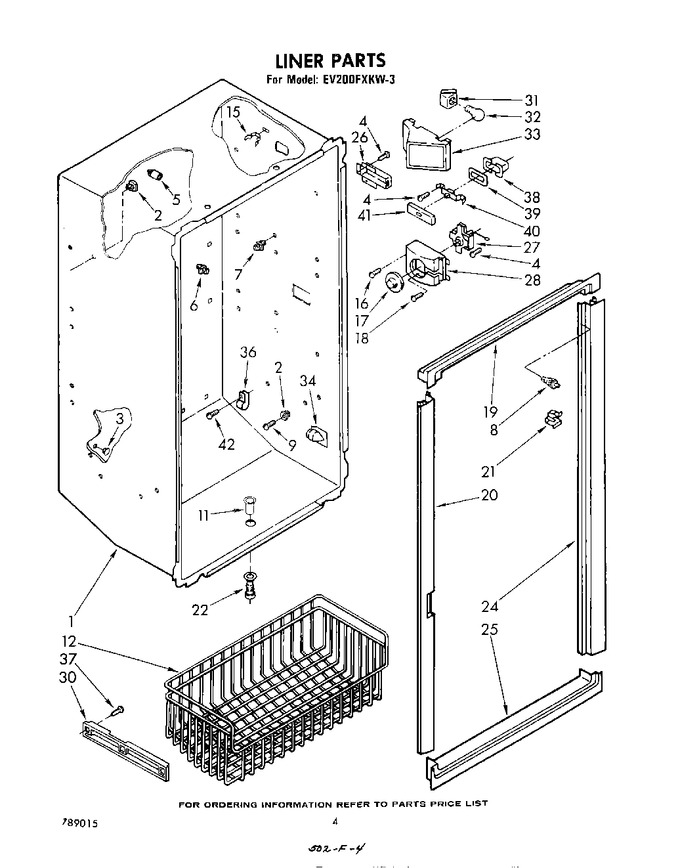

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Cabinet
03 - Liner
04 - Door , Lit/optional
05 - Unit
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | 842339 | Grommet |
|
- | |||||
| 3 | 519890 | Plug, Hole |
|
- | |||||
| 4 | WP489128 | Screw, 8-32 X .375 (Replaces: 488500) |
|
$ 9.79 | |||||
| 5 | 838186 | Spacer (3) |
|
- | |||||
| 6 | 513002 | Stud, Shelf (8) |
|
- | |||||
| 7 | 517151 | Stud, Hook (8) |
|
- | |||||
| 7 | 941306 | Repair |
|
- | |||||
| 8 | 549191 | Switch, Light |
|
- | |||||
| 9 | WP488729 | Screw, 8 X 1/2a (Replaces: 488783) |
|
Immediately | $ 7.01 | ||||
| 11 | 934607 | Ferrule, Drain |
|
- | |||||
| 12 | 842200 | Basket, Slide Out |
|
- | |||||
| 15 | 533998 | Speed Clip |
|
- | |||||
| 16 | W11624204 | Screw, 8 X 1/2 (Replaces: 486194) |
|
$ 12.62 | |||||
| 17 | 981928 | Knob, Thermostat |
|
- | |||||
| 18 | WP965173 | Screw, 8-18 X 3/8 (Replaces: 488110) |
|
Immediately | $ 9.65 | ||||
| 19 | 839830 | Breaker, Top |
|
- | |||||
| 20 | 839831 | Breaker, L.s. |
|
- | |||||
| 21 | 939139 | Clip |
|
- | |||||
| 22 | 842256 | Fitting, Drain |
|
- | |||||
| 24 | 836635 | Breaker, R.s. |
|
- | |||||
| 25 | 839829 | Breaker, Bottom |
|
- | |||||
| 26 | 836553 | Cover, Insulation |
|
- | |||||
| 27 | VF3 | Thermostat & Barrier Assembly (Replaces: 851703) |
|
$ 38.40 | |||||
| 28 | 843953 | Escutcheon, Thermostat |
|
- | |||||
| 30 | 653670 | Track, Shelf (l.s.) |
|
- | |||||
| 30 | 653669 | Track, Shelf (r.s.) |
|
- | |||||
| 31 | 4387478 | Socket Assembly (Replaces: 851067) |
|
Immediately | $ 99.14 | ||||
| 32 | 8009 | Bulb, Light (Replaces: 527949) |
|
Immediately | $ 16.80 | ||||
| 33 | 848158 | Shield, Light |
|
- | |||||
| 34 | 839826 | Cover, Tube Entry |
|
- | |||||
| 36 | 488937 | Clamp, Tube |
|
- | |||||
| 37 | W11693756 | Screw, 8 X 5/8 (6) (Replaces: 487042) |
|
Immediately | $ 12.65 | ||||
| 38 | 845051 | Container, Switch |
|
- | |||||
| 39 | 845052 | Gasket |
|
- | |||||
| 40 | 845049 | Switch, Power Saver |
|
- | |||||
| 41 | 934924 | Escutcheon, Switch |
|
- | |||||
| 42 | WP488729 | Screw, 8 X 1/2 (Replaces: 487909) |
|
Immediately | $ 7.01 |
