Diagram # Part Number Description Series Availability Ships Price Add to Cart
2 3051152 Glass-front, Black Appelez-nous -
3 3131256 Handle, Oven Door Appelez-nous -
4 3131207 Cover, Door Liner Appelez-nous -
5 3202147 Liner-oven Door Appelez-nous -
6 3051225 Seal Non S/c Door Appelez-nous -
7 3202148 Shield-wool Appelez-nous -
8 3131253 Clip, Retainer (2) Appelez-nous -
9 3131214 Seal, Foam (4) Appelez-nous -
10 3051728 Trim, Oven Door Appelez-nous -
11 3131323 Support, Glass (2) Appelez-nous -
12 241T017P240 Fastener-nylon (6) Appelez-nous -
13 276T088P13 Glass, Oven Door (rear) Appelez-nous -
14 241T017P174 Fastener-nylon Spcr (3) Appelez-nous -
15 3131208 Insulation, Oven Door Appelez-nous -
16 3131102 Screw Handle 10-24 Sp. Wsh. Rhd. (2) Appelez-nous -
14A 636T130P02 Screw (8 X 18 X 1/2``) (3) (non-illustrated) Appelez-nous -
15A 636T143P01 Screw Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

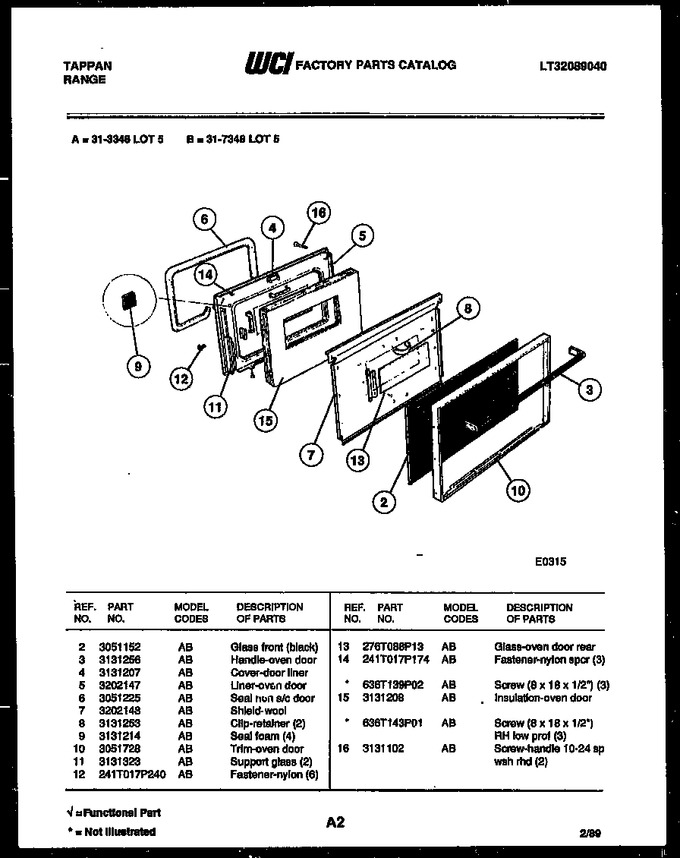

Diagram for 31-3348-66-05
