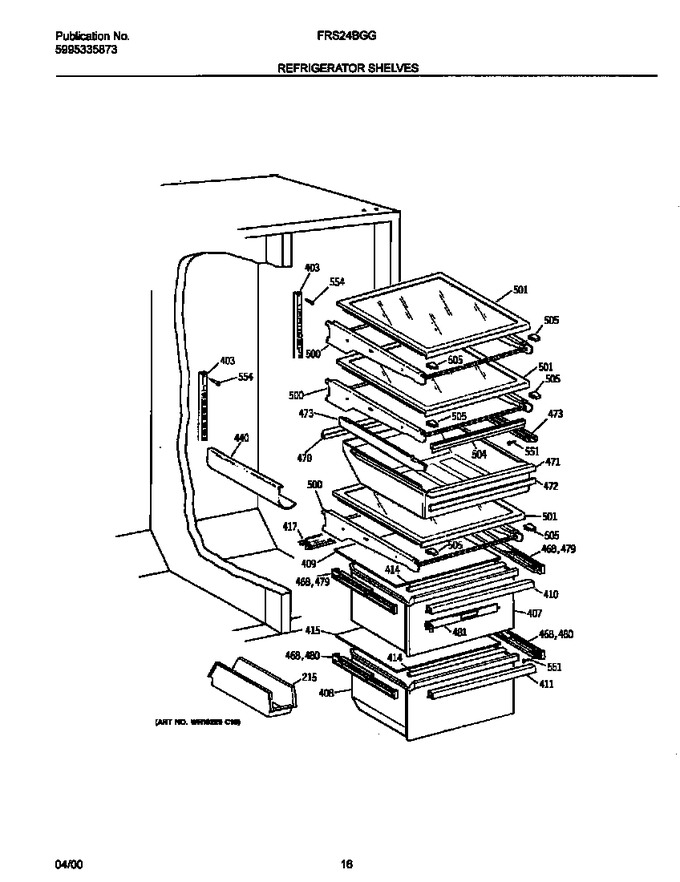

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
215	5304406602		Bin-utility,white		Appelez-nous	-
403	5304406603		Channel-shelf Mtg,(2)		Appelez-nous	-
407	5304406604		Pan-storage,vegetable ,middle		Appelez-nous	-
408	5304415937		Pan-storage,meat ,bottom		Appelez-nous	-
409	5304406606		Panel-shelf,glass ,veg Pan Cover				$ 205.20
410	5304406607		Handle-veg Pan		Appelez-nous	-
411	5304406608		Handle-meat Pan		Appelez-nous	-
414	5304406609		Gasket-pan Cover,(2)		Appelez-nous	-
415	5304406610		Panel-shelf,glass ,meat Pan Cover		Appelez-nous	-
417	5304406611		Gasket-veg Pan,rear ,shield		Appelez-nous	-
440	5304406612		Rack-wine		Appelez-nous	-
468	5304406616		Bearing-pan Hanger,(8)		Appelez-nous	-
470	5304406613		Gasket-snack Pan,rear		Appelez-nous	-
471	5304415938		Pan-storage,snack ,top		Appelez-nous	-
472	5304406615		Trim-snack Pan,front		Appelez-nous	-
481	5304406623		Control-humidity,slider ,veg Pan		Appelez-nous	-
500	5304406624		Frame-shelf,cantilever ,(3) ,spillproof		Appelez-nous	-
501	5304406625		Shelf-slideout,glass ,(3) ,spillproof		Appelez-nous	-
504	5304406626		Seal-snk Pan Shelf,front		Appelez-nous	-
505	5304406627		Stop-shelf,front ,(6)		Appelez-nous	-
551	5304406496		Screw-hanger Mtg,round Wshr Head ,		Appelez-nous	-
554	5304406628		Screw-channel Mtg,10-24 X 1.00 ,(6)		Appelez-nous	-
473A	5304406617		Hanger-snack Pan,rs		Appelez-nous	-
473B	5304406618		Hanger-snack Pan,ls		Appelez-nous	-
479A	5304406619		Hanger-veg Pan,rs		Appelez-nous	-
479B	5304406620		Hanger-veg Pan,ls		Appelez-nous	-
480A	5304406621		Hanger-meat Pan,rs		Appelez-nous	-
480B	5304406622		Hanger-meat Pan,ls		Appelez-nous	-
