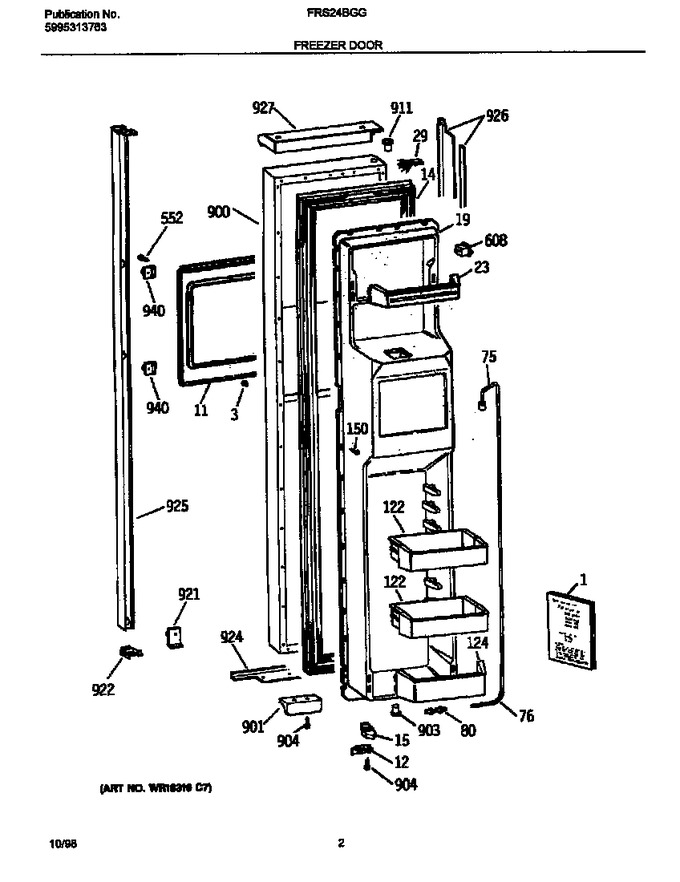

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 5304406358 | Fastener-tubular,(2) |
|
- | |||||
| 11 | 5304406360 | Trim-disp Recess,white |
|
- | |||||
| 12 | 5304406361 | Door Stop,(2) |
|
- | |||||
| 14 | 5304406362 | Gasket-frzr Door,white ,magnetic |
|
- | |||||
| 15 | 5304406364 | Door Closer,cam ,white ,frzr Section |
|
- | |||||
| 19 | 5304406366 | Panel-inner Door,frzr Section |
|
- | |||||
| 23 | 5304406367 | Rack-door,top-frzr |
|
- | |||||
| 29 | 5304406368 | Harness-wiring,frzr Door |
|
- | |||||
| 75 | 5304406369 | Tube-water,frzr Door ,w/grommet |
|
- | |||||
| 76 | 5304406370 | Sleeve-water Tube |
|
- | |||||
| 80 | 5304406371 | Connector,water Tube |
|
- | |||||
| 122 | 5304406372 | Bin-door,(2) |
|
- | |||||
| 124 | 5304406373 | Rack-door,bottom-frzr ,w/end Caps |
|
- | |||||
| 150 | 5304406374 | Screw-panel Mtg,8-15 ,(84) |
|
- | |||||
| 552 | 5304406375 | Screw-hinge Mtg,(12) |
|
- | |||||
| 608 | 5304406376 | Switch-light/lamp,frzr Door |
|
- | |||||
| 900 | 5304406631 | Panel-frzr Door,white ,w/foam Insul |
|
- | |||||
| 901 | 5304406380 | Strike-door,white ,(2) ,magnetic |
|
- | |||||
| 903 | 5304406381 | Bearing-door Hinge,white ,bottom |
|
- | |||||
| 904 | 5304406383 | Screw-door Strike,(8) |
|
- | |||||
| 911 | 5304406384 | Bearing-door Hinge,white ,top ,(2) |
|
- | |||||
| 921 | 5304406387 | Brace-frzr Handle,lower |
|
- | |||||
| 922 | 5304406389 | Trim-frzr Handle,white ,bottom |
|
- | |||||
| 924 | 5304406391 | Trim-frzr Door,white ,bottom |
|
- | |||||
| 925 | 5304406634 | Handle-frzr Door,white |
|
- | |||||
| 926 | 5304406395 | Trim-frzr Door,white ,side |
|
- | |||||
| 927 | 5304406397 | Trim-frzr Door,white ,top |
|
- | |||||
| 940 | 5304406635 | Brace-handle,center |
|
- | |||||
| 1A | 5304406662 | Guard-splash,water Valve |
|
- | |||||
| 1B | 5304406630 | Technical Guide,mini Manual ,wiring Diagram |
|
- |
