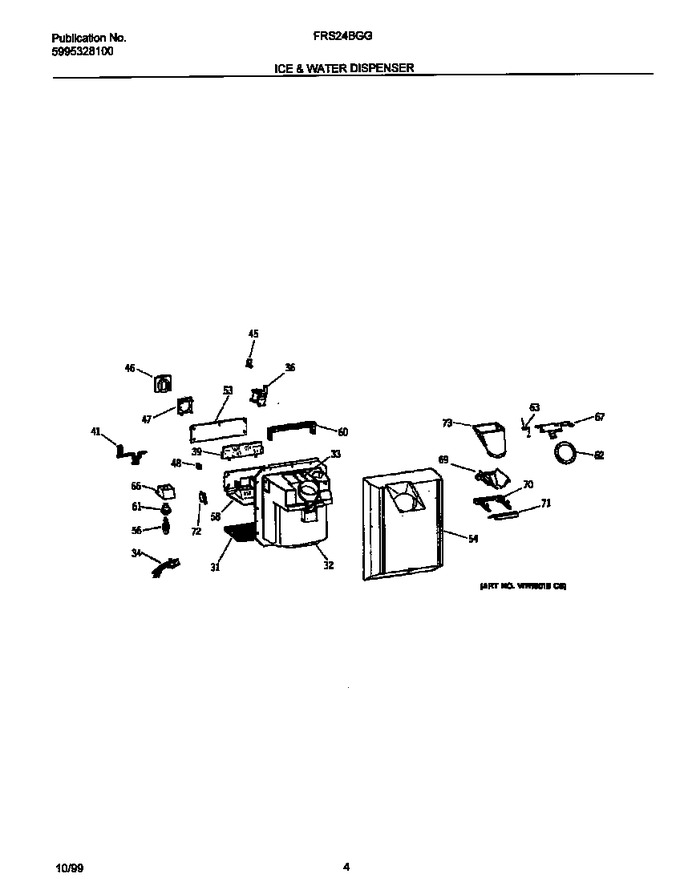

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
31	5304406399		Drip Tray,white ,dispenser		Appelez-nous	-
32	5304406400		Housing-dispenser,white		Appelez-nous	-
33	5304406402		Heater-disp Housing		Appelez-nous	-
34	5304406403		Wiring Harness,disp Light Sw		Appelez-nous	-
36	5304406404		Solenoid-dispenser		Appelez-nous	-
39	5304406405		Pc Board-dispenser,time Delay		Appelez-nous	-
41	5304406406		Cradle-actuator		Appelez-nous	-
45	5304406407		Retainer-disp Door		Appelez-nous	-
46	5304406409		Pad-actuator,white		Appelez-nous	-
47	5304406410		Support-act Pad,black		Appelez-nous	-
48	5304406411		Knob-dispenser,white ,(2)		Appelez-nous	-
53	5304406414		Nameplate-dispenser,white		Appelez-nous	-
54	5304406415		Insulation-housing,foam ,dispenser		Appelez-nous	-
58	5304406419		Shield-dispenser,white		Appelez-nous	-
60	5304406420		Cover-electrical,disp Housing		Appelez-nous	-
61	5304406421		Socket-light/lamp,e12		Appelez-nous	-
62	5304406422		Door-ice Dispenser		Appelez-nous	-
63	5304406423		Spring-disp Door		Appelez-nous	-
67	5304406424		Crank-disp Door		Appelez-nous	-
69	5304406425		Funnel-disp Shield,black		Appelez-nous	-
70	5304406427		Support-fnl Shield,white		Appelez-nous	-
71	5304406428		Deflector-ice Disp,black		Appelez-nous	-
72	5304406429		Switch,cradle Actuator		Appelez-nous	-
73	5304406430		Chute-ice		Appelez-nous	-
56A	5304406416		Reflector-lamp Skt		Appelez-nous	-
56B	5304406417		Lamp,7c7		Appelez-nous	-
