02 - Drawer Parts
03 - Door Parts
04 - Cooktop Parts
05 - Broiler Parts
06 - Backguard
07 - Body Parts
SELECT A DIAGRAM
New Model Search:

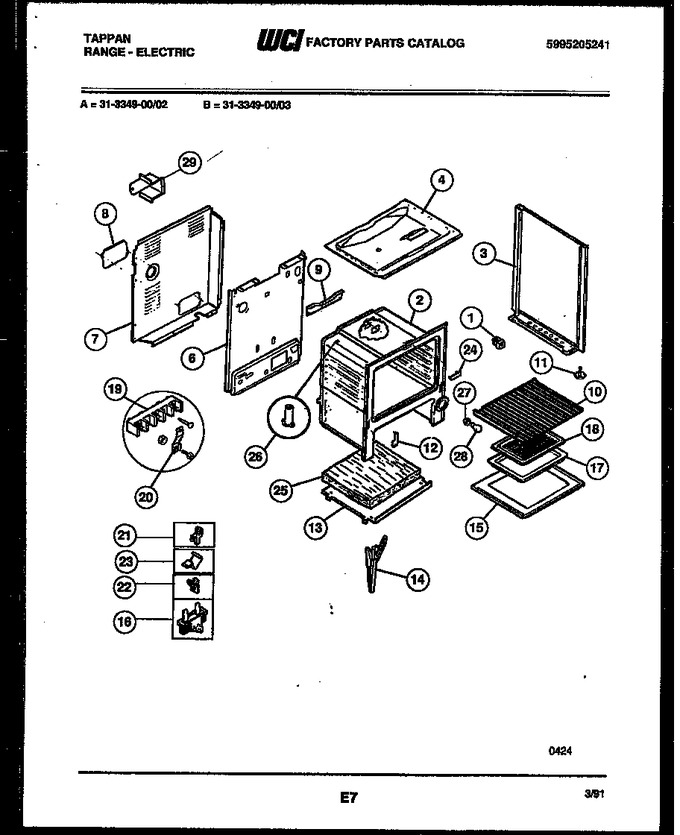

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3014099 | Spcr. Bodyside (8) |
|
$ 3.62 | |||||
| 3 | 5303269519 | Panel-b/s-lh-white |
|
- | |||||
| 3 | 5303269545 | Panel Bodyside Lh (almond) |
|
- | |||||
| 4 | 5303271756 | Burner Box |
|
- | |||||
| 6 | 3203082 | Back-main |
|
- | |||||
| 7 | 3203549 | Shield-lower Wall |
|
- | |||||
| 8 | 3203405 | Cover-lower Access |
|
- | |||||
| 9 | 3051368 | Cover-flue |
|
- | |||||
| 10 | 5303131973 | Rack, Oven (2) |
|
- | |||||
| 11 | 5303203397 | Screw-level (4) |
|
$ 14.49 | |||||
| 12 | 3131570 | Cover-hinge Cutout (2) |
|
$ 7.35 | |||||
| 13 | 3200825 | Shield-wool Lower |
|
- | |||||
| 14 | 5303131569 | Channel-door Hinge (2) |
|
- | |||||
| 15 | 3203540 | Bottom Oven |
|
- | |||||
| 16 | 3051147 | Fuse-thermal |
|
- | |||||
| 17 | 5303013568 | Broiler Pan |
|
- | |||||
| 18 | 5303131356 | Insert-broiler Pan |
|
- | |||||
| 19 | 5304409888 | Terminal Block (Replaces: 5306563359) |
|
Immediately | $ 26.69 | ||||
| 20 | 5303212739 | Ground Strap |
|
- | |||||
| 21 | 5303011805 | Clip-thermal Bulb (2) |
|
- | |||||
| 22 | 3051162 | Glide-drawer (2) |
|
Immediately | $ 8.22 | ||||
| 23 | 3051367 | Clip-wire |
|
- | |||||
| 24 | 5303015372 | Cover, Front Main |
|
- | |||||
| 25 | 3051390 | Insulation-bottom |
|
- | |||||
| 26 | 3051344 | Tube-oven Vent |
|
- | |||||
| 27 | 3014073 | Socket-oven Light |
|
- | |||||
| 28 | 5303208582 | Bulb-oven Light |
|
- | |||||
| 29 | 3203582 | Shield-rear Wall |
|
- | |||||
| *46483 | 3203350 | Plug Button |
|
- | |||||
| *46483 | 19100210001 | Wiring Diagram (not For Purchase) |
|
- | |||||
| *46483 | 5303206618 | Bracket-range Cable Mtg |
|
- | |||||
| *46483 | 3934056 | Anti-tip Kit |
|
- | |||||
| 27A | 3017142 | Insulation, Wrap (non-illustrated) |
|
$ 193.50 | |||||
| 27B | 3203541 | Insulation, Back (non-illustrated) |
|
- | |||||
| 27C | 3131903 | Bumper |
|
$ 55.36 | |||||
| 27D | 5303212740 | Screw-hinge Mount (6) (non-illustrated) |
|
- | |||||
| 27E | 5303051099 | Nut-hex Brass (6) (non-illustrated) |
|
- | |||||
| 3A | 5303269543 | Panel-bodyside Rh (almond) |
|
- | |||||
| 3A | 5303269518 | Panel-b/s-rh-white |
|
- |
