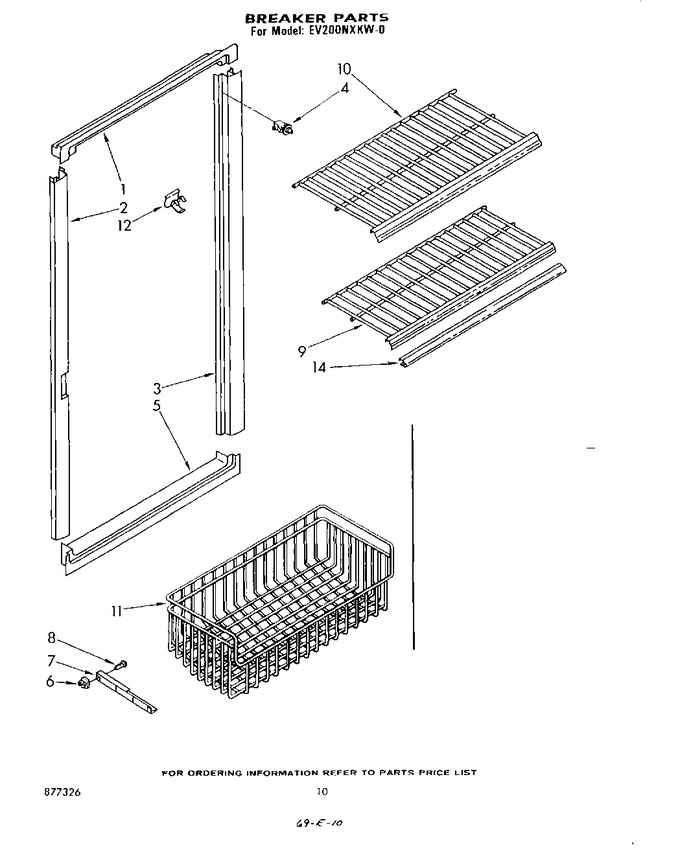

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 940918 | Breaker, Top |
|
- | |||||
| 2 | 941314 | Breaker, L.s. |
|
- | |||||
| 3 | 836635 | Breaker, R.s. |
|
- | |||||
| 4 | 549191 | Switch, Light |
|
- | |||||
| 5 | 839829 | Breaker, Bottom |
|
- | |||||
| 6 | 842339 | Grommet |
|
- | |||||
| 7 | 837557 | Track, Shelf (l.s.) |
|
- | |||||
| 7 | 837554 | Track, Shelf (r.s.) |
|
- | |||||
| 8 | W11693756 | Screw, 8-15 X 5/8 (4) (Replaces: 487042) |
|
Immediately | $ 12.65 | ||||
| 9 | 849691 | Shelf (1) |
|
- | |||||
| 10 | 849690 | Shelf (3) |
|
- | |||||
| 11 | 839852 | Basket, Slide-out |
|
- | |||||
| 12 | 849749 | Clip |
|
- | |||||
| 14 | 942645 | Trim, Shelf (4) (snap-on) |
|
- |
