SELECT A DIAGRAM

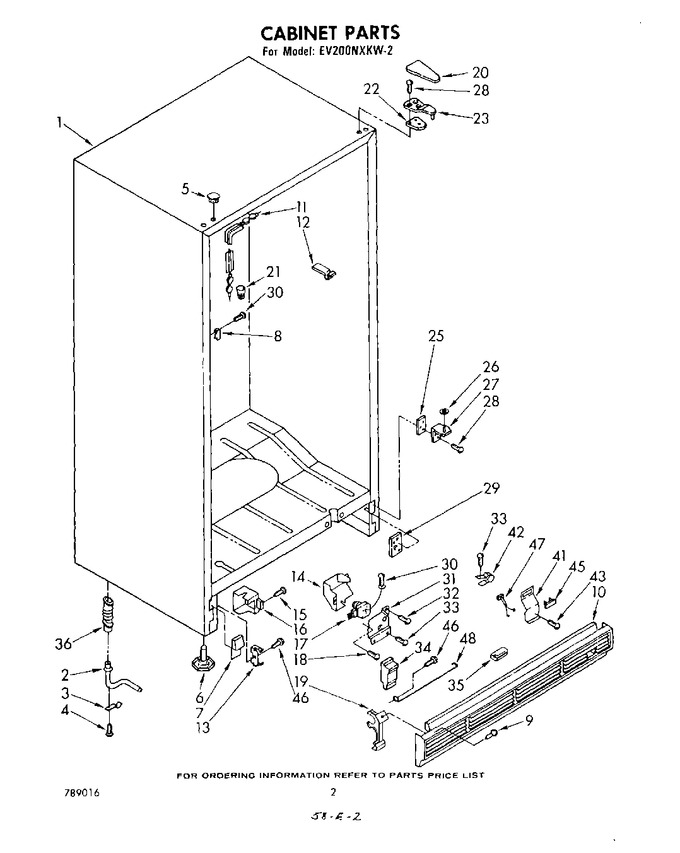

02 - Cabinet


03 - Door , Lit/optional


04 - Unit


05 - Liner


06 - Breaker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
2	841646		Extension Fitting		Appelez-nous	-
3	841648		Clip, Drain		Appelez-nous	-
4	488978		Screw, 8-15 X 3/8		Appelez-nous	-
5	989875		Plug, Hole (3) (coffee)		Appelez-nous	-
5	989877		Plug, Hole (3) (new Avocado)		Appelez-nous	-
5	989876		Plug, Hole (3) (new Gold)		Appelez-nous	-
5	989195		Plug, Hole (3) (almond)		Appelez-nous	-
5	842031		Plug, Hole (3) (white)		Appelez-nous	-
6	836392		Leveler (2)		Appelez-nous	-
7	989931		Filler Grille (almond)		Appelez-nous	-
7	838535		Filler Grille (white)		Appelez-nous	-
7	989928		Filler, Grille (coffee)		Appelez-nous	-
7	989929		Filler, Grille (new Gold)		Appelez-nous	-
7	989930		Filler, Grille (new Avocado)		Appelez-nous	-
8	991992		Lock, Strike		Appelez-nous	-
9	489085		Screw, 8-22 X .312		Appelez-nous	-
10	945604		Grille, Exterior (almond)		Appelez-nous	-
10	945600		Grille, Exterior (white)		Appelez-nous	-
10	945601		Grille, Exterior (coffee)		Appelez-nous	-
10	945602		Grille, Exterior (new Gold)		Appelez-nous	-
10	945603		Grille, Exterior (new Avocado)		Appelez-nous	-
11	936129		Heater, Stile		Appelez-nous	-
12	935663		Clip, Retainer (10)		Appelez-nous	-
13	989068		Clip, Grille Retainer		Appelez-nous	-
14	548708		Guard, Timer		Appelez-nous	-
15	WP488729		Screw, 8 X 1/2   (Replaces: 486993)			Immediately	$ 7.01
16	549947		Box, Junction		Appelez-nous	-
17	W10822278		Timer, Defrost   (Replaces: 851160)			Immediately	$ 31.00
18	WP965173		Screw, 89 X 3/8   (Replaces: 487415)			Immediately	$ 9.65
19	WP944224		Support, Grille (2)   (Replaces: 944224)				$ 6.80
20	989895		Cover, Hinge (coffee)		Appelez-nous	-
20	842010		Cover, Hinge (white)		Appelez-nous	-
20	989897		Cover, Hinge (new Avocado)		Appelez-nous	-
20	989896		Cover, Hinge (new Gold)		Appelez-nous	-
20	989194		Cover, Hinge (almond)		Appelez-nous	-
21	547217		Connector, Screw-on		Appelez-nous	-
22	836151		Shim, Hinge		Appelez-nous	-
23	842038		Hinge, Top		Appelez-nous	-
25	836196		Shim, Hinge		Appelez-nous	-
26	WP487802		Washer   (Replaces: 488723)			Immediately	$ 7.12
27	836686		Hinge (bottom)		Appelez-nous	-
28	488949		Screw (repair)		Appelez-nous	-
28	589105		Screw, 10-32 X 3/4		Appelez-nous	-
29	836162		Tap Plate		Appelez-nous	-
30	488474		Screw, 8-32 X 3/8		Appelez-nous	-
31	548705		Plate, Timer		Appelez-nous	-
32	488424		Screw, 6-20 X 3/8 (2)		Appelez-nous	-
33	488624		Screw, 8 X 3/8 (2)		Appelez-nous	-
34	836372		Insert, Grille		Appelez-nous	-
35	546131		Bumper (2)		Appelez-nous	-
36	839861		Fitting, Drain		Appelez-nous	-
41	842250		Bracket, Pilot Light		Appelez-nous	-
42	653037		Cleat, Cord		Appelez-nous	-
43	488474		Screw, 8-32 X 3/8		Appelez-nous	-
45	530584		Light, Pilot		Appelez-nous	-
46	W11624204		Screw, 89 X 1/2   (Replaces: 486194)				$ 12.62
47	549538		Pilot Light Wire Assembly		Appelez-nous	-
48	850156		Guard, Fan		Appelez-nous	-
