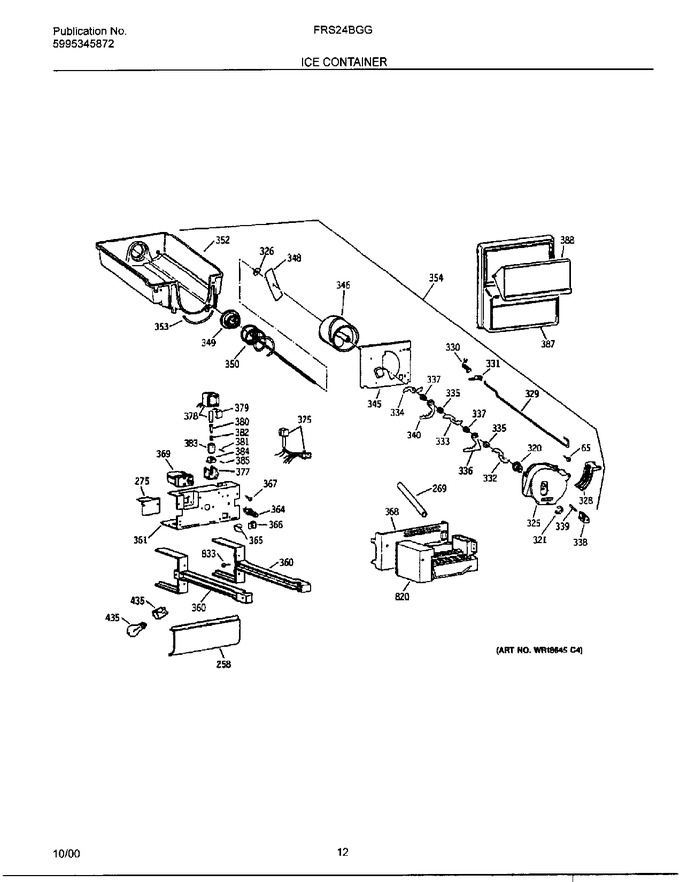

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 65 | 5304419380 | Screw,8-15a X 0.375 |
|
- | |||||
| 258 | 5304413829 | Shield-light,frzr |
|
- | |||||
| 269 | 5304406307 | Tube-water Fill,icemaker |
|
- | |||||
| 275 | 5304406498 | Cover-icemaker Plug |
|
- | |||||
| 320 | 5304406499 | Nut-auger |
|
- | |||||
| 321 | 5304406500 | Retainer,e-ring |
|
- | |||||
| 325 | 5304406502 | Housing-crusher |
|
- | |||||
| 326 | 5304406503 | Washer |
|
- | |||||
| 328 | 5304406504 | Spring-deflector |
|
- | |||||
| 328 | 5304406507 | Deflector-ice |
|
- | |||||
| 328 | 5304406506 | Pin-deflector |
|
- | |||||
| 329 | 5304406508 | Rod-disp Control,actuator Wire |
|
- | |||||
| 330 | 5304406509 | Spring-control Rod |
|
- | |||||
| 331 | 5304406510 | Retainer-cont Rod |
|
- | |||||
| 332 | 5304406511 | Blade-crusher,moving |
|
- | |||||
| 333 | 5304406512 | Blade-crusher,moving |
|
- | |||||
| 334 | 5304406513 | Blade-crusher,moving |
|
- | |||||
| 335 | 5304406514 | Spacer-blade,(2) |
|
- | |||||
| 336 | 5304406515 | Blade-crusher,fixed ,square |
|
- | |||||
| 337 | 5304406516 | Spacer-fixed Blade,(2) |
|
- | |||||
| 338 | 5304406517 | Spacer-fixed Blade,blade Rest |
|
- | |||||
| 339 | 5304406518 | Pin-spiral,blade Spacer |
|
- | |||||
| 340 | 5304406519 | Blade-crusher,fixed ,round |
|
- | |||||
| 345 | 5304406521 | Plate-disp Front |
|
- | |||||
| 346 | 5304406522 | Drum-ice Dispenser,helix |
|
- | |||||
| 348 | 5304406523 | Blade-disp Drive |
|
- | |||||
| 349 | 5304406524 | Cam-dispenser Drive,cup |
|
- | |||||
| 350 | 5304406525 | Auger-ice Dispenser,helix |
|
- | |||||
| 352 | 5304406526 | Container-ice,disp Ice Bucket |
|
- | |||||
| 353 | 5304406527 | Seal-ice Container |
|
- | |||||
| 360 | 5304413830 | Support-dispenser,rail/shelf Assy ,(2) |
|
- | |||||
| 361 | 5304413831 | Cover-motor |
|
- | |||||
| 364 | 5304406531 | Support,twist Mt ,rotation Stop |
|
- | |||||
| 365 | 5304406532 | Drive-auger,bar Drive |
|
- | |||||
| 366 | 5304406533 | Nut-drive,j Type |
|
- | |||||
| 367 | 5304406534 | Screw-motor Mtg,8-18 X 1/4 ,(5) |
|
- | |||||
| 368 | 5304406535 | Bracket-mounting,icemaker |
|
- | |||||
| 377 | 5304406538 | Guide-solenoid,saddle |
|
- | |||||
| 379 | 5304406540 | Shroud-solenoid |
|
- | |||||
| 380 | 5304406541 | Plunger-solenoid |
|
- | |||||
| 381 | 5304406542 | Pin-spiral,solenoid Collar |
|
- | |||||
| 382 | 5304406543 | Spring-solenoid,linkage |
|
- | |||||
| 383 | 5304406544 | Collar-solenoid |
|
- | |||||
| 384 | 5304406545 | Stirrup-solenoid |
|
- | |||||
| 385 | 5304406546 | Pin-spiral,sol Stirrup |
|
- | |||||
| 387 | 5304406547 | Cover-ice Container,front |
|
- | |||||
| 388 | 5304406548 | Door-access,ice Container |
|
- | |||||
| 435 | 316538904 | Lamp,40 W ,120 V ,(2/4) (Replaces: 5304406549) |
|
Immediately | $ 20.48 | ||||
| 435 | 5304416768 | Lamp,appliance ,60 W ,120 V ,(2) |
|
- | |||||
| 833 | 5304413832 | Screw,8-16 X 2.00 ,(2) |
|
- | |||||
| F354 | 5304413806 | Ice Dispenser Assy |
|
- | |||||
| F369 | 5304406536 | Motor-auger/crusher |
|
- | |||||
| F375 | 5304406537 | Wiring Harness,auger Motor |
|
- | |||||
| F378 | 5304406539 | Solenoid Arm Assy |
|
- | |||||
| F435 | 5304406581 | Socket-terminal,white |
|
- | |||||
| F435 | 5304406550 | Socket-light/lamp |
|
- | |||||
| F820 | 5304406551 | Ice Maker,crescent Cube |
|
- |
