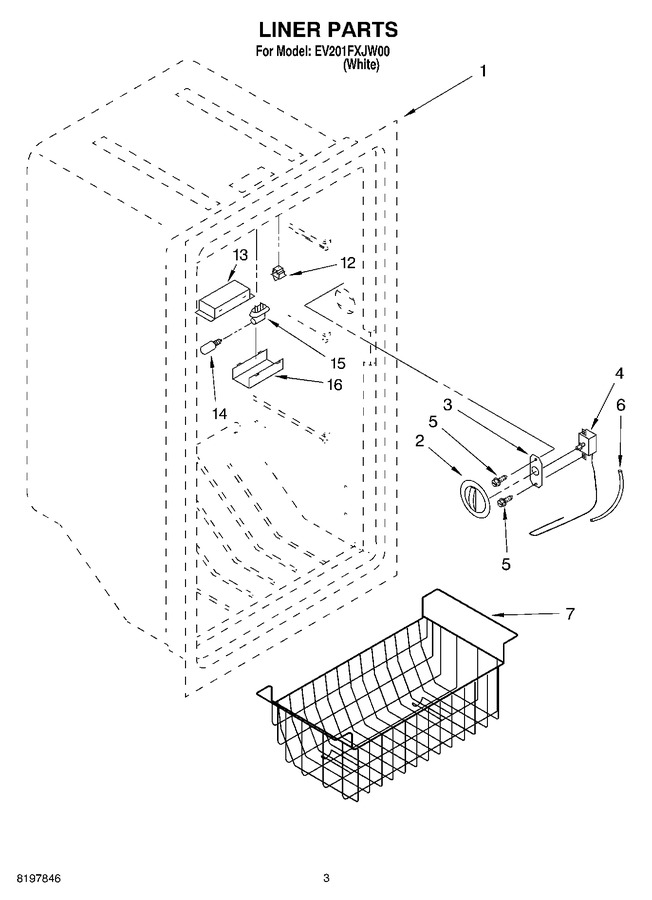

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	4390619		Control Knob		Appelez-nous	-
3	1-81154		Control Plate   (Replaces: 4357041)				$ 12.86
4	4390620		Thermostat		Appelez-nous	-
5	WPW10068250		Screw   (Replaces: 4357042)				$ 3.66
6	WP2196003		Tubing, Thermostat   (Replaces: 4356800)				$ 7.16
7	4390632		Basket		Appelez-nous	-
12	W11384469		Switch, Light   (Replaces: 4390513)			Immediately	$ 33.51
13	4390626		Bracket		Appelez-nous	-
14	W10873798		Bulb, Light   (Replaces: 4356311)			Immediately	$ 12.53
15	4356874		Socket, Lamp		Appelez-nous	-
16	4390615		Shield, Light		Appelez-nous	-
