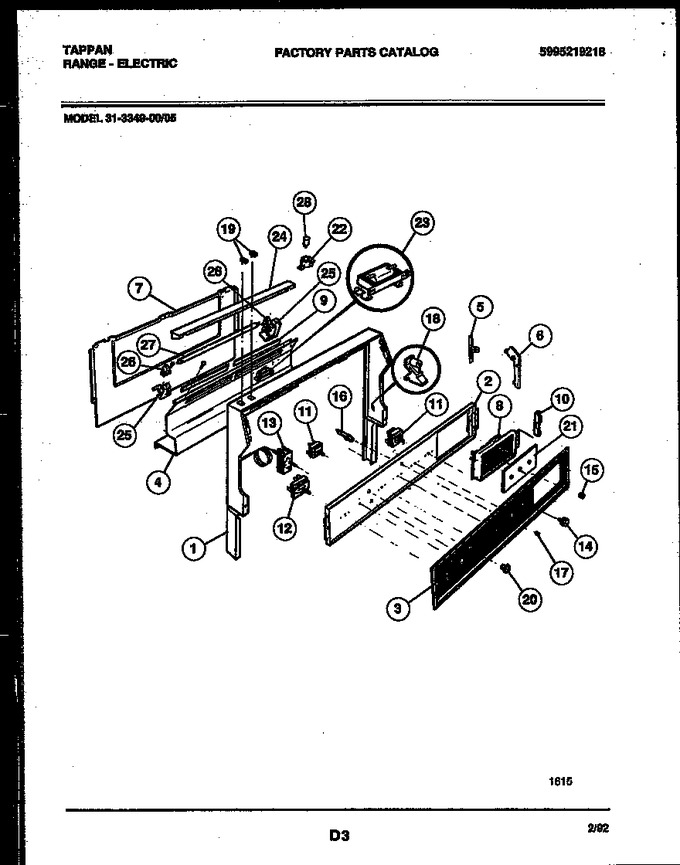

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3204843 | Trim-wrapper |
|
- | |||||
| 2 | 5303212662 | Plate - Inst Mtg |
|
- | |||||
| 3 | 3204752 | Panel - Control |
|
- | |||||
| 4 | 5303272390 | Trim-lower Spl-white |
|
- | |||||
| 5 | 3204753 | Trim - Glass Ret Lh |
|
- | |||||
| 6 | 3204746 | Cap-end Lh |
|
- | |||||
| 7 | 3131123 | Shield-b/g Rear |
|
- | |||||
| 8 | 3204766 | Clock |
|
- | |||||
| 9 | 3131145 | Glass, Work Light (2) |
|
- | |||||
| 10 | 3201700 | Retainer-cl. Gl. (2) |
|
- | |||||
| 11 | 3206430 | Switch-top Lg (2) |
|
- | |||||
| 12 | 3051316 | Switch-selector |
|
- | |||||
| 13 | 3202350 | Thermostat-oven |
|
- | |||||
| 14 | 316020700 | Knob-top Element (4) |
|
- | |||||
| 15 | 3131472 | Knob-clock (3) |
|
- | |||||
| 16 | 5303091462 | Indicator Light-oven |
|
- | |||||
| 17 | 5308037703 | Jewel-ind Ins (2) |
|
- | |||||
| 18 | 5303131237 | Support-backgrnd (2) |
|
- | |||||
| 19 | 5303208662 | Switch-rocker (2) |
|
- | |||||
| 20 | 3204745 | Bushing-cont Shaft |
|
- | |||||
| 21 | 3201695 | Glass-clock Lens |
|
- | |||||
| 22 | 5303282715 | Receptacle-starter |
|
- | |||||
| 23 | 5303051115 | Ballast |
|
- | |||||
| 24 | 3201738 | Shield-fluor Light |
|
- | |||||
| 25 | 3131576 | Bracket-fluor Light Mtg Lh |
|
- | |||||
| 26 | 3051222 | Receptacle - Fluor Light Lh |
|
- | |||||
| 27 | 3131275 | Bulb-fluor |
|
$ 49.40 | |||||
| 28 | 3206218 | Starter |
|
$ 54.08 | |||||
| 11A | 3206431 | Switch-top Sm (2) |
|
- | |||||
| 14A | 3204841 | Knob-selector |
|
- | |||||
| 14B | 3204749 | Knob - Thermostat |
|
- | |||||
| 16A | 5308037896 | Indicator Light |
|
$ 39.75 | |||||
| 17A | 3051224 | Retainer-lens (2) (non-illustrated) |
|
- | |||||
| 25A | 3131577 | Bracket-fluor Light Mtg Rh |
|
- | |||||
| 26A | 3051223 | Receptacle - Fluor Light Rh |
|
- | |||||
| 27A | 3131468 | Bracket-backguard (non-illustrated) |
|
- | |||||
| 5A | 3204754 | Trim - Glass Ret Rh |
|
- | |||||
| 6A | 3204747 | Cap-end Rh |
|
- |
