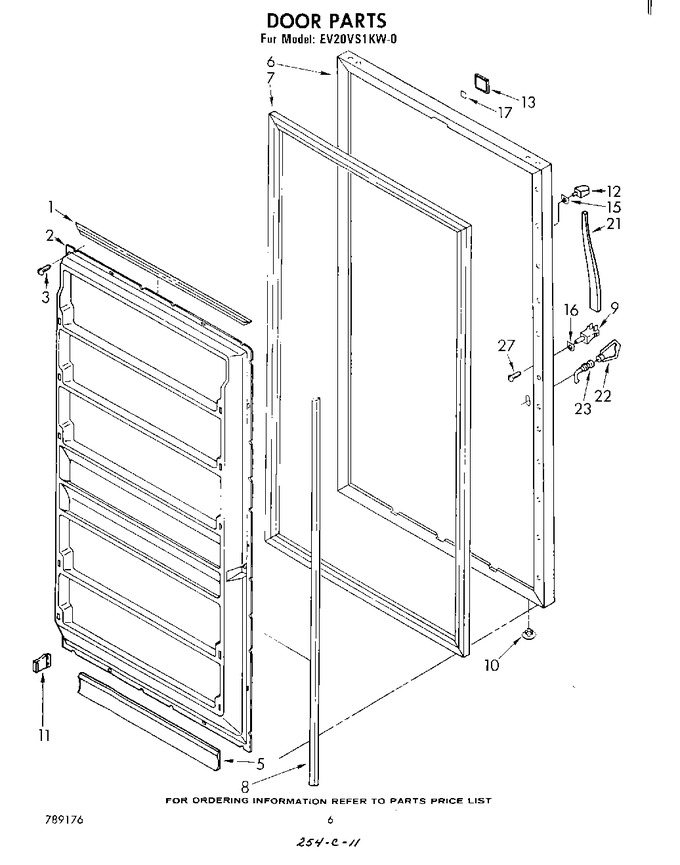

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 836118 | Retainer, Gasket (2) |
|
- | |||||
| 2 | 942677 | Panel, Interior Door |
|
- | |||||
| 3 | WP681414 | Screw, 10-12 X 3/8 (repair) (Replaces: 488552) |
|
Immediately | $ 7.07 | ||||
| 3 | W11624204 | Screw, 8 X 1/2 (Replaces: 486194) |
|
$ 12.62 | |||||
| 5 | 984900 | Trim, Shelf (5) |
|
- | |||||
| 6 | 942622 | Panel, Exterior Door (new Avocado) |
|
- | |||||
| 6 | 942623 | Panel, Exterior Door (almond) |
|
- | |||||
| 6 | 942621 | Panel, Exterior Door (new Gold) |
|
- | |||||
| 6 | 942620 | Panel, Exterior Door (coffee) |
|
- | |||||
| 6 | 942619 | Panel, Exterior Door (white) |
|
- | |||||
| 7 | 2188438A | Gasket, Magnetic (Replaces: 942678) |
|
- | |||||
| 8 | 836120 | Retainer, Side (2) |
|
- | |||||
| 9 | 982947 | Cap, Handle |
|
- | |||||
| 10 | 534927 | Plug, Hole (2) |
|
- | |||||
| 11 | WP849996 | End, Support & Trim (10) (Replaces: 943824) |
|
$ 6.81 | |||||
| 12 | 982948 | Cap, Handle |
|
- | |||||
| 13 | 942668 | Nameplate (freezer Alarm) |
|
- | |||||
| 15 | 941918 | Shim, Handle End |
|
- | |||||
| 16 | 941917 | Shim, Handle End |
|
- | |||||
| 17 | 991259 | Tape Strip |
|
- | |||||
| 21 | 982978 | Handle, Center |
|
- | |||||
| 22 | 941380 | Key |
|
- | |||||
| 23 | 941379 | Lock Assembly |
|
- | |||||
| 27 | 789176 | List, Parts |
|
- | |||||
| 27 | WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 16.12 | |||||
| 27 | 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | ||||
| 27 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | ||||
| 27 | 876370 | Kit, Insulation (5 Pcs. 3`` X 24`` X 48) (Replaces: 479976) |
|
$ 208.40 | |||||
| 27 | 511873 | Paint, Touch-up 1/2 Oz. (white Porcelain) |
|
$ 44.36 | |||||
| 27 | 511881 | Lacquer, Bright Aluminum (12 Oz. Spray Can) |
|
$ 278.35 | |||||
| 27 | 606755 | Bag, Insulation (36-5/8`` X 46``) |
|
$ 70.61 | |||||
| 27 | WP279368 | Cement, Insulation (1 Oz.) (Replaces: 797403) |
|
Immediately | $ 99.82 | ||||
| 27 | 799833 | Kit, Evaporator Repair (aluminum Epoxy) |
|
- | |||||
| 27 | 656493 | Booklet, Freezer |
|
- | |||||
| 27 | 942663 | Use & Care Guide |
|
- | |||||
| 27 | 946666 | Tech Sheet |
|
- | |||||
| 27 | 946734 | Energy Guide |
|
- | |||||
| 27 | WP505587 | Sealer, Mastic (1 Qt.). (Replaces: 505587) |
|
Immediately | $ 156.56 | ||||
| 27 | 488818 | Screw |
|
$ 42.82 | |||||
| 27 | DD81-03944A | Paint, Touch-up 1/2 Oz. (coffee) (Replaces: 72108) |
|
$ 98.33 | |||||
| 27 | DD81-03471A | Paint, Touch-up 1/2 Oz. (avocado) (Replaces: 72109) |
|
$ 54.25 | |||||
| 27 | DD81-03523A | Paint, Touch-up 1/2 Oz. (harvest Gold) (Replaces: 72110) |
|
$ 124.07 | |||||
| 27 | 799340 | Enamel, Black (1 Qt. Uncut) |
|
- | |||||
| 27 | 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | |||||
| 27 | 799351 | Thinner, Blend (1 Gal.) |
|
- | |||||
| 27 | 261887 | Enamel, Coffee (1 Qt. Uncut) |
|
- | |||||
| 27 | 261889 | Enamel, New Avocado (1 Qt. Uncut) |
|
- | |||||
| 27 | 261891 | Enamel, New Gold (1 Qt. Uncut) |
|
- | |||||
| 27 | 978883 | Enamel, Almond (1 Qt. Uncut) |
|
- | |||||
| 27 | 212643 | Sealer, Gum (22 Pcs. 3/16`` X 7``) |
|
Immediately | $ 73.92 | ||||
| 350930 | Xenamel, White (12 Oz. Spray Can) (Replaces: 799343) |
|
Immediately | $ 34.39 | |||||
| 261888 | Xenamel, New Avocado (13 Oz. Spray Can) |
|
- | ||||||
| 261886 | Xenamel, Coffee (13 Oz. Spray Can) |
|
- | ||||||
| 350942 | Xprimer, White (12 Oz. Spray Can) (Replaces: 206922) |
|
$ 80.69 | ||||||
| 206925 | Xleveler, Enamel (12 Oz. Spray Can) |
|
- | ||||||
| 350956 | Xenamel, Almond (13 Oz. Spray Can) |
|
$ 46.30 | ||||||
| 285006 | Enamel, Black (12 Oz. Spray Can) (Replaces: 799339) |
|
Immediately | $ 51.34 | |||||
| 261890 | Xenamel, New Gold (13 Oz. Spray Can) |
|
- |
