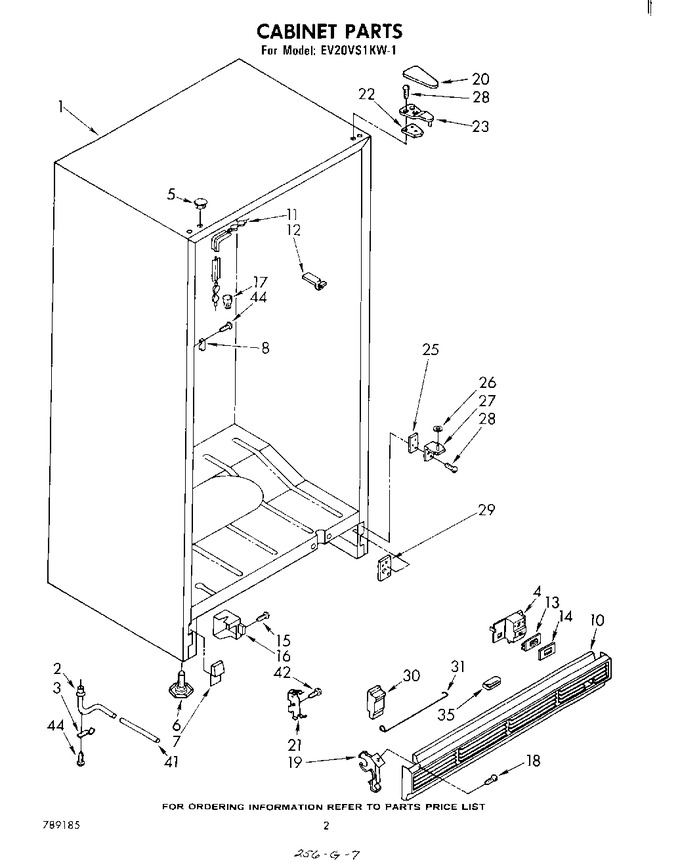

02 - Cabinet
03 - Liner
04 - Door , Lit/optional
05 - Unit
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Cabinet (not A Serviceable Part) |
|
- | |||||
| 2 | 842257 | Extension, Fitting |
|
- | |||||
| 3 | 841648 | Clip, Drain |
|
- | |||||
| 4 | 941863 | Alarm Assembly |
|
- | |||||
| 5 | 989195 | Plug, Hole (3) (almond) |
|
- | |||||
| 5 | 989877 | Plug, Hole (3) (new Avocado) |
|
- | |||||
| 5 | 989876 | Plug, Hole (3) (new Gold) |
|
- | |||||
| 5 | 989875 | Plug, Hole (3) (coffee) |
|
- | |||||
| 5 | 842031 | Plug, Hole (3) (white) |
|
- | |||||
| 6 | 836392 | Leveler (2) |
|
- | |||||
| 7 | 838535 | Filler Grille (white) |
|
- | |||||
| 7 | 989928 | Filler, Grille (coffee) |
|
- | |||||
| 7 | 989931 | Filler Grille (almond) |
|
- | |||||
| 7 | 989929 | Filler, Grille (new Gold) |
|
- | |||||
| 7 | 989930 | Filler, Grille (new Avocado) |
|
- | |||||
| 8 | 991992 | Strike, Lock |
|
- | |||||
| 10 | 945600 | Grille, Exterior (white) |
|
- | |||||
| 10 | 945604 | Grille, Exterior (almond) |
|
- | |||||
| 10 | 945603 | Grille, Exterior (new Avocado) |
|
- | |||||
| 10 | 945602 | Grille, Exterior (new Gold) |
|
- | |||||
| 10 | 945601 | Grille, Exterior (coffee) |
|
- | |||||
| 11 | 936129 | Heater, Stile |
|
- | |||||
| 12 | 935663 | Retainer Clip (10) |
|
- | |||||
| 13 | 985655 | Escutcheon, Freezer Alarm |
|
- | |||||
| 14 | 941874 | Insert, Escutcheon |
|
- | |||||
| 15 | WP488729 | Screw, 8 X 1/2 (Replaces: 486993) |
|
Immediately | $ 7.01 | ||||
| 16 | 549947 | Box, Junction |
|
- | |||||
| 17 | 850145 | Connector, Screw-on |
|
- | |||||
| 18 | 489085 | Screw, 8-22 X 5/16 |
|
- | |||||
| 19 | WP944224 | Support, Grille (2) (Replaces: 944224) |
|
$ 6.80 | |||||
| 20 | 989194 | Cover, Hinge (almond) |
|
- | |||||
| 20 | 842010 | Cover, Hinge (white) |
|
- | |||||
| 20 | 989896 | Cover, Hinge (new Gold) |
|
- | |||||
| 20 | 989897 | Cover, Hinge (new Avocado) |
|
- | |||||
| 20 | 989895 | Cover, Hinge (coffee) |
|
- | |||||
| 21 | 989068 | Clip, Grille Retainer |
|
- | |||||
| 22 | 836151 | Shim, Hinge |
|
- | |||||
| 23 | 842038 | Hinge Assembly, Top |
|
- | |||||
| 25 | 836196 | Shim, Hinge |
|
- | |||||
| 26 | WP487802 | 7/32 Repair (Replaces: 488184) |
|
Immediately | $ 7.12 | ||||
| 26 | WP487802 | Washer (Replaces: 488723) |
|
Immediately | $ 7.12 | ||||
| 26 | WP487576 | 1/16 Repair (Replaces: 487576) |
|
Immediately | $ 8.89 | ||||
| 27 | 836686 | Hinge (bottom) |
|
- | |||||
| 28 | 488949 | Screw, 12-14 X 3/4 (repair) |
|
- | |||||
| 28 | WP999367 | Screw, 10-32 X 23/32 (Replaces: 489105) |
|
$ 7.07 | |||||
| 29 | 836162 | Tap Plate |
|
- | |||||
| 30 | 836372 | Insert, Air Baffle |
|
- | |||||
| 31 | 850156 | Guard, Fan |
|
- | |||||
| 35 | 546131 | Bumper (2) |
|
- | |||||
| 41 | 842260 | Drain Hose |
|
- | |||||
| 42 | W11624204 | Screw, 8 Bx 1/2 (Replaces: 486194) |
|
$ 12.62 | |||||
| 44 | 488474 | Screw, 8-32 X 3/8 |
|
- |
