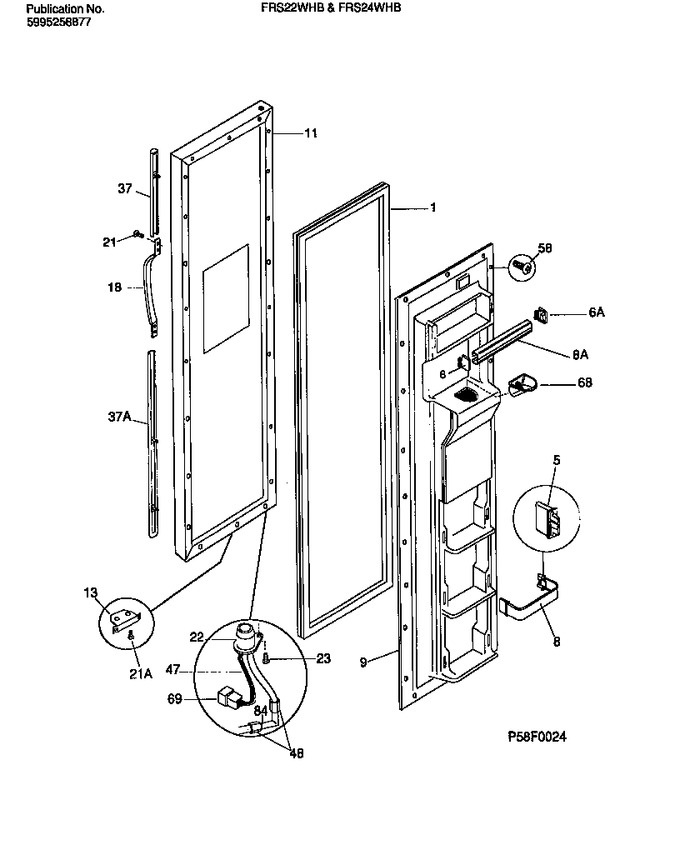

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 215734303 | Gasket-frzr Door, Almond, Magnetic |
|
- | |||||
| 5 | 5303288950 | Support-door Rack, Rh/lh |
|
$ 51.19 | |||||
| 6 | 5303297813 | Support-door Rack, Lh |
|
$ 49.77 | |||||
| 8 | 215120600 | Rack-door, W/ End Caps |
|
- | |||||
| 9 | 215201501 | Panel-inner Door, Frzr |
|
- | |||||
| 11 | 218069511 | Panel-frzr Door, Almond, W/ Foam Insulation |
|
- | |||||
| 13 | 5303289522 | Door Stop |
|
$ 40.17 | |||||
| 18 | 215826402 | Handle-door , Almond |
|
- | |||||
| 21 | 218843801 | Screw (Replaces: 5303001001) |
|
$ 14.41 | |||||
| 22 | 215615300 | Brushing-door, Bronze |
|
- | |||||
| 23 | 5303001020 | Screw, Cr Flat Head, 8-32(d) X 1/2 |
|
- | |||||
| 37 | 215867005 | Trm-hndl, 14.12``, Putty, Uppr, W/chrm Bnd, And Snap Lock |
|
- | |||||
| 47 | 215294000 | Harness-wiring,frzr Door |
|
- | |||||
| 48 | 5308000200 | Nut, 7/16 X 20, Nylon |
|
- | |||||
| 58 | 5308002748 | Screw |
|
- | |||||
| 68 | 218036400 | Chute-ice |
|
- | |||||
| 69 | 215341900 | Connector-door Harn |
|
- | |||||
| 84 | 5308010289 | Elbow-water Tube |
|
$ 45.84 | |||||
| *93320 | 215598900 | Washer-flat, .691 X 1 X .05, Zinc, I&w Hinge Brkt |
|
- | |||||
| *93329 | 5303917276 | Insulation-door, Fiberglass, (bulk) |
|
$ 330.91 | |||||
| 21A | 215218600 | Screw-door Stop Mtg,torx Flat Head 10-16 X 3/4 |
|
- | |||||
| 37A | 215867002 | Trm-hndl, 29.84``, Dk Putty, Lwr, W/chm Bnd, And Snp Lcks |
|
- | |||||
| 6A | 5303297814 | Support-door Rack, Rh |
|
$ 52.50 | |||||
| 8A | 215474025 | Rack-door |
|
- |
