SELECT A DIAGRAM

02 - Cabinet


03 - Liner


04 - Door , Lit/optional

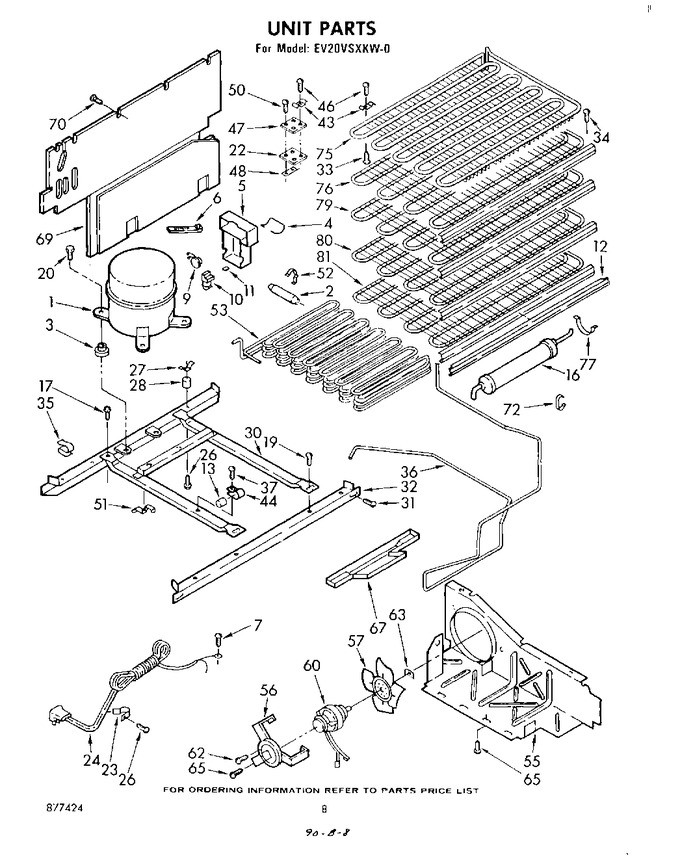

05 - Unit


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	464064		Compressor		Appelez-nous	-
2	W10843121		Drier   (Replaces: 548504)			Immediately	$ 47.31
3	547283		Grommet (4)		Appelez-nous	-
4	531318		Spring		Appelez-nous	-
5	549945		Case		Appelez-nous	-
6	851095		Strap, Tube		Appelez-nous	-
7	488474		Screw, 8-32 X 3/8		Appelez-nous	-
9	549041		Overload		Appelez-nous	-
10	989662		Relay		Appelez-nous	-
11	547272		Bumper		Appelez-nous	-
12	934993		Trim, Shelf Front		Appelez-nous	-
13	510769		Dampener (2)		Appelez-nous	-
16	987309		Heater & Tube Assembly		Appelez-nous	-
17	303776		Screw, 8-32 X .312 (ground)   (Replaces: 488879)		Appelez-nous	-
19	489340		Screw, 5/16-18 X 5/8   (Replaces: 488683)		Appelez-nous	-
20	488400		Screw, 1/4-28 X 1`` (4)		Appelez-nous	-
22	851289		Plate, Thermostat		Appelez-nous	-
23	549193		Clamp				$ 12.05
24	850626		Cord, Service		Appelez-nous	-
26	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 12.62
27	548738		Clamp (4)		Appelez-nous	-
28	548737		Grommet (4)		Appelez-nous	-
30	548654		Frame		Appelez-nous	-
31	488454		Screw, 1/4-28 X 1/2		Appelez-nous	-
32	941697		Rail, Front		Appelez-nous	-
33	489056		Screw, 8 X 1-3/8		Appelez-nous	-
34	WP308685		Screw, 10-16 X 1/2   (Replaces: 487942)			Immediately	$ 7.08
35	548745		Clip (2)		Appelez-nous	-
36	943342		Exchanger, Heat		Appelez-nous	-
37	WPW10141625		Screw, 8-32 X 1/2   (Replaces: 488197)				$ 19.04
43	510614		Header Clamp Plate (2)		Appelez-nous	-
44	510716		Clamp (2)		Appelez-nous	-
46	488054		Screw, 8-32 X 7/16		Appelez-nous	-
47	851290		Shim, Thermostat Plate		Appelez-nous	-
48	510754		Clip, Thermostat		Appelez-nous	-
50	488436		Screw, 8-32 X 5/8		Appelez-nous	-
51	548744		Clip (2)		Appelez-nous	-
52	548508		Clamp		Appelez-nous	-
53	481846		Precooler & Condenser Assembly		Appelez-nous	-
55	851979		Baffle, Air		Appelez-nous	-
56	548695		Bracket		Appelez-nous	-
57	989524		Blade, Fan		Appelez-nous	-
60	833697		Motor, Morril (includes Illus. 62 & 63)   (Replaces: 851445)			Immediately	$ 79.34
62	488868		Screw (3)		Appelez-nous	-
63	WP486692		Nut, Speed   (Replaces: 486692)				$ 7.04
65	488624		Screw, 8 X 3/8		Appelez-nous	-
67	989269		Pan, Drip		Appelez-nous	-
69	850457		Cover		Appelez-nous	-
70	WPW10141645		Screw, 8 X 1/2   (Replaces: 489084)				$ 6.90
72	851332		Clip		Appelez-nous	-
75	987302		Shelf, Evaporator (top)		Appelez-nous	-
76	987301		Shelf, Evaporator (2nd)		Appelez-nous	-
77	513529		Clamp, Header		Appelez-nous	-
79	987300		Shelf, Evaporator (3rd)		Appelez-nous	-
80	987299		Shelf, Evaporator (4th)		Appelez-nous	-
81	987298		Shelf, Evaporator (bottom)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
