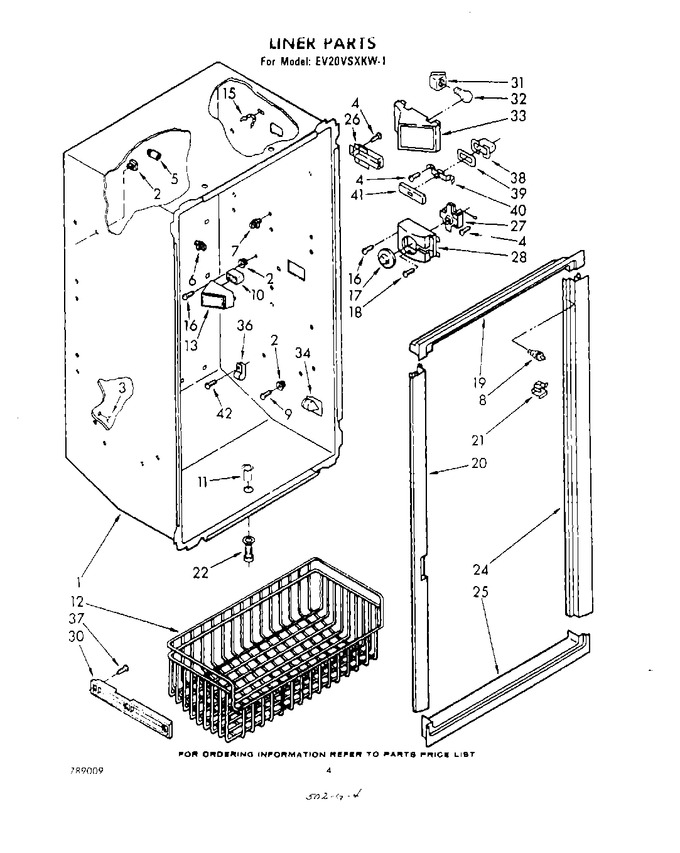

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	842339		Grommet		Appelez-nous	-
3	519890		Plug, Hole		Appelez-nous	-
4	WP489128		Screw, 8-32 X .375   (Replaces: 488500)				$ 9.79
5	838186		Spacer (3)		Appelez-nous	-
6	513002		Stud, Shelf (8)		Appelez-nous	-
7	517151		Stud, Hook (8)		Appelez-nous	-
7	941306		Repair		Appelez-nous	-
8	549191		Switch, Light		Appelez-nous	-
9	WP488729		Screw, 8 X 1/2a   (Replaces: 488783)			Immediately	$ 7.01
10	941859		Sensor Assembly		Appelez-nous	-
11	934607		Ferrule, Drain		Appelez-nous	-
12	842200		Basket, Slide Out		Appelez-nous	-
13	941875		Housing, Sensor		Appelez-nous	-
15	533998		Speed Clip		Appelez-nous	-
16	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 12.62
17	981928		Knob, Thermostat		Appelez-nous	-
18	WP965173		Screw, 8-18 X 3/8   (Replaces: 488110)			Immediately	$ 9.65
19	839830		Breaker, Top		Appelez-nous	-
20	839831		Breaker, L.s.		Appelez-nous	-
21	939139		Clip		Appelez-nous	-
22	842256		Fitting, Drain		Appelez-nous	-
24	836635		Breaker, R.s.		Appelez-nous	-
25	839829		Breaker, Bottom		Appelez-nous	-
26	836553		Cover, Insulation		Appelez-nous	-
27	VF3		Thermostat & Barrier Assembly   (Replaces: 851703)				$ 38.40
28	843953		Escutcheon, Thermostat		Appelez-nous	-
30	653670		Track, Shelf (l.s.)		Appelez-nous	-
30	653669		Track, Shelf (r.s.)		Appelez-nous	-
31	4387478		Socket Assembly   (Replaces: 851067)			Immediately	$ 99.14
32	8009		Bulb, Light   (Replaces: 527949)			Immediately	$ 16.80
33	848158		Shield, Light		Appelez-nous	-
34	839826		Cover, Tube Entry		Appelez-nous	-
36	488937		Clamp, Tube		Appelez-nous	-
37	W11693756		Screw, 8 X 5/8 (6)   (Replaces: 487042)			Immediately	$ 12.65
38	845051		Container, Switch		Appelez-nous	-
39	845052		Gasket		Appelez-nous	-
40	845049		Switch, Power Saver		Appelez-nous	-
41	934924		Escutcheon, Switch		Appelez-nous	-
42	WP488729		Screw, 8 X 1/2   (Replaces: 487909)			Immediately	$ 7.01
