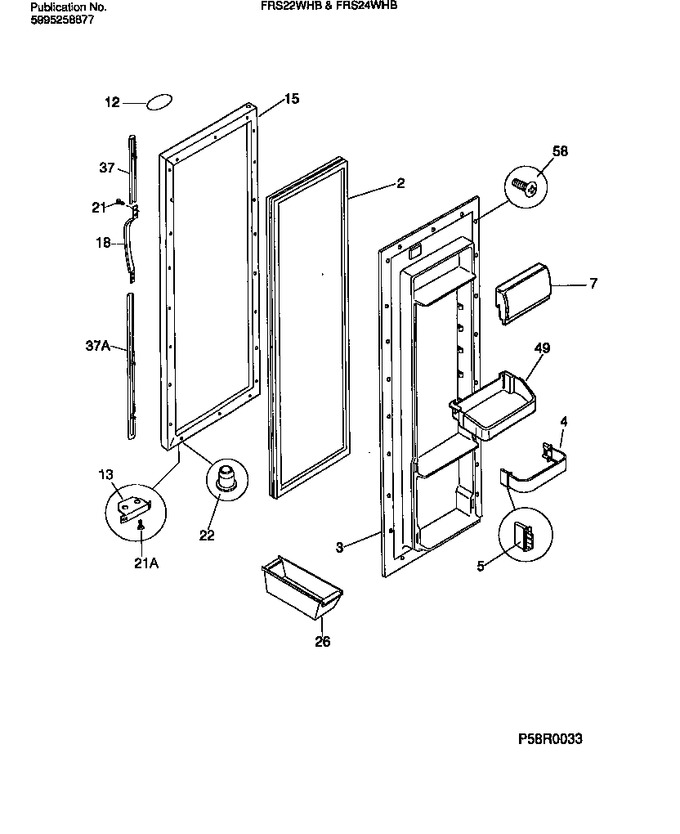

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 215734314 | Gasket-refr Door, White, Magnetic |
|
$ 243.34 | |||||
| 3 | 215390401 | Panel-inner Door,refr |
|
- | |||||
| 4 | 215120400 | Rack-door, W/end Caps |
|
$ 113.56 | |||||
| 5 | 5303288950 | Support-door Rack, Rh/lh |
|
$ 51.19 | |||||
| 7 | 5303304563 | Door-dairy |
|
- | |||||
| 12 | 215008601 | Nameplate Assy, White |
|
- | |||||
| 13 | 5303289522 | Door Stop |
|
$ 40.17 | |||||
| 15 | 218069301 | Panel-refr Door, White, W/foam Insulation |
|
- | |||||
| 18 | 215826401 | Handle-door ,white |
|
$ 192.78 | |||||
| 21 | 218843801 | Screw (Replaces: 5303001001) |
|
$ 14.41 | |||||
| 22 | 5303289320 | Bearing-hinge |
|
$ 19.69 | |||||
| 26 | 3204522 | Container-egg |
|
$ 98.33 | |||||
| 37 | 215867004 | Trm-hndl, 14.12``, Wht, Uppr, W/ Chrm, And Snap Lock |
|
- | |||||
| 49 | 215441601 | Bin-door, Gallon |
|
- | |||||
| 58 | 5308002748 | Screw |
|
- | |||||
| *93321 | 5303917276 | Instulation-door, Fiberglass, (bulk) |
|
$ 330.91 | |||||
| 21A | 215218600 | Screw-door Stop Mtg,torx Flat Head 10-16 X 3/4 |
|
- | |||||
| 37A | 215867001 | Trm-hndl, 29.84, White, Lwr,w/ Chrme Bnd, And Snap Locks |
|
- |
