New Model Search:

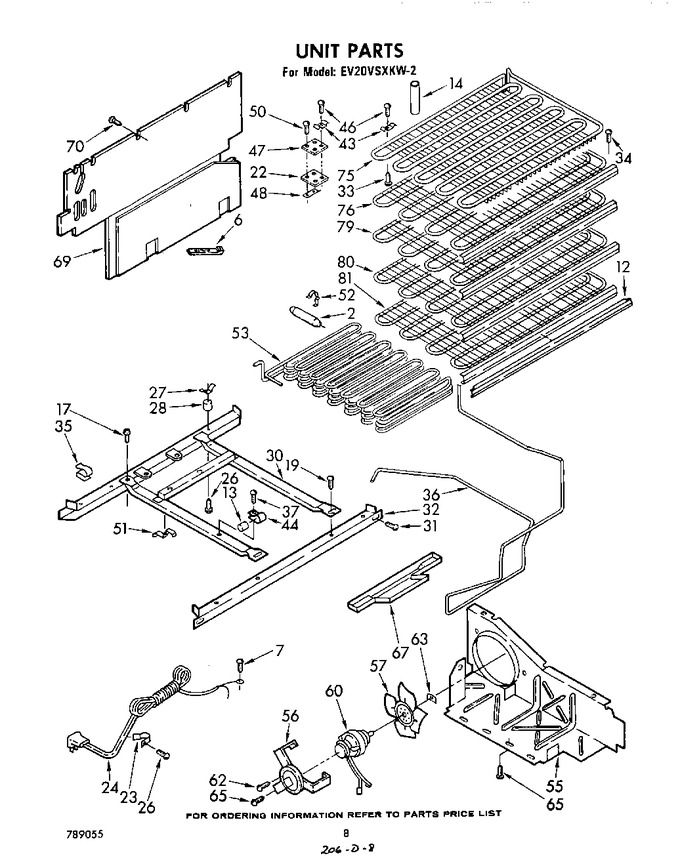

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10439652 | Compressor (Replaces: 702217) |
|
$ 379.03 | |||||
| 2 | W10843121 | Dryer (Replaces: 945424) |
|
Immediately | $ 47.31 | ||||
| 3 | 547283 | Grommet (4) |
|
- | |||||
| 4 | 943499 | Spring (used W/original Compressor) |
|
- | |||||
| 5 | 943496 | Case (used W/original Compressor) |
|
- | |||||
| 6 | 851095 | Strap, Tube |
|
- | |||||
| 7 | 488474 | Screw, 8-32 X 3/8 |
|
- | |||||
| 9 | 943492 | Overload (used W/ Original Compressor) |
|
- | |||||
| 10 | 945431 | Relay (used W/original Compressor) |
|
- | |||||
| 12 | 934993 | Trim, Shelf Front |
|
- | |||||
| 13 | 510769 | Dampener (2) |
|
- | |||||
| 14 | 946560 | Cover (1) |
|
- | |||||
| 14 | 941385 | Cover, Connecting Line (3) |
|
- | |||||
| 15 | 943494 | Spring, Overload (used W/original Compressor) |
|
- | |||||
| 17 | 303776 | Screw, 8-32 X .312 (ground) (Replaces: 488879) |
|
- | |||||
| 19 | 489340 | Screw, 5/16-18 X 5/8 (Replaces: 488683) |
|
- | |||||
| 20 | 488400 | Screw, 1/4-28 X 1`` (4) |
|
- | |||||
| 22 | 851289 | Plate, Thermostat |
|
- | |||||
| 23 | 549193 | Clamp |
|
$ 12.05 | |||||
| 24 | 850626 | Cord, Service |
|
- | |||||
| 26 | W11624204 | Screw, 8 X 1/2 (Replaces: 486194) |
|
$ 12.62 | |||||
| 27 | 548738 | Clamp (4) |
|
- | |||||
| 28 | 943447 | Grommet (4) |
|
- | |||||
| 30 | 945457 | Frame |
|
- | |||||
| 31 | 488454 | Screw, 1/4-28 X 1/2 |
|
- | |||||
| 32 | 941697 | Rail, Front |
|
- | |||||
| 33 | 489056 | Screw, 8 X 1-3/8 |
|
- | |||||
| 34 | WP308685 | Screw, 10-16 X 1/2 (Replaces: 487942) |
|
Immediately | $ 7.08 | ||||
| 35 | 548745 | Clip (2) |
|
- | |||||
| 36 | 946532 | Exchanger, Heat |
|
- | |||||
| 37 | WPW10141625 | Screw, 8-32 X 1/2 (Replaces: 488197) |
|
$ 19.04 | |||||
| 43 | 510614 | Header Clamp Plate (2) |
|
- | |||||
| 44 | 510716 | Clamp (2) |
|
- | |||||
| 46 | 488054 | Screw, 8-32 X 7/16 |
|
- | |||||
| 47 | 851290 | Shim, Thermostat Plate |
|
- | |||||
| 48 | 510754 | Clip, Thermostat |
|
- | |||||
| 50 | 488436 | Screw, 8-32 X 5/8 |
|
- | |||||
| 51 | 548744 | Clip (2) |
|
- | |||||
| 52 | 548508 | Clamp |
|
- | |||||
| 53 | 943480 | Precooler & Condenser Assembly |
|
- | |||||
| 55 | 851979 | Baffle, Air |
|
- | |||||
| 56 | 548695 | Bracket |
|
- | |||||
| 57 | 989524 | Blade, Fan |
|
- | |||||
| 60 | R1211 | Motor, Morril (includes Illus. 62 & 63) (Replaces: 851618) |
|
$ 131.05 | |||||
| 62 | 488868 | Screw (3) |
|
- | |||||
| 63 | WP486692 | Nut, Speed (Replaces: 486692) |
|
$ 7.04 | |||||
| 65 | 488624 | Screw, 8 X 3/8 |
|
- | |||||
| 67 | 945572 | Pan, Drip |
|
- | |||||
| 69 | 850457 | Cover |
|
- | |||||
| 70 | WPW10141645 | Screw, 8 X 1/2 (Replaces: 489084) |
|
$ 6.90 | |||||
| 75 | 987302 | Shelf, Evaporator (top) |
|
- | |||||
| 76 | 946522 | Shelf, Evaporator (2nd) |
|
- | |||||
| 79 | 946524 | Shelf, Evaporator (3rd) |
|
- | |||||
| 80 | 946526 | Shelf, Evaporator (4th) |
|
- | |||||
| 81 | 946528 | Shelf, Evaporator (bottom) |
|
- | |||||
| 82 | 549500 | Relay (used W/service Compressor) |
|
- | |||||
| 83 | 936073 | Overload (used W/service Compressor) |
|
- | |||||
| 84 | 549336 | Cover (used W/service Compressor) |
|
- | |||||
| 85 | 549342 | Strap (used W/service Compressor) |
|
- | |||||
| 86 | 549086 | Spring, Overload (used W/service Compressor) |
|
- |
