SELECT A DIAGRAM
01 - Body

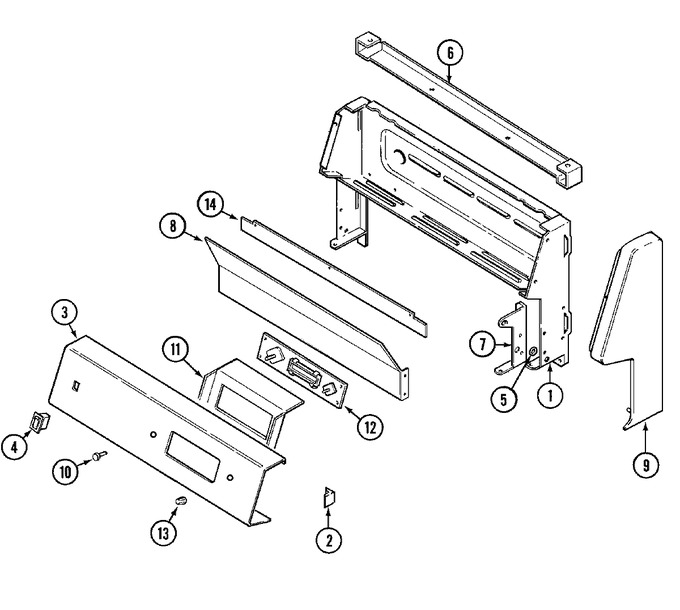

02 - Control Panel
03 - Door/drawer (ser. Pre. 12)
04 - Door/drawer (series 01)
05 - Gas Control
06 - Oven/base
07 - Top Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4001F097-51 | Housing, Control Panel | 01 |
|
- | ||||
| 2 | WP59002061 | Screw, Switch (Replaces: 7101P148-60) | 01 |
|
$ 6.98 | ||||
| 2 | 8010P083-60 | Spacer | 01 |
|
- | ||||
| 3 | 4851S084-59 | Panel, Control | 01 |
|
- | ||||
| 3 | 4851S086-59 | Panel, Assy (blk) | 01 |
|
- | ||||
| 4 | 7403P067-60 | Switch, Rocker (blk) | 01 |
|
$ 91.35 | ||||
| 5 | WP3195558 | Nut, Speed (Replaces: 7103P129-60) | 01 |
|
$ 7.68 | ||||
| 6 | 4001F064-51 | Extension, Control Panel | 01 |
|
- | ||||
| 7 | 3418A087-34 | Hinge, Main Top (rt) | 01 |
|
- | ||||
| 7 | 3418A088-34 | Hinge, Main Top (lt) | 01 |
|
- | ||||
| 8 | 3604F188-09 | Shield, Flue | 01 |
|
- | ||||
| 9 | 7726P050-60 | End Cap (lt-blk) | 01 |
|
- | ||||
| 9 | 7726P046-60 | End Cap (rt-blk) | 01 |
|
- | ||||
| 10 | 7711P172-60 | Knob, Clock (blk) | 01 |
|
$ 23.55 | ||||
| 11 | 8004P031-60 | Support | 01 |
|
- | ||||
| 11 | 3801F236-45 | Bracket, Clock | 01 |
|
- | ||||
| 12 | WP8312P015-60 | Shaft, Bit Generator (Replaces: 8312P015-60) | 01 |
|
$ 0.81 | ||||
| 12 | 7602P095-60 | Clock | 01 |
|
- | ||||
| 13 | 7711P171-60 | Knob, Clock (button-blk) | 01 |
|
$ 19.90 | ||||
| 14 | 8036P003-60 | Shield, Sight | 01 |
|
- | ||||
| 17 | 5180D138-60 | Harness, Control Panel | 01 |
|
- | ||||
| 18 | 8113P043-60 | Manual, Use & Care | 01 |
|
- | ||||
| 19 | 16000329 | Guide, Quick Ref. - Magic Chef | 01 |
|
- |
