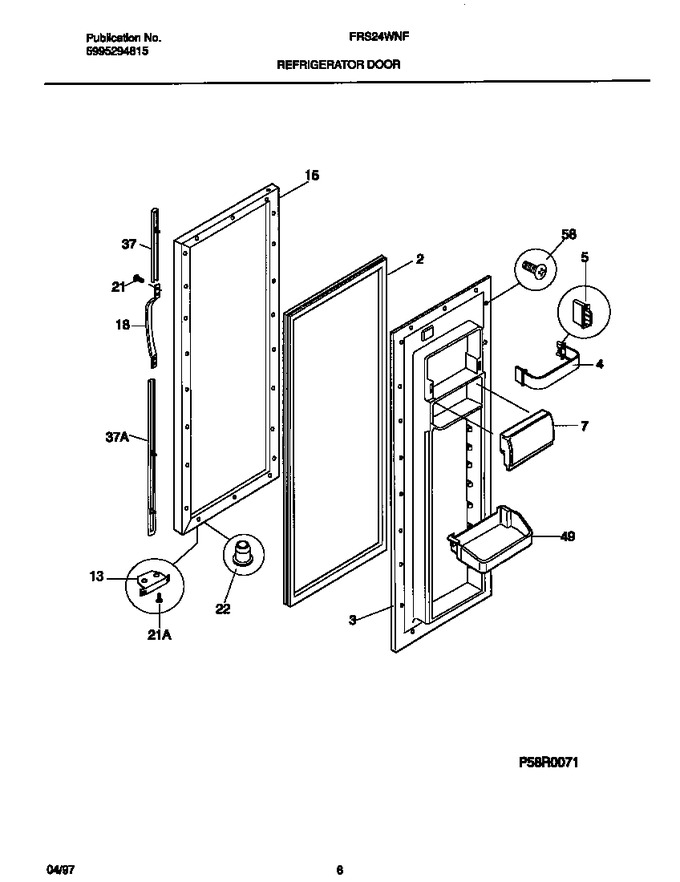

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	215734314		Gasket-refr Door, White, Magnetic				$ 243.34
3	5303296572		Panel, Inner Door, Refr		Appelez-nous	-
4	215120402		Rack-door, W/end Caps		Appelez-nous	-
5	5303288950		Support-door Rack, Rh/lh				$ 51.19
7	5303309825		Door-dairy				$ 174.41
13	5303289522		Door Stop				$ 40.17
15	5303917498		Panel-refr Door, White, W/foam Insulatn		Appelez-nous	-
18	297311201		Handle-door, White   (Replaces: 218762701)			Immediately	$ 80.60
21	218578600		Screw-door Stop Mtg, Phl Truss Hd, 10-16 X 3/4				$ 8.08
21	218843801		Screw   (Replaces: 5303001001)				$ 14.41
22	5303289320		Bearing-hinge				$ 19.69
37	215867053		Trim-handle, White, Lower, W/chrome Band, And Snap Locks				$ 70.72
37	215867055		Trim-handle, White, Upper, W/chrome Band, And Snap Lock				$ 51.14
49	215441606		Bin-door		Appelez-nous	-
58	218749600		Screw, 10 Pan Head, 8-18 X 0.500				$ 5.15
*78803	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
37A	215782300		Lock-handle Trim, Snap-in (not Illustrated)				$ 34.49
37B	215940700		Lock-handle Trim, Stick-on (not Illustrated)		Appelez-nous	-
37C	218676001		Band-decorative, Chrome (not Illustrated)				$ 36.17
