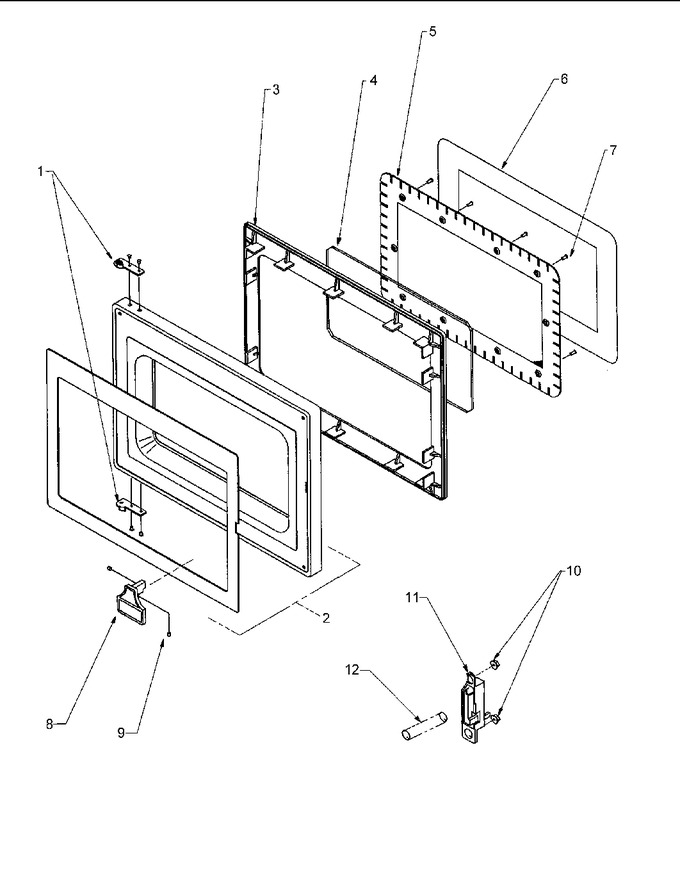

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | R0163252 | Hinge Asy Kit |
|
- | |||||
| 2 | R0163257 | Outer Door Assy. |
|
- | |||||
| 3 | M55D18 | Door Filler Kit |
|
- | |||||
| 4 | M70D246 | Outer Window Kit |
|
- | |||||
| 5 | R0163255 | Inner Door Kit |
|
- | |||||
| 6 | 10785001 | Window, Inner Door |
|
- | |||||
| 7 | WP8281236 | No.8 Ab X 3/8`` Screw (Replaces: 5149-V) |
|
$ 6.80 | |||||
| 8 | 12066801 | Handle-door |
|
- | |||||
| 9 | 5051032202 | Set Screw No.10 X .25 |
|
- | |||||
| 10 | 5015-T | No.10-24 Flange Whiz-lk Nut |
|
- | |||||
| 11 | R0163256 | Door Latch Kit |
|
- | |||||
| 12 | 41205P01 | Spring, Door |
|
- |
